Name: Trailer Tow Hitch For 78-95 Chevy G10 20 30 GMC G1500 2500 3500 w/ 4 Bike Carrier Rack
Brand: Draw-Tite
Price: 423.33 USD
Availability: InStock

Trailer Tow Hitch For 78-95 Chevy G10 20 30 GMC G1500 2500 3500 w/ 4 Bike Carrier Rack

0 reviews - Write a review

$423.33

Stock: In Stock
Brand: Draw-Tite
Model: 41121 59401

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

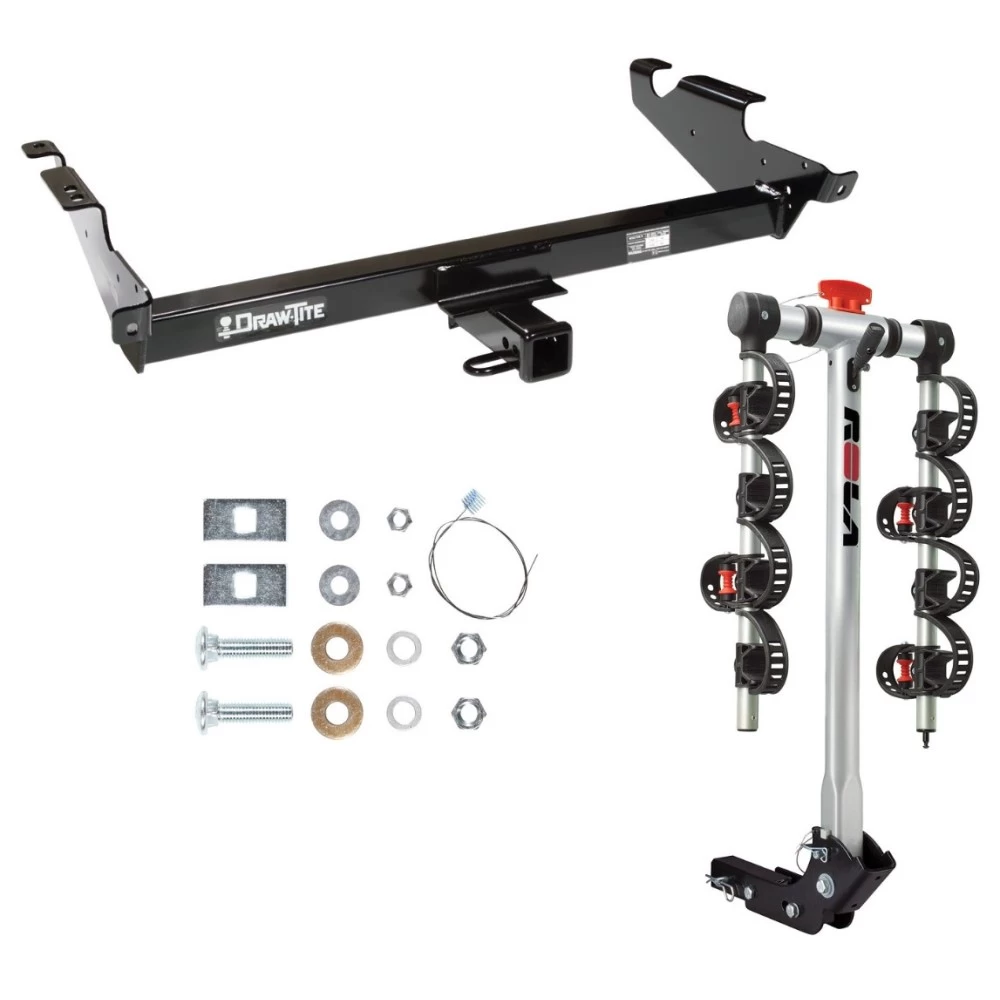

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1978 - 1995   Chevrolet, G10, All Styles
1978 - 1995   Chevrolet, G20, All Styles
1978 - 1995   Chevrolet, G30, All Styles
1979 - 1995   GMC, G1500, All Styles
1979 - 1995   GMC, G2500, All Styles
1979 - 1995   GMC, G3500, All Styles
1996   Chevrolet, G30, Classic & Sport Full Size w/Lo-Mount Taillights
1996   GMC, G3500, Vandura & Rally Full Size w/Lo-Mount Taillights

Trailer Hitch Specs:

Part Number	41121
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	500/1000 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	59401
Brand	Rola
Finish	Black Powdercoat
Number of Bikes	4
Capacity	100 lbs
Application	Fits 2" receivers
Weight	33 lbs.
Warranty	5 Year Warranty
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.
