Trailer Tow Hitch For 79-11 Ford Crown Victoria Lincoln Town Car Basket Cargo Carrier Platform w/ Hitch Pin

Trailer Tow Hitch For 79‑11 Ford Crown Victoria Lincoln Town Car Basket Cargo Carrier Platform w/ Hitch Pin

Model: 41116 63153 63240

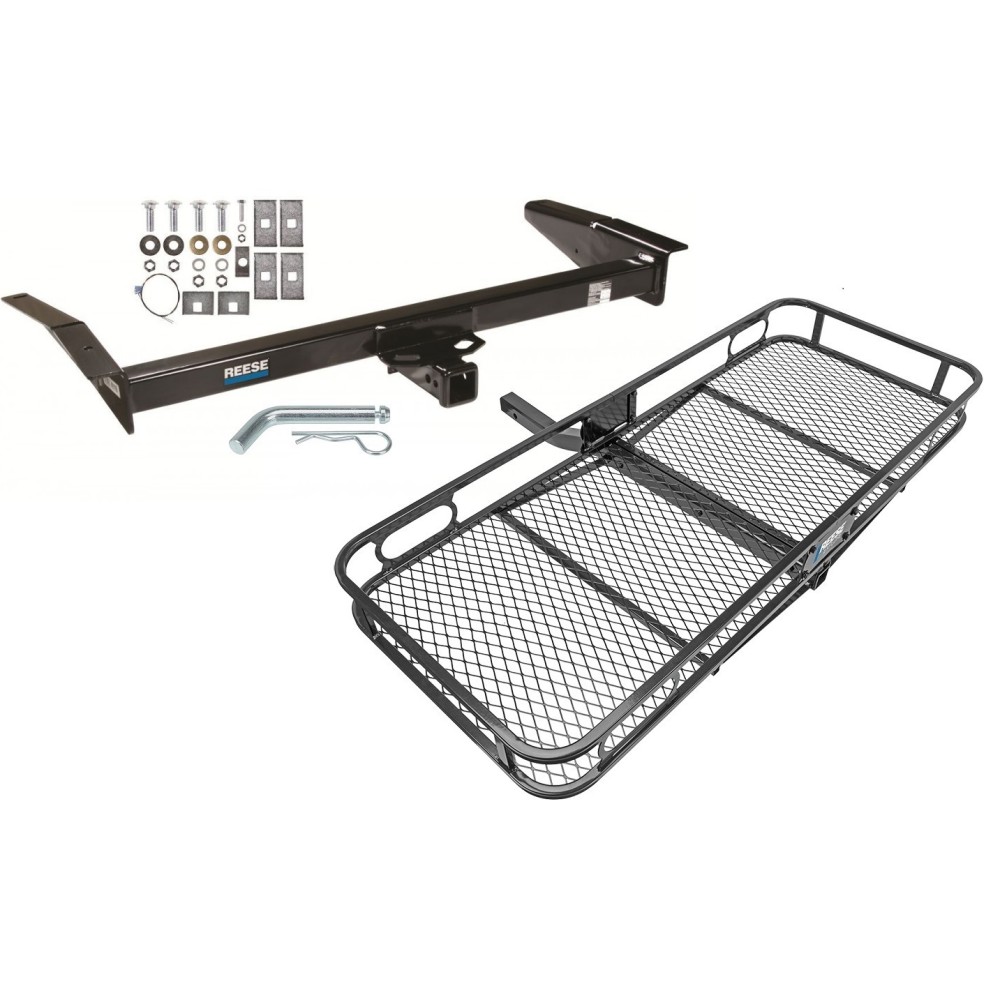

Includes Everything Pictured:
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1979 - 1991    Ford, LTD, All Styles
1980 - 1983    Lincoln, Mark VI, All Styles
1981 - 2011    Lincoln, Town Car, All Styles
1983 - 2009    Ford, Crown Victoria, All Styles
1979 - 2011    Mercury, Grand Marquis, All Styles
2003 - 2004    Mercury, Marauder, All Styles

Trailer Hitch Specs:

Part Number	41116
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	350/750 lbs
Warranty	Lifetime
Installation Instructions

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 01 02 03 04 05 06 07 08 09 10 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011

See Full Description

$542 ⁰² $868.10 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$868.10 $542 ⁰²

Pay in 4 interest-free installments of $135.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $135.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 41116 63153 63240
Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	Yes
Gross Towing Weight	3,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	6,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	41116
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	350/750 lbs
Warranty	Lifetime
Installation Instructions

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

Questions or Comments? Call 702-374-8999

Tags: 41116 , 63153 , 63240 , Draw-Tite , Trailer , Tow , Hitch , 79-11 , Crown , Victoria , Lincoln , Town , Car , Basket , Cargo , Carrier , Platform , Hitch , Pin , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 91 , 92 , 93 , 94 , 95 , 96 , 97 , 98 , 99 , 00 , 01 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 1979 , 1980 , 1981 , 1982 , 1983 , 1984 , 1985 , 1986 , 1987 , 1988 , 1989 , 1990 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011

Get Expert Help

Trailer Tow Hitch For 79-11 Ford Crown Victoria Lincoln Town Car Basket Cargo Carrier Platform w/ Hitch Pin Install Notes

Installation Instructions for Ford LTD, Crown Victoria, Lincoln Town Car, Town Coupe, Mark VI, Mercury Marquis, Grand Marquis, and Mercury Marauder

Part Numbers:

44728
41116
87408

Wiring Access Location:

PC3, PC4

Tools Required:

Ratchet
Torque Wrench
Drill with 1/2" Drill Bit
Exhaust Removal Pliers
Sockets: 3/4", 13mm

Step-by-Step Instructions:

Prepare Frame Rails:
- Examine the bottom of the frame rails and remove any weld spatter to ensure the hitch sits flat.
- Remove all but a thin film of undercoating from the attaching surfaces.
Fishwire Rearward Bolts:
- Feed the 1/2" carriage bolts and 1/4" x 1-1/2" x 3" spacer blocks through the body mount access holes and into the existing slots in the frame rails.
Position Hitch:
- Raise the hitch into position over the bolts and loosely install the conical washers (teeth side facing hitch) and hex nuts.
- Ensure both sides of the hitch are positioned identically within the slots (e.g., forward, centered, or rearward).
Relocate Exhaust Hanger (2003 and Later Lincoln Town Car):
- Unbolt the passenger-side exhaust hanger bracket from the vehicle frame.
- Remove the rubber hanger from both the hanger bracket and the tailpipe bracket.
- Rotate the rubber hanger and reattach it to the hanger bracket. Do not reattach it to the tailpipe bracket at this time. Discard the existing hanger bolt.
Drill Frame Holes:
- Using the hitch as a template, drill a rearward hole into the bottom of each frame rail with a 1/2" drill bit.
Install Rearward Fasteners:
- Drop a 1/2" bolt with a 1/4" x 1-1/2" x 2" spacer block down through the access hole at the end of each frame rail and into the drilled holes.
- Hold the spacer block in place with one hand while guiding the bolt through the hole.
Secure Hitch:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten all M8 CL8.8 fasteners to 20 lb-ft (27 N*m).
Reattach Exhaust Hanger (2003 and Later Lincoln Town Car):
- Reattach the passenger-side exhaust hanger bracket as shown in Figure 3.
