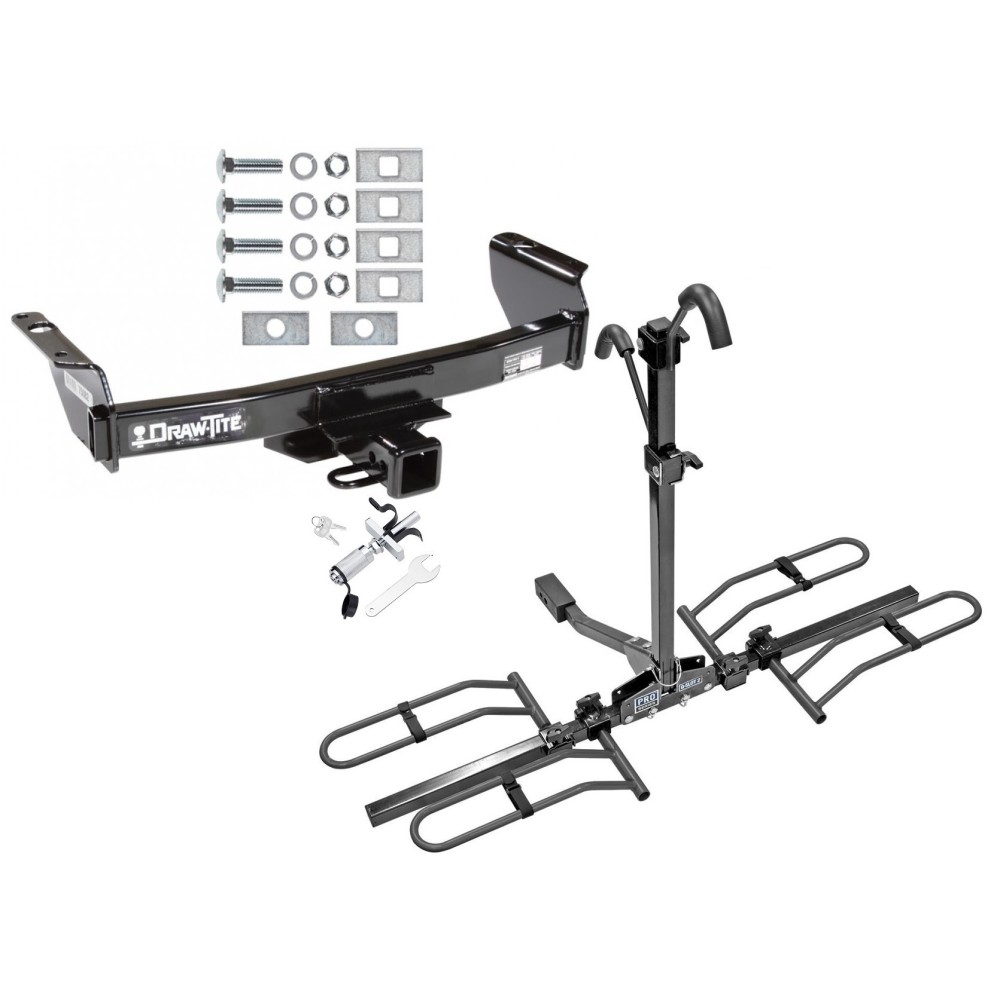

Trailer Tow Hitch For 83‑12 Ford Ranger Mazda B Series 2" Towing Receiver Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 75082 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1990 - 2012 Ford, Ranger, All Styles
1994 - 2010 Mazda, B2300, All Styles
1994 - 2008 Mazda, B3000, All Styles
1994 - 2010 Mazda, B4000, All Styles
1998 - 2001 Mazda, B2500, All Styles
Trailer Hitch Specs:
| Part Number | 75082 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 400/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years:
83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012
$417 22 $670.66 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$670.66 $417 22
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $104.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75082 63134 63100
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1990 - 2012 Ford, Ranger, All Styles
1994 - 2010 Mazda, B2300, All Styles
1994 - 2008 Mazda, B3000, All Styles
1994 - 2010 Mazda, B4000, All Styles
1998 - 2001 Mazda, B2500, All Styles
Trailer Hitch Specs:
| Part Number | 75082 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 400/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years:
83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch For 83-12 Ford Ranger Mazda B Series 2" Towing Receiver Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Ford Ranger and Mazda B-Series (B2300, B3000, B4000)
Part Numbers:
- 75082
- 44101
- 78165
- 87161
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Rearmost Fasteners:
- For vehicles with a step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides.
-
Position Hitch:
- Place the hitch on the vehicle, ensuring the bumper brackets (if present) are sandwiched between the hitch and the vehicle frame. Install the rearmost fasteners.
-
Drill Forward Holes:
- Using the hitch as a template, drill two (2) 1/2" holes into the frame at the forward end of the hitch.
- Note: On some models, the holes may already exist.
-
Install Remaining Fasteners:
- Secure the hitch using the provided hardware. For vehicles with a step bumper, place the 3/16" x 1" x 2" block between the frame and the side brackets at the forward attachment point.
-
Tighten Fasteners:
- Tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1-3/4"
- (4) Blocks, 1/4" x 1" x 2"
- (2) Blocks, 3/16" x 1" x 2"
- (4) Lock Washers, 1/2"
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (340.5 kg)
Additional Notes:
- A 19mm open-end wrench must be purchased to allow removal of the spare tire after hitch installation.
- This product complies with SAE J684 safety standards and V.E.S.C. Regulation V-5.
- Ensure all fasteners are properly torqued before towing.
