Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 8 ft. Bed w/ 4 Bike Carrier Rack

Trailer Tow Hitch For 88‑00 Chevy GMC C/K 1500 2500 3500 8 ft. Bed w/ 4 Bike Carrier Rack

Model: 41901 59401

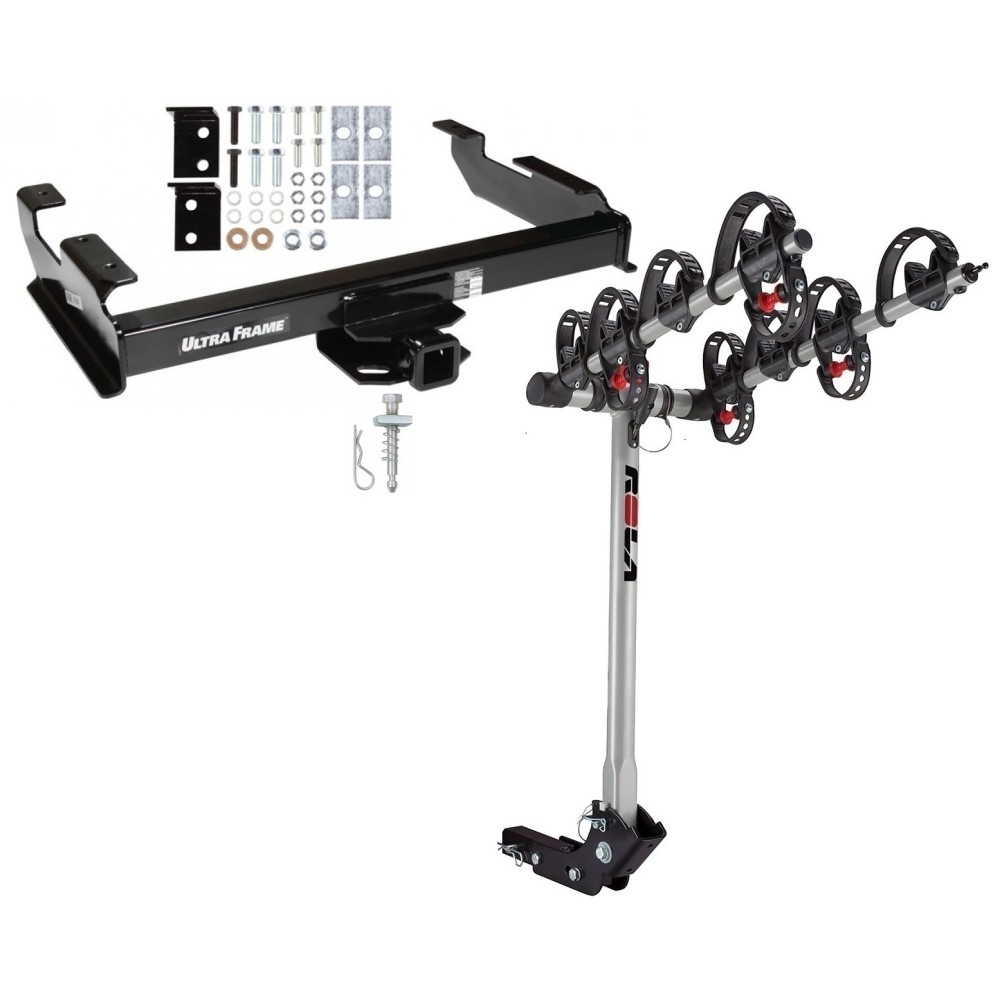

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1988 - 1999   Chevrolet, C1500, 8 ft. Bed
1988 - 2000   Chevrolet, C2500, Regular & Extended Cabs, w/ 8 ft. Bed Only
1988 - 2000   Chevrolet, C3500, Regular & Extended Cabs, w/ 8 ft. Bed Only
1988 - 1999   Chevrolet, K1500, 8 ft. Bed
1988 - 2000   Chevrolet, K2500, Regular & Extended Cabs, w/ 8 ft. Bed Only
1988 - 2000   Chevrolet, K3500, Regular & Extended Cabs, w/ 8 ft. Bed Only
1988 - 1999   GMC, C1500, 8 ft. Bed
1988 - 2000   GMC, C2500, 8 ft. Bed
1988 - 2000   GMC, C3500, 8 ft. Bed
1988 - 1999   GMC, K1500, 8 ft. Bed
1988 - 2000   GMC, K2500, 8 ft. Bed
1988 - 2000   GMC, K3500, 8 ft. Bed
1992 - 2000   Chevrolet, C2500, Crew Cab, w/ 8 ft. Bed Only
1992 - 2000   Chevrolet, C3500, Crew Cab, w/ 8 ft. Bed Only
1992 - 2000   Chevrolet, K2500, Crew Cab, w/ 8 ft. Bed Only
1992 - 2000   Chevrolet, K3500, Crew Cab, w/ 8 ft. Bed Only

Trailer Hitch Specs:

Part Number	41901
Brand	Draw-Tite
Finish	Black Powdercoat
Class	5
Receiver size opening	2"
Max gross trailer weight	10,000 lbs
Max GTW w/ weight distribution	13,000 lbs
Max Tongue Weight	1,000/1,300lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	59401
Brand	Rola
Finish	Black Powdercoat
Number of Bikes	4
Capacity	100 lbs
Application	Fits 2" receivers
Weight	33 lbs.
Warranty	5 Year Warranty
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000

See Full Description

$397 ⁸² $791.32 50% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$791.32 $397 ⁸²

Pay in 4 interest-free installments of $99.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $99.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 41901 59401
Includes: Ultra Frame Class 4 Trailer Tow Hitch, TX Bike Carrier - 4 bike

Compatibility Chart

Year Range	Make	Model	Style
1998 - 2003	Toyota	Sienna	All Models

Showing 1 to 1 of 1 entry

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	Yes
Gross Towing Weight	10,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	13,000 lbs.
Hitch Class	V
Material	Steel
Maximum Tongue Weight	1,000 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	41901
Brand	Draw-Tite
Finish	Black Powdercoat
Class	5
Receiver size opening	2"
Max gross trailer weight	10,000 lbs
Max GTW w/ weight distribution	13,000 lbs
Max Tongue Weight	1,000/1,300lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	59401
Brand	Rola
Finish	Black Powdercoat
Number of Bikes	4
Capacity	100 lbs
Application	Fits 2" receivers
Weight	33 lbs.
Warranty	5 Year Warranty
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 8 ft. Bed w/ 4 Bike Carrier Rack , 41901 59401 , C/K Pickup

Get Expert Help

Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 8 ft. Bed w/ 4 Bike Carrier Rack Install Notes

Installation Instructions for Chevrolet & GMC Pickup Full Size (8' Box Only)

Part Numbers:

41901
96901

Wiring Access Location:

Tools Required:

Wrenches: 18mm, 19mm, 13/16", 7/8"
Drill: 9/16" Drill Bit

Step-by-Step Instructions:

Remove Existing Hex Bolts:
- If the vehicle is equipped with a factory step bumper, remove and discard the 12mm hex bolts from each end of the frame.
Install Reinforcement Brackets (For Vehicles Without Factory Step Bumper):
- Use the existing holes in the frame rails to bolt the reinforcement brackets inside the ends of the frame rails.
- Secure with:
  - (2) 1/2" x 1.25" hex bolts
  - (2) 1/2" hex nuts
  - (2) 1/2" lock washers
- Ensure the brackets rest against the frame rail lower flanges.
Position Hitch Receiver:
- Lift the receiver into position, centering it over the existing holes in the frame.
Secure Fasteners:
- For Vehicles Without Factory Step Bumper:
  - Install M12 x 1.75 x 45mm hex bolts and 1/2" conical toothed washers through the receiver bracket, frame rail, and reinforcement brackets.
  - Secure with:
    - (2) 1/2" lock washers
    - (2) M12 x 1.75 hex nuts
- For Vehicles With Factory Step Bumper:
  - Install M12 x 1.75 x 45mm hex bolts and 1/2" conical toothed washers through the receiver bracket into the frame weld nuts.
  - Discard unused M12 hex nuts, 1/2" x 1.25" hex bolts, 1/2" hex nuts, lock washers, and reinforcement brackets.
Enlarge Center Attachment Hole:
- Drill the center attachment hole to 9/16".
Install Remaining Fasteners:
- Place the provided blocks inside the frame rails and secure with the remaining fasteners as shown in the instructions.
Tighten All Fasteners:
- Torque all fasteners as follows:
  - 9/16" GR5 fasteners: 120 lb-ft (163 N*m)
  - M12 CL8.8 fasteners: 85 lb-ft (116 N*m)
  - 1/2" GR5 fasteners: 75 lb-ft (102 N*m)

Torque Specifications:

9/16" GR5 bolts: 120 lb-ft (163 N*m)
M12 CL8.8 bolts: 85 lb-ft (116 N*m)
1/2" GR5 bolts: 75 lb-ft (102 N*m)

Hardware List:

(4) 9/16" x 1.75" GR5 Hex Bolts
(4) 1/2" x 1.25" GR5 Hex Bolts
(4) 3/8" x 1-1/2" x 3" Spacer Blocks
(6) Lock Washers
(4) 1/2"-13 Hex Nuts
(2) M12 x 1.75 x 45mm CL10.9 Bolts
(2) M12 x 1.75 Hex Nuts
(2) Conical Toothed Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear eye protection when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Weight Distributing:
- Max Gross Trailer Weight: 13,000 lb (5,902 kg)
- Max Tongue Weight: 1,300 lb (590 kg)
