Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 4 Bike Rack w/ Hitch Lock and Cover
$435.35
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41524 59401 63201 7010

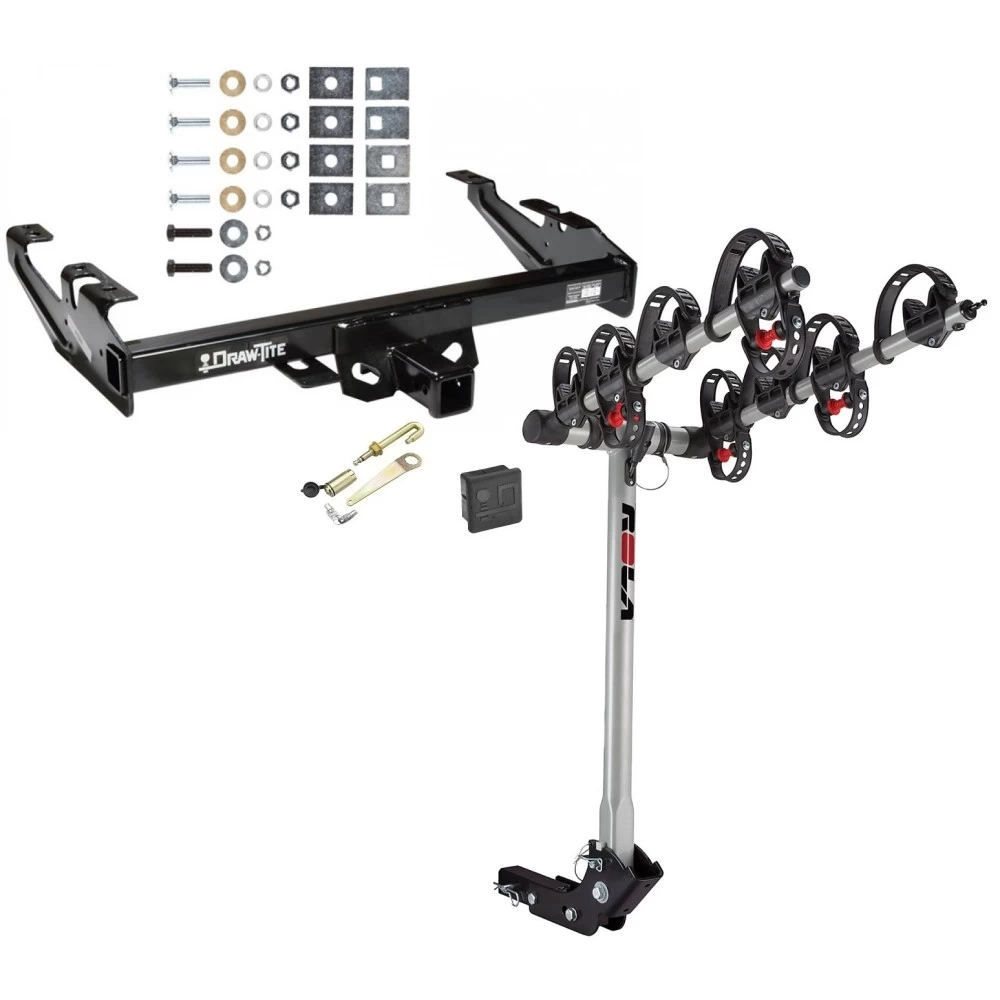

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
1992 - 2000 Chevrolet, C2500, Crew Cab
1992 - 2000 Chevrolet, C3500, Crew Cab
1992 - 2000 Chevrolet, K2500, Crew Cab
1992 - 2000 Chevrolet, K3500, Crew Cab
Trailer Hitch Specs:
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
1992 - 2000 Chevrolet, C2500, Crew Cab
1992 - 2000 Chevrolet, C3500, Crew Cab
1992 - 2000 Chevrolet, K2500, Crew Cab
1992 - 2000 Chevrolet, K3500, Crew Cab
Trailer Hitch Specs:
| Part Number | 41524 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
