Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin

Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Basket Cargo Carrier Platform w/ Hitch Pin
$561.17
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 41524 63153 63240

Applies to this product only

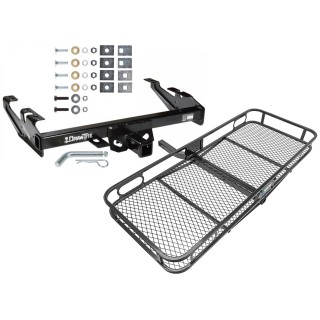

Includes Everything Pictured:
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions


Fits The Following Vehicles


1988 - 1999    Chevrolet, C1500, All Styles
1988 - 1999    Chevrolet, C2500, Regular & Extended Cabs
1988 - 2000    Chevrolet, C3500, Regular & Extended Cabs
1988 - 1999    Chevrolet, K1500, All Styles
1988 - 1999    Chevrolet, K2500, Regular & Extended Cabs
1988 - 2000    Chevrolet, K3500, Regular & Extended Cabs
1988 - 1999    GMC, C1500, All Styles
1988 - 2000    GMC, C2500, All Styles
1988 - 2000    GMC, C3500, All Styles
1988 - 1999    GMC, K1500, All Styles
1988 - 2000    GMC, K2500, All Styles
1988 - 2000    GMC, K3500, All Styles
1992 - 2000    Chevrolet, C2500, Crew Cab
1992 - 2000    Chevrolet, C3500, Crew Cab
1992 - 2000    Chevrolet, K2500, Crew Cab
1992 - 2000    Chevrolet, K3500, Crew Cab

Trailer Hitch Specs:
Part Number 41524
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution 10,000 lbs
Max Tongue Weight 600/1,000 lbs
Warranty Lifetime
Installation Instructions

When your gear is essential, these hitch baskets help you pack it in.

  • 5.5" side rails to retain cargo
  • Fits 2" trailer hitch receives
  • 2-1/2"" Shank Rise elevates the platform
  • 12-3/4" Distance from hitch pin to the edge of carrier
  • Mesh floor for easy cleanup
  • Up to 500 lbs. capacity
  • Up to 60" x 24" (inside dimensions) cargo platform
  • Black powder coat finish resists corrosion
  • Bikes clips and fully functional light systems available
  • 1 Year Warranty

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 10,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,000 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
