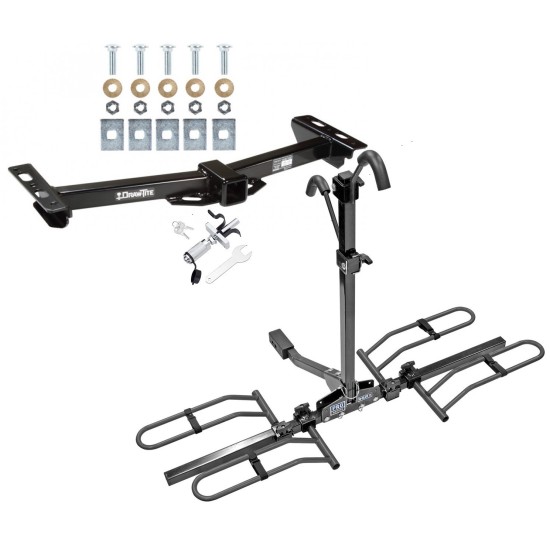

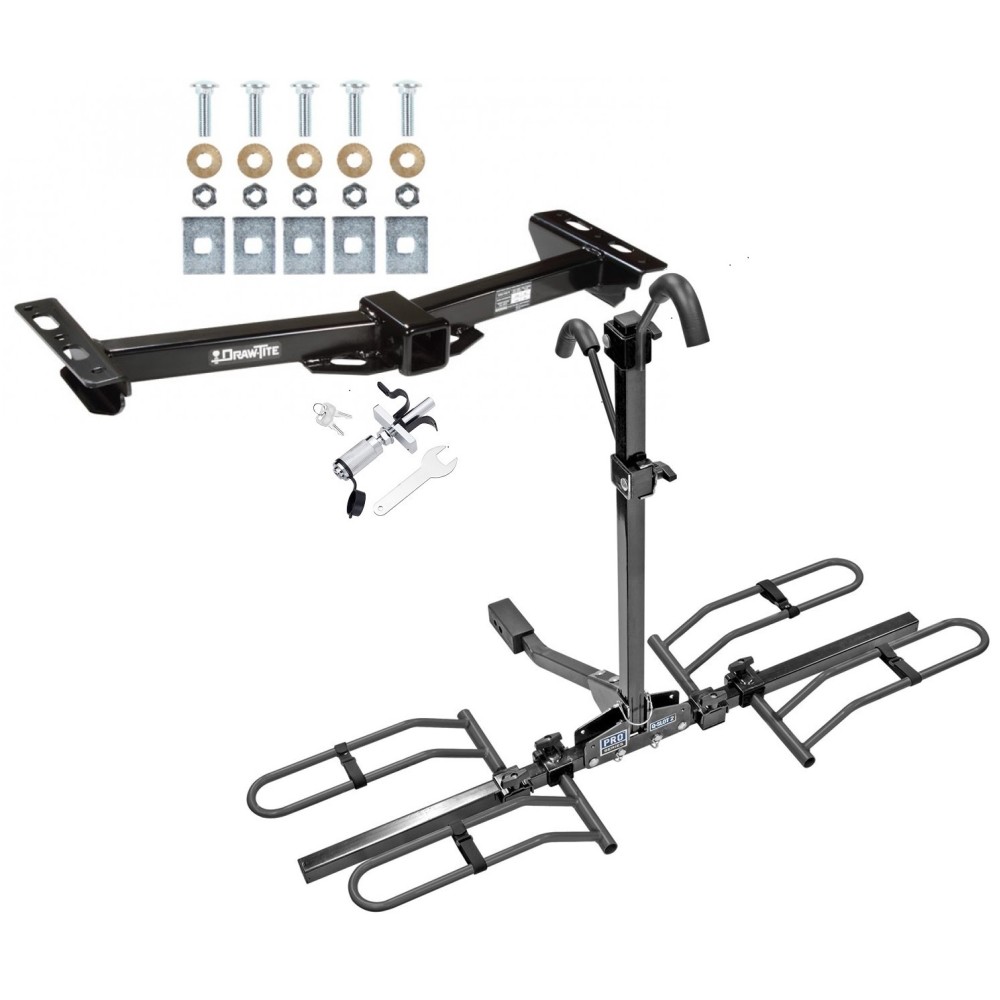

Trailer Tow Hitch For 88‑00 Chevy GMC C/K 1500 2500 3500 Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 41522 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, C3500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K1500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, K3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, C1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, K1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K3500, w/Aftermarket Roll Pan

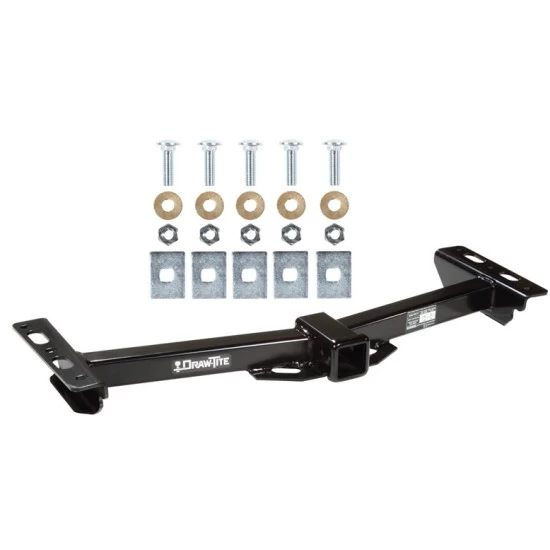

Trailer Hitch Specs:
| Part Number | 41522 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
$458 53 $735.17 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$735.17 $458 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $114.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41522 63134 63100
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, C3500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K1500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, K3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, C1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, K1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K3500, w/Aftermarket Roll Pan
Trailer Hitch Specs:
| Part Number | 41522 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Chevrolet/GMC Pickups with Aftermarket Roll Pan
Part Numbers:
- 41522
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 7/8" (Crowfoot)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
-
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
-
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
-
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
-
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
-
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
-
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2" GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
- (6) Conical Toothed Washers
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb
Additional Notes:
- Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
