Trailer Tow Hitch For 93-99 Ford Ranger 94-09 Mazda B-Series Complete Package w/ Wiring and 2" Ball
$276.60
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75082 118325 23 63845

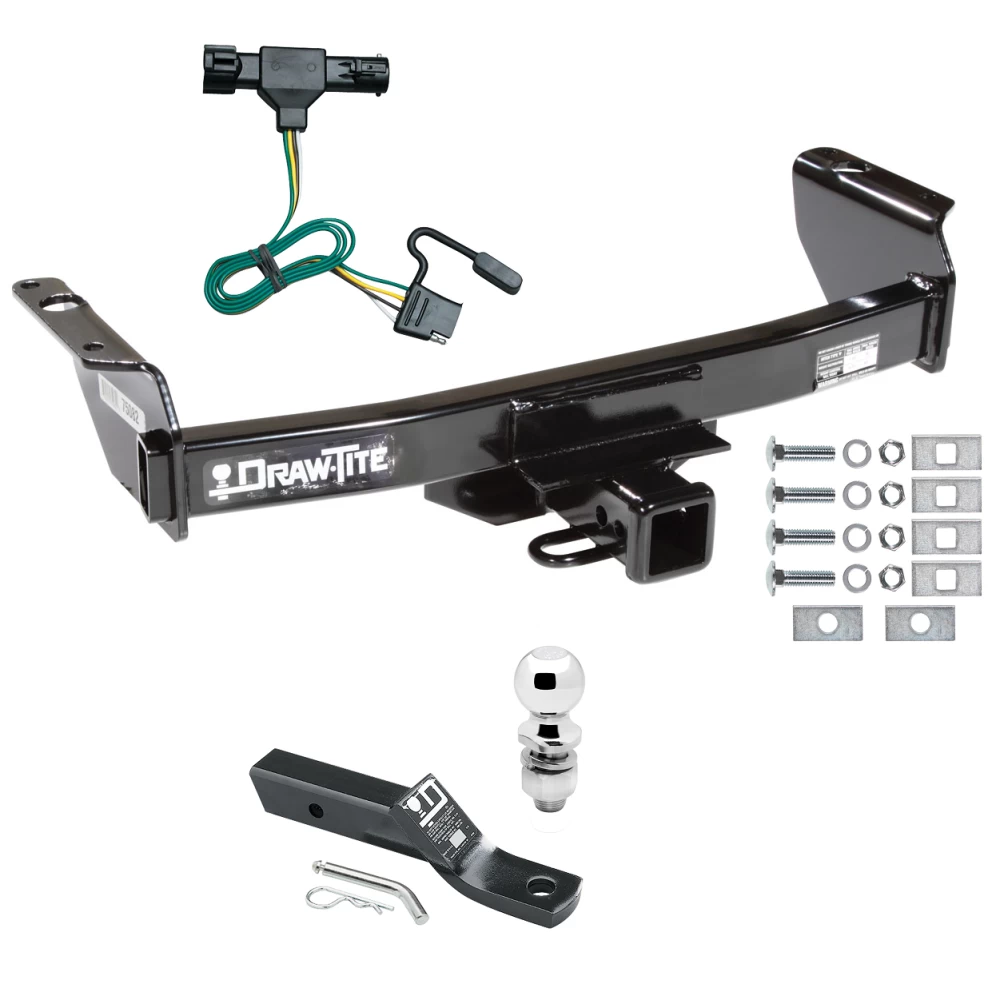

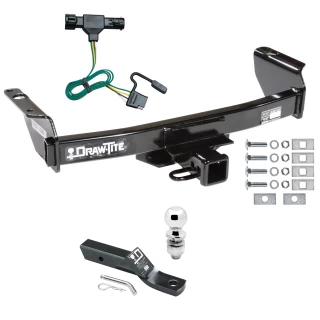

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1993 - 1999 Ford, Ranger, All Styles
1994 - 1997 Mazda, B2300, All Styles
2002 - 2009 Mazda, B2300, All Styles
1998 - 2001 Mazda, B2500, All Styles
1994 - 2008 Mazda, B3000, All Styles
1994 - 2009 Mazda, B4000, All Styles
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1993 - 1999 Ford, Ranger, All Styles
1994 - 1997 Mazda, B2300, All Styles
2002 - 2009 Mazda, B2300, All Styles
1998 - 2001 Mazda, B2500, All Styles
1994 - 2008 Mazda, B3000, All Styles
1994 - 2009 Mazda, B4000, All Styles
Trailer Hitch Specs:
| Part Number | 75082 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 400/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118325 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
