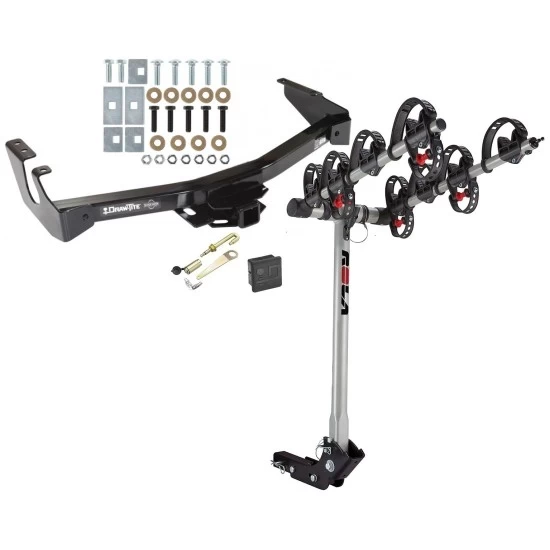

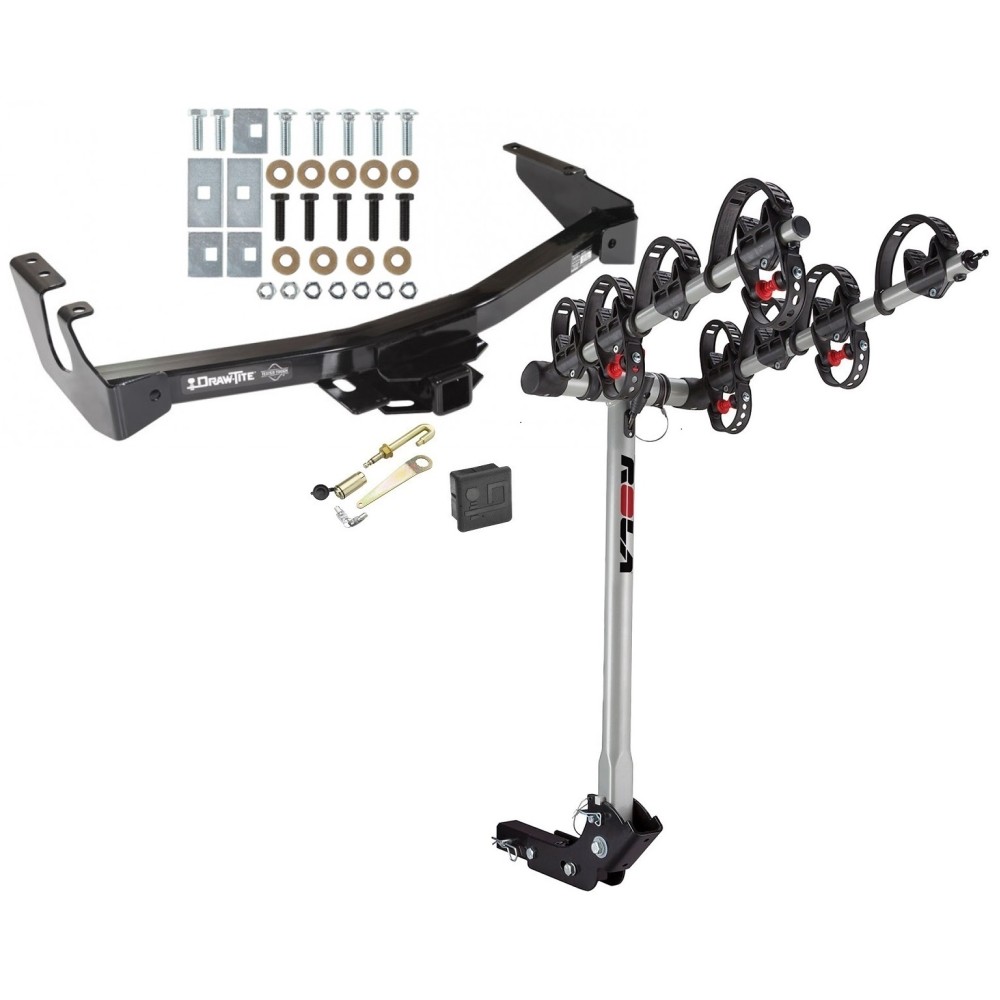

Trailer Tow Hitch For 94‑03 Dodge Van B Series Ram 1500 2500 3500 4 Bike Rack w/ Hitch Lock and Cover
Model: 41533 59401 63201 7010Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1994 Dodge, Van, B150, without Factory Step Bumper
1994 Dodge, Van, B250, without Factory Step Bumper
1994 Dodge, Van, B350, without Factory Step Bumper
1995 - 1998 Dodge, Van, B1500, without w/Factory Step Bumper
1995 - 1998 Dodge, Van, B2500, without w/Factory Step Bumper
1995 - 1998 Dodge, Van, B3500, without w/Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 1500, without w/Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 2500, without Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 3500, without Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 03 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
$423 87 $808.28 48% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$808.28 $423 87
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $105.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41533 59401 63201 7010
- Includes: Class 4 Trailer Tow Hitch, TX Bike Carrier - 4 bike, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1994 Dodge, Van, B150, without Factory Step Bumper
1994 Dodge, Van, B250, without Factory Step Bumper
1994 Dodge, Van, B350, without Factory Step Bumper
1995 - 1998 Dodge, Van, B1500, without w/Factory Step Bumper
1995 - 1998 Dodge, Van, B2500, without w/Factory Step Bumper
1995 - 1998 Dodge, Van, B3500, without w/Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 1500, without w/Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 2500, without Factory Step Bumper
1999 - 2003 Dodge, Van, Ram 3500, without Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 03 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 94-03 Dodge Van B Series Ram 1500 2500 3500 4 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Dodge Van
Part Numbers:
- 41533
- 37070
Wiring Access Location:
- SUV5
Tools Required:
- Drill with 1/2" Drill Bit (if required)
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
-
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
-
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
-
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
- (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (2) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This hitch does not fit vehicles equipped with a factory step bumper.
- Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
