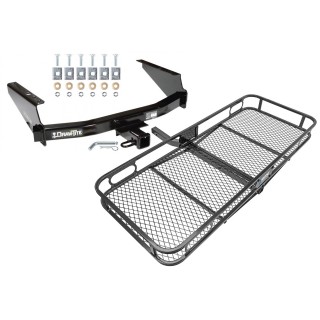

Trailer Tow Hitch For 97‑03 Ford F‑150 2004 Heritage F‑250 Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75065 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1997 - 2004 Ford, F-150, Flareside
1997 - 2004 Ford, F-150, Styleside
2000 - 2003 Ford, F-150, SuperCrew
1997 - 1999 Ford, F-250, Styleside
2004 Ford, F-150 Heritage, Flareside
2004 Ford, F-150 Heritage, Styleside
Trailer Hitch Specs:
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty

Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 2000 2001 2002 2003 2004
$497 40 $798.44 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$798.44 $497 40
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $124.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75065 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 8,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 800 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1997 - 2004 Ford, F-150, Flareside
1997 - 2004 Ford, F-150, Styleside
2000 - 2003 Ford, F-150, SuperCrew
1997 - 1999 Ford, F-250, Styleside
2004 Ford, F-150 Heritage, Flareside
2004 Ford, F-150 Heritage, Styleside
Trailer Hitch Specs:
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty

Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 97-03 Ford F-150 2004 Heritage F-250 Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ford F-Series Pickup Truck and SuperCrew Pickup Truck
Part Numbers:
- 75065
- 87183
- 44007
Wiring Access Location:
- PU1 & PU2
Tools Required:
- Wrenches: 7/8"
- Drill Bits: None (no drilling required)
Installation Time:
- Not specified
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Scrape wax coating off of the frame rails around the eight bolt holes to ensure proper contact.
-
Insert Fasteners:
- Insert 1/2"-13 x 1-3/4" GR5 carriage bolts, hardened flat washers, and 1/4" x 1-1/2" x 2" blocks into the forward and rear-most attachment holes in each frame rail as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position and loosely attach fasteners to the bolts as shown.
-
Secure Fasteners:
- Center the hitch and install the remaining fasteners as shown.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (8) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (8) Conical Washers, 1/2"
- (8) Hardened Flat Washers
- (8) Blocks, 1/4" x 1-1/2" x 2"
- (8) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering the vehicle.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 8,000 lb (3,629 kg)
- Max Tongue Weight: 800 lb (363 kg)
- Weight Distributing:
- Not specified for this configuration.
Additional Notes:
- This product complies with SAE J684 safety standards.
- No drilling is required as the hitch uses existing holes in the frame.
- Ensure all fasteners are properly tightened before use.
