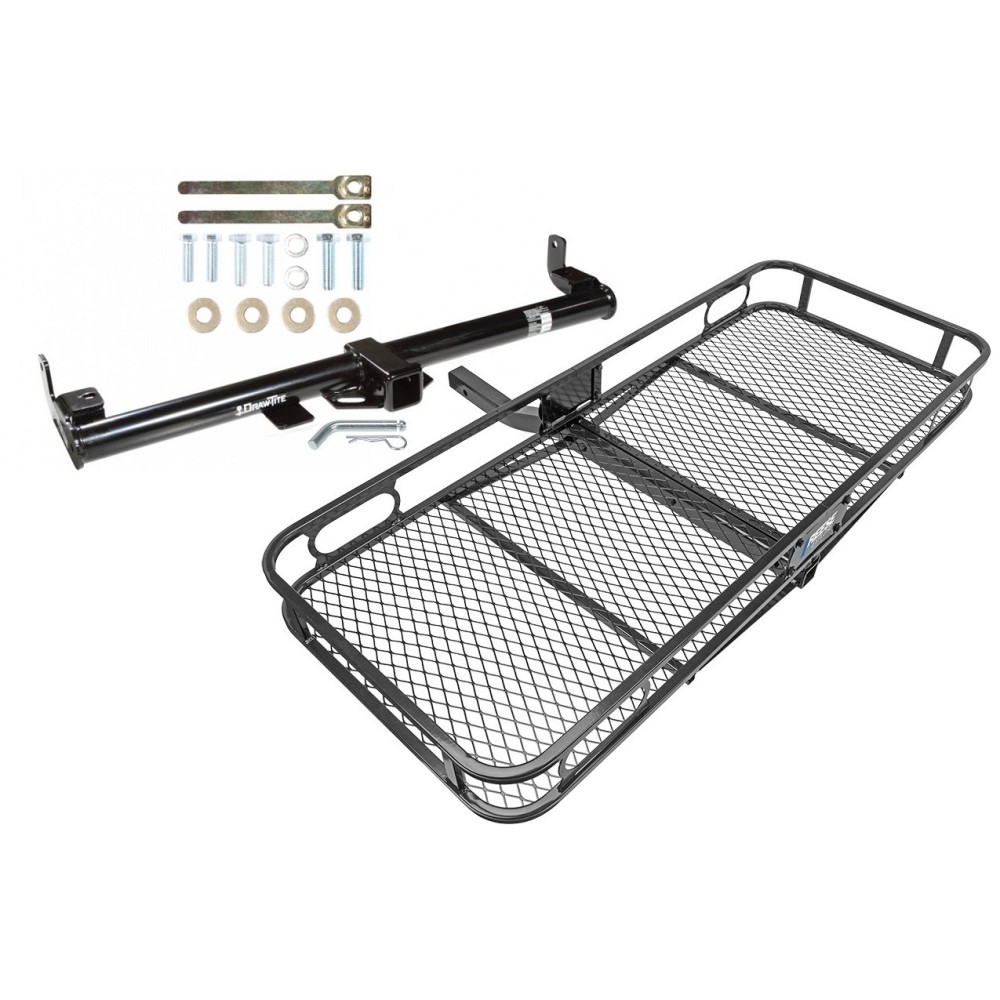

Trailer Tow Hitch For 97‑06 Jeep Wrangler TJ Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75193 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1997 - 2006 Jeep, Wrangler, All Styles
Trailer Hitch Specs:
| Part Number | 75193 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 04 05 06 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
$492 96 $791.59 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$791.59 $492 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $123.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75193 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1997 - 2006 Jeep, Wrangler, All Styles
Trailer Hitch Specs:
| Part Number | 75193 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 04 05 06 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Get Expert Help
Trailer Tow Hitch For 97-06 Jeep Wrangler TJ Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Jeep Wrangler
Part Numbers:
- 75193
- 87431
- 44565
- 33036
Wiring Access Location:
- SUV5, SUV7
Tools Required:
- Wrenches: 5/8", 3/4"
- Torque Wrench
- Drill Bits: None
Notes:
- Hitch requires 5/8” pin and clip.
Step-by-Step Instructions:
- Remove the existing bolt from the frame/bumper attachment (one from each side of the vehicle).
- If equipped, remove tow hooks and return them to the customer.
- Raise the hitch into position as shown in the diagram.
- Replace the bolt removed in Step 1 with either 7/16-14 x 1-1/2” bolts or M12 x 1.75 x 40mm bolts, depending on the vehicle model.
- Install the remaining fasteners as shown in the diagram.
- Tighten all fasteners as follows:
- 7/16 GR5 fasteners: 50 lb-ft (68 N·m)
- 1/2 GR5 fasteners: 50 lb-ft (68 N·m)
- M12 CL8.8 fasteners: 68 lb-ft (91 N·m)
Hardware List:
- (2) 7/16-14 x 1.50 GR5 Hex Bolts
- (2) 1/2-13 x 1.75 GR5 Hex Bolts
- (2) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (2) 7/16” Conical Toothed Washers
- (2) 1/2” Conical Toothed Washers
- (2) 1/2” Lock Washers
- (2) 1/2-13 Handle Nut Assemblies
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
