Trailer Tow Hitch For 97-09 Terraza Uplander Venture Montana Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 97‑09 Terraza Uplander Venture Montana Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Name: Trailer Tow Hitch For 97-09 Terraza Uplander Venture Montana Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Brand: Draw-Tite
Price: 455.07 USD
Availability: InStock

Model: 75278 63134 63100

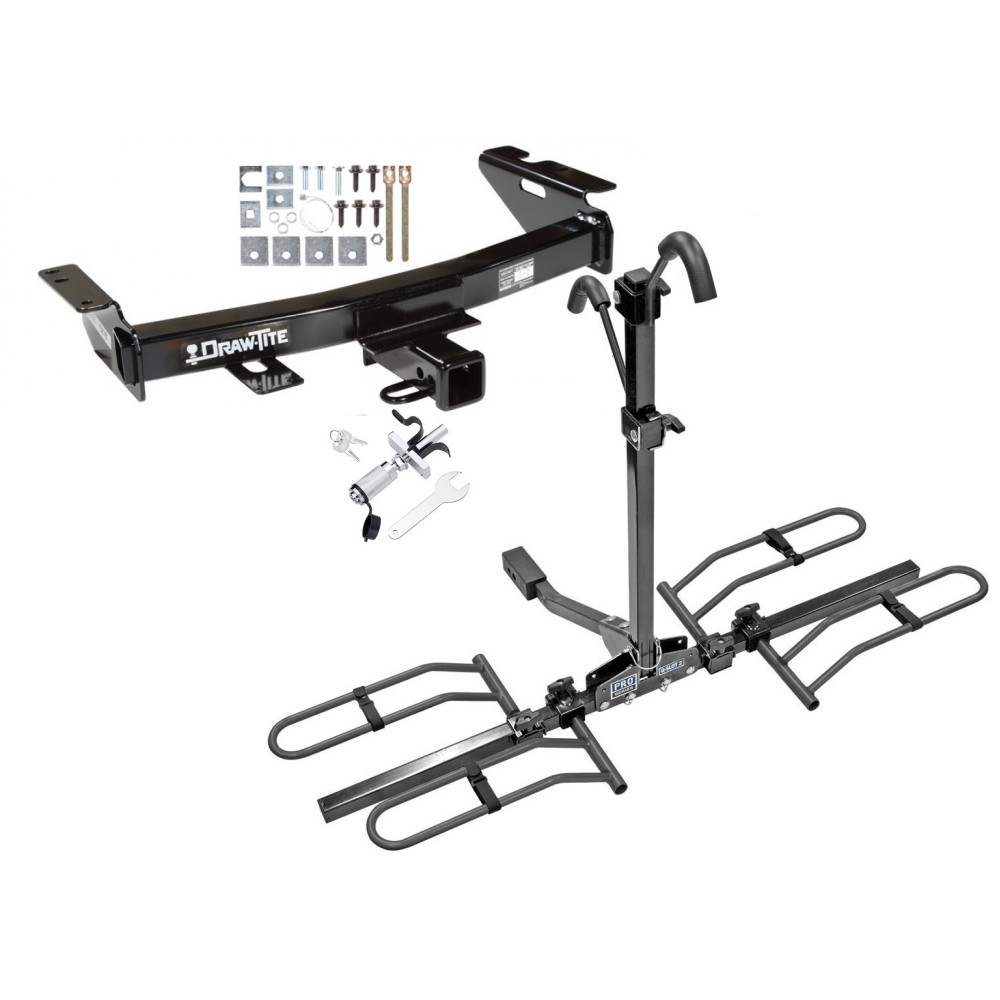

Includes Everything Pictured:

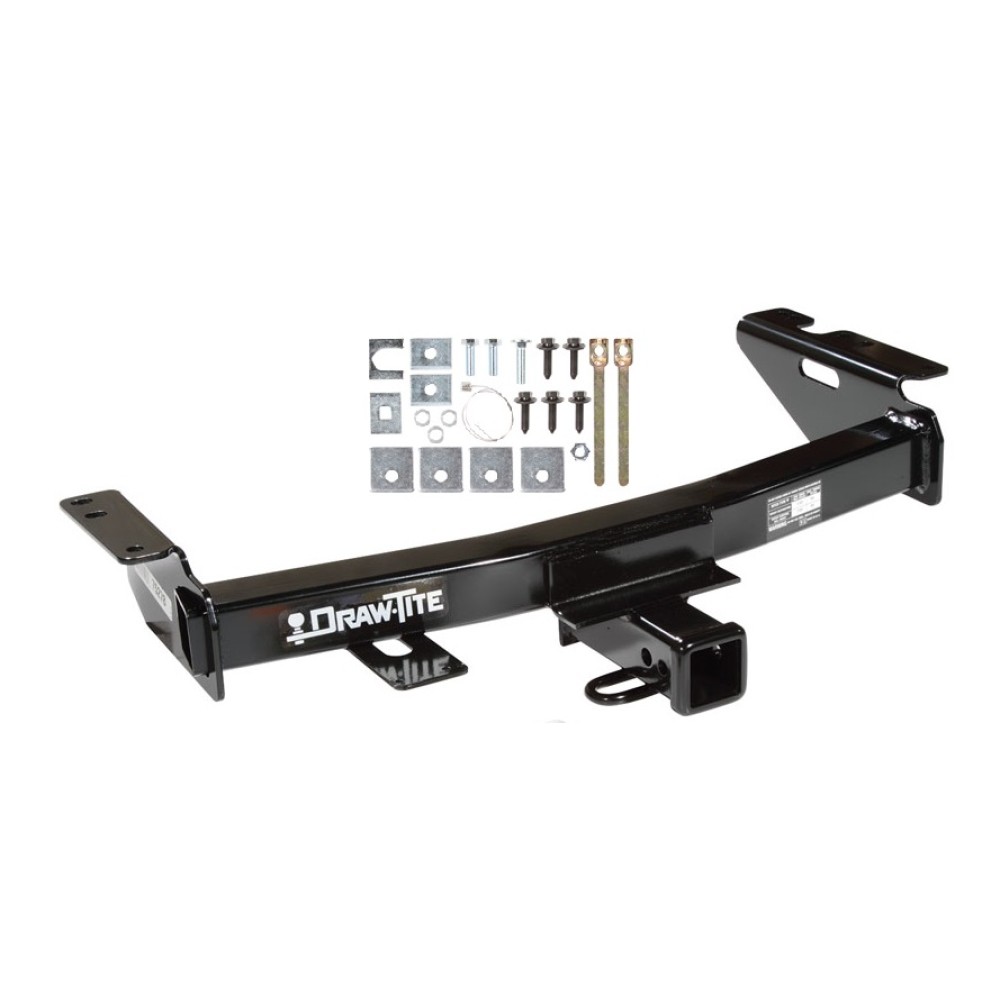

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1997 - 2005   Chevrolet, Venture, All Styles
1997 - 2004   Oldsmobile, Silhouette, All Styles
1997 - 1998   Pontiac, Trans Sport, All Styles
1999 - 2005   Pontiac, Montana, All Styles
2005 - 2007   Buick, Terraza, All Styles
2005 - 2008   Chevrolet, Uplander, All Styles
2005 - 2006   Pontiac, Montana SV6, All Styles
2005 - 2007   Saturn, Relay, All Styles
2007 - 2009   Pontiac, Montana SV6, (Canada Only)
2009   Chevrolet, Uplander, (Canada Only)

Trailer Hitch Specs:

Part Number	75278
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	350/500 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 97 98 99 00 01 02 03 04 05 06 07 08 09 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009

See Full Description

$455 ⁰⁷ $729.79 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$729.79 $455 ⁰⁷

Pay in 4 interest-free installments of $113.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $113.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75278 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	Yes
Gross Towing Weight	3,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	5,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	500 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

Part Number	75278
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	350/500 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Tags: 75278 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 97-09 , Terraza , Uplander , Venture , Montana , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 97 , 98 , 99 , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Trailer Tow Hitch For 97-09 Terraza Uplander Venture Montana Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Chevrolet Venture, Pontiac Trans Sport, Buick Terraza, Saturn Relay, and Oldsmobile Silhouette

Part Numbers:

75278
33094
87410
44574
75133 (U-Haul)

Applications:

Chevrolet Venture & Uplander
Pontiac Trans Sport & Montana & SV6
Buick Terraza
Saturn Relay
Oldsmobile Silhouette

Tools Required:

1/2” Pull Wire (Provided)
Wrenches: 10mm, 15mm, 3/4", 7/8", 17mm
Drill Bits: 1/2”

Wiring Access Location:

Refer to vehicle-specific instructions.

Step-by-Step Instructions:

Lower the Exhaust:
- Detach the exhaust hanger on the passenger side to lower the vehicle exhaust.
Lower Load-Leveling Compressor (if applicable):
- Detach the compressor on the driver’s side by removing (1) M10 bolt and (2) M6 nuts.
Note: Trim the vertical tab on the compressor bracket if it interferes with the adjacent M10 bolt.
Install the Hitch:
- Raise the hitch into position and secure it with M10 x 1.50 x 35mm CL10.9 bolts and 3/8” conical washers into the existing weldnuts on both sides.
Drill Holes for Additional Fasteners:
- Use the rearmost holes in the hitch side brackets as a template to drill 1/2” holes in the vehicle frame rails.
- For 2004 and older models:
  - Long wheelbase: Drill an additional 1/2” hole through the forwardmost passenger-side bracket location.
  - Short wheelbase: Align the forwardmost passenger-side bracket hole with the existing slot in the frame rail.
- For 2005 and newer models:
  - Align the forwardmost slot in the passenger-side bracket with the existing weldnut in the frame rail.
Fishwire Fasteners (Passenger Side):
- Use the provided pull wire to guide carriage bolts and spacer blocks through the existing slot in the frame rail and into position at the forwardmost hole.
Note: Spacer block placement varies by model year and wheelbase:
- 2004 and older short wheelbase: Place (2) blocks between the frame rail and hitch.
- 2004 and older long wheelbase: Place (2) blocks between the hitch and lock washer.
- 2005 and newer: Secure bolts through the fender support bar, hitch slot, and existing weldnut.
Secure Rear Fasteners:
- Insert handle nuts through square holes inside the frame rail.
- Install hex bolts and lock washers through the rearmost holes drilled in Step 4.
Reattach Components:
- Reinstall the exhaust hanger and load-leveling compressor using M10 fasteners.
Note for AWD Models: Pass the exhaust hanger through the 3” slot in the hitch side bracket. Use (2) 1/4” spacer blocks to reattach the hanger bracket.

Hardware List:

(2) 1/4” x 1.50” x 2.00” Spacer Blocks
(3) 1/2” Lock Washers
(2) 1/2-13 x 1.50” GR5 Bolts
(1) 1/2-13 x 2.00” GR5 Carriage Bolt
(2) 1/2-13 Handle Nut Assemblies
(5) M10 x 1.50 x 35mm CL10.9 Bolts
(5) 3/8” Conical Washers

Torque Specifications:

Tighten all M6 CL8.8 fasteners to 5 lb-ft (7 N·m).
Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
