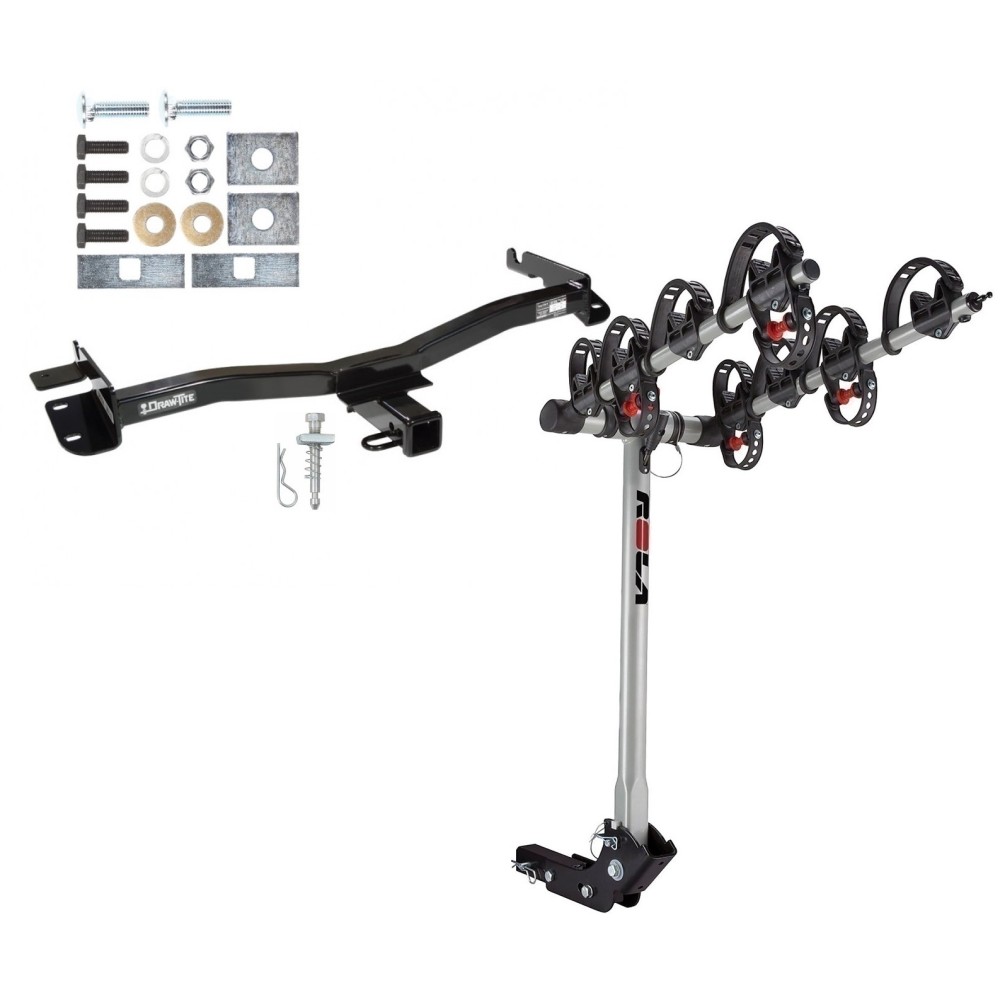

Trailer Tow Hitch For 98‑03 Toyota Sienna All Styles w/ 4 Bike Carrier Rack
Model: 75120 59401Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 75120 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
$355 51 $725.27 51% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$725.27 $355 51
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $88.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75120 59401
- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 75120 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 98-03 Toyota Sienna All Styles w/ 4 Bike Carrier Rack Install Notes
Installation Instructions for Toyota Sienna
Part Numbers:
- 75120
- 44713
- 87638
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 7/8", 14mm, 17mm
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks and Bolts:
- Remove tow hooks and bolts from frame rails and return them to the customer.
-
Raise Hitch into Position:
- Install four (4) M10 fasteners into existing weldnuts as shown in the diagram.
-
Drill Forward Holes:
- Using the hitch as a template, drill a 1/2" hole in each frame rail for the forward attachment.
-
Enlarge Access Holes:
- Remove plastic plugs in frame rails and enlarge access holes for easier bolt placement.
- Caution: Vehicles with optional rear heaters should take care to avoid damaging rear heater hoses when enlarging the passenger side access hole.
-
Fishwire Bolts:
- Fishwire the block and carriage bolt through each enlarged hole and install the fasteners as shown in the diagram.
-
Tighten Fasteners:
- Torque M10 fasteners to 53 lb-ft (72 N·m).
- Torque 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- M10 Fasteners: 53 lb-ft (72 N·m)
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (2) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (2) 1/4" x 1 x 3" Blocks (3022)
- (2) 3/16" x 1-1/2" x 2" Blocks (4833-001)
- (2) Lock Washers
- (2) Hex Nuts
- (4) M10 x 1.25 x 30mm CL10.9 Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
