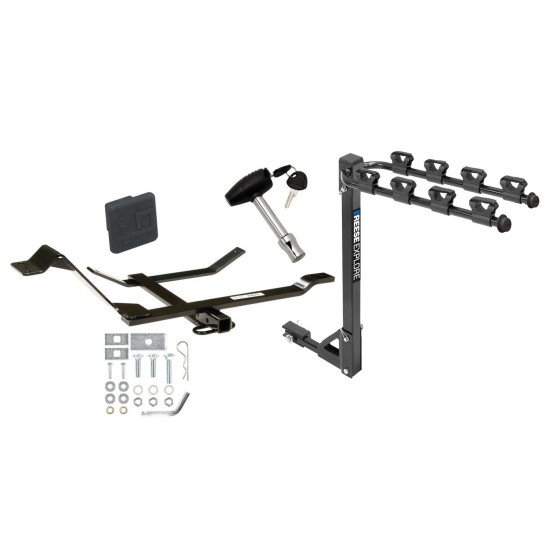

Trailer Tow Hitch w/ 4 Bike Rack For 98‑10 Volkswagen Beetle Golf tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 24679 1393100G 580407 2211Custom Fit Trailer Hitch
3 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
1999 - 2006 Volkswagen, Golf, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 08 09 10 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
$390 67 $622.46 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$622.46 $390 67
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $97.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24679 1393100G 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | Yes |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
3 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
1999 - 2006 Volkswagen, Golf, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 08 09 10 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 98-10 Volkswagen Beetle Golf tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Volkswagen Golf, Golf GTI (Canada Only), and Golf Wagon
Part Numbers:
- 24679
- 77026
Wiring Access Location:
- PC1, PC2
Tools Required:
- Drill Bits: 1/2”
- Wrenches: 13mm, 7/8”
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Remove the spare tire from the trunk.
-
Remove Muffler Bracket:
- Remove the (2) M8 fasteners securing the muffler bracket to the frame rail.
-
Bend Heat Shield:
- Bend the heat shield upward at the rear of the muffler bracket, as shown in Figure 1.
-
Position Hitch:
- Position the hitch on the vehicle with the bent bar on top of the tow hook (see Figure 3).
- Sandwich the hitch bracket between the vehicle frame rail and muffler bracket.
- Reinstall the M8 fasteners and washers.
-
Drill Holes in Trunk Pan:
- Using the hitch as a template, drill two (2) 1/2” holes in the trunk pan.
-
Install Fasteners:
- Insert the 1/2” x 2.25” GR5 carriage bolts, blocks, lock washers, and nuts as shown in Figure 2.
-
Reinstall Spare Tire:
- Place the spare tire back into the trunk.
-
Tighten Fasteners:
- Torque all M8 CL8.8 fasteners to 20 Lb.-Ft.
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft.
Hardware List:
- (2) 1/2”-13 x 2.25” GR5 Carriage Bolts
- (2) 1/4” x 1 x 2 Blocks
- (2) Lock Washers
- (2) Nuts
- (2) M8 x 1.25 x 30mm CL8.8 Hex Bolts
- (2) M8 Lock Washers
Drawbar:
- Standard Drawbar: 3594
- Length: 7.62”
- Rise: 1.25”
- Optional Drawbar: 3593
- Length: 9.62”
- Rise: 2.75”
- Important: Use only the drawbar shown for proper bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan to prevent intrusion of exhaust fumes and water.
- Replace any damaged hitch or ball.
- Always observe safety precautions and wear safety glasses during installation.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
