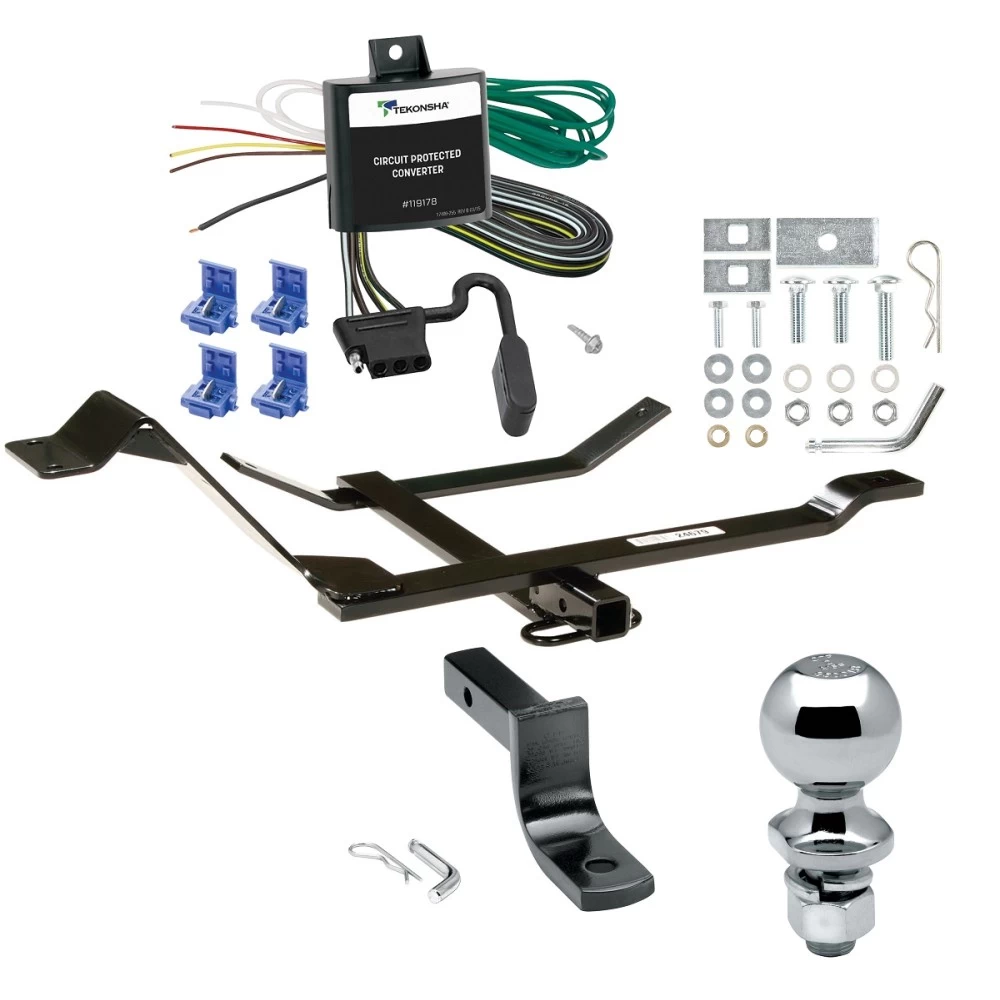

Installation Instructions for Volkswagen Golf, Golf GTI (Canada Only), and Golf Wagon

Part Numbers:

• 24679
• 77026

Wiring Access Location:

• PC1, PC2

Tools Required:

• Drill Bits: 1/2”
• Wrenches: 13mm, 7/8”

Specifications:

• Max Gross Trailer Weight: 2,000 lb.
• Max Tongue Weight: 200 lb.
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Remove the spare tire from the trunk.

2. Remove Muffler Bracket:

   • Remove the (2) M8 fasteners securing the muffler bracket to the frame rail.

3. Bend Heat Shield:

   • Bend the heat shield upward at the rear of the muffler bracket, as shown in Figure 1.

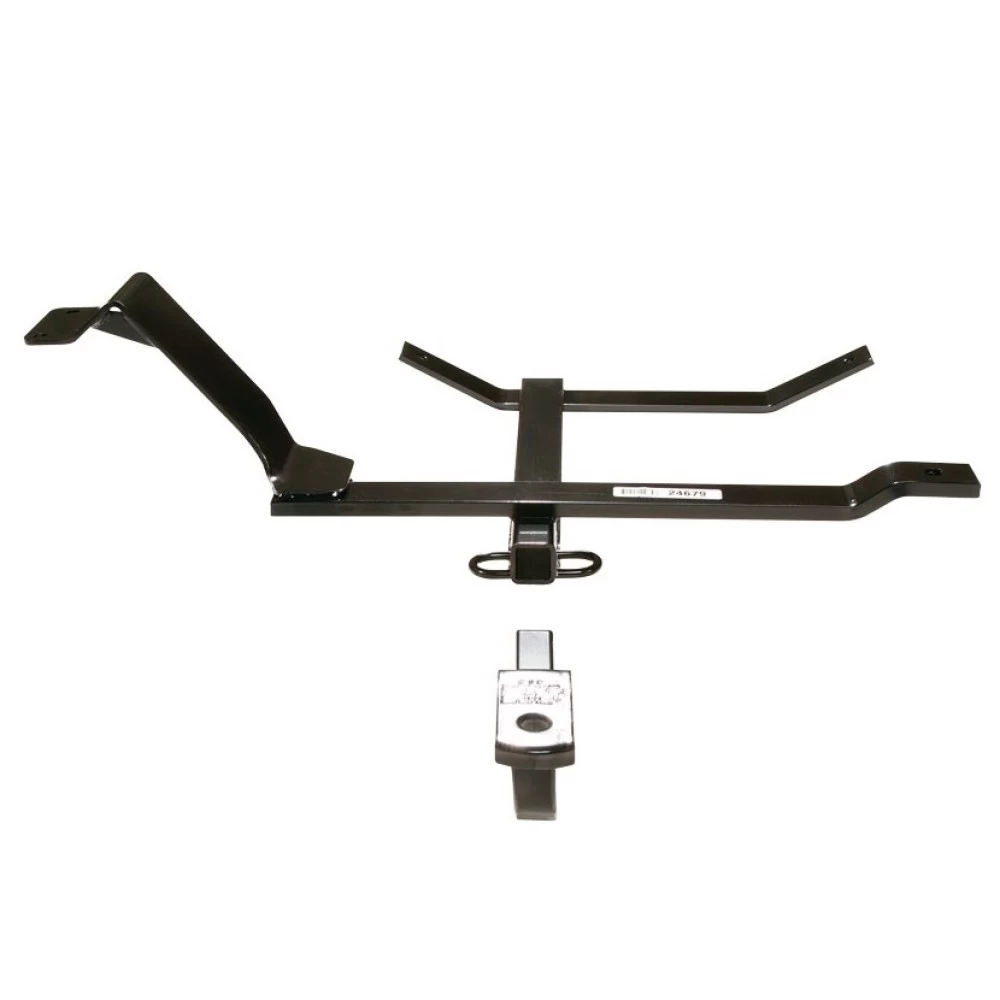

4. Position Hitch:

   • Position the hitch on the vehicle with the bent bar on top of the tow hook (see Figure 3).
   • Sandwich the hitch bracket between the vehicle frame rail and muffler bracket.
   • Reinstall the M8 fasteners and washers.

5. Drill Holes in Trunk Pan:

   • Using the hitch as a template, drill two (2) 1/2” holes in the trunk pan.

6. Install Fasteners:

   • Insert the 1/2” x 2.25” GR5 carriage bolts, blocks, lock washers, and nuts as shown in Figure 2.

7. Reinstall Spare Tire:

   • Place the spare tire back into the trunk.

8. Tighten Fasteners:

   • Torque all M8 CL8.8 fasteners to 20 Lb.-Ft.
   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft.

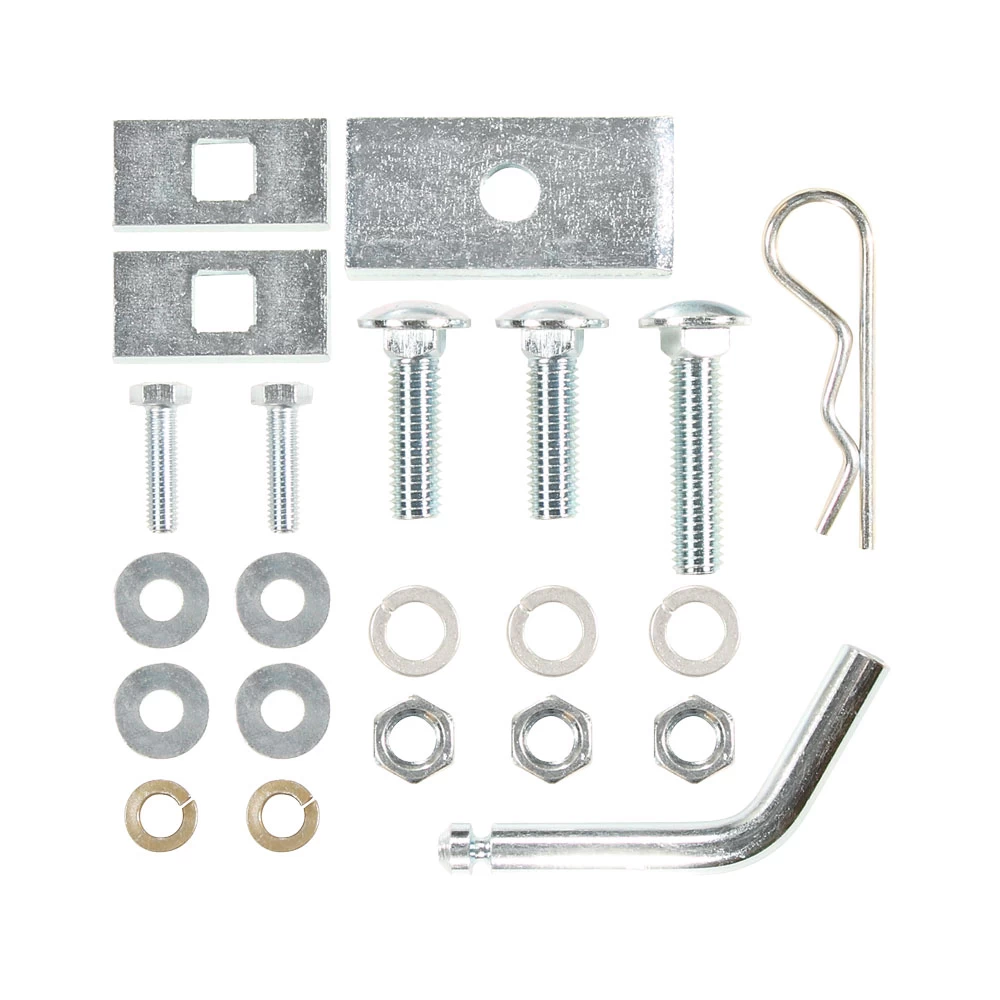

Hardware List:

• (2) 1/2”-13 x 2.25” GR5 Carriage Bolts
• (2) 1/4” x 1 x 2 Blocks
• (2) Lock Washers
• (2) Nuts
• (2) M8 x 1.25 x 30mm CL8.8 Hex Bolts
• (2) M8 Lock Washers

Drawbar:

• Standard Drawbar: 3594
  • Length: 7.62”
  • Rise: 1.25”
• Optional Drawbar: 3593
  • Length: 9.62”
  • Rise: 2.75”
• Important: Use only the drawbar shown for proper bumper clearance and height. The drawbar must be used in the rise position only.

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug all holes in the trunk pan to prevent intrusion of exhaust fumes and water.
• Replace any damaged hitch or ball.
• Always observe safety precautions and wear safety glasses during installation.
• Do not use a torch to cut access or attachment holes.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Installation Instructions for Circuit Protected Converter

Part Numbers:

• 119178

Wiring Access Location:

• Not specified in the document.

Tools Required:

• Drill (3/32” Drill Bit)
• Wire Crimpers
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.

   • Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.

2. Disconnect and isolate the vehicle's negative (-) battery terminal.

   • Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.

3. Attach the trailer wiring to the vehicle as shown in the illustration using splices.

4. Locate a suitable grounding point.

   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.

   • Mount with the wiring directed downward or sideways if downward is not possible.

6. Reconnect the vehicle's negative (-) battery terminal.

7. Testing Procedure:

   • Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
   • Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
   • Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.

8. Secure all loose wires with cable ties.

   • Warning: Do not overload circuits to prevent fires. Adhere to these limits:
     • Max stop/turn light: 1 per side (2.1 amps)
     • Max tail lights: (7.5 amps)

Hardware List:

• Not detailed in the document.

Safety Notes:

• Wear safety glasses and follow safety precautions.
• Disconnect the negative (-) cable before wiring.
• Securely ground to the vehicle chassis or an existing ground stud.
• Use on 12-volt negative ground systems only.

Specifications:

• Max stop/turn light: 1 per side (2.1 amps)
• Max tail lights: (7.5 amps)
• Secure wiring with cable ties after installation.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions.
• Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
