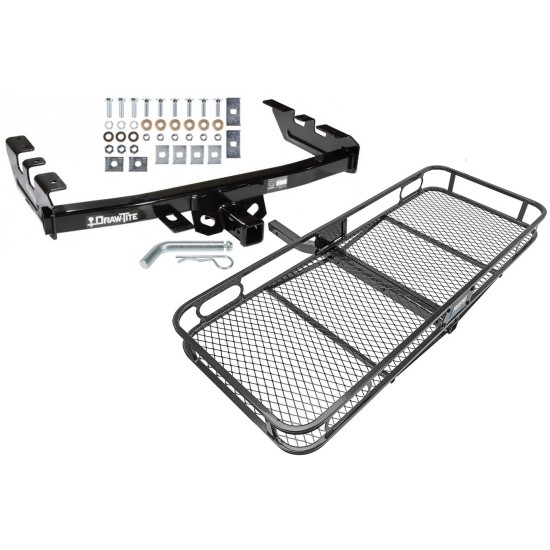

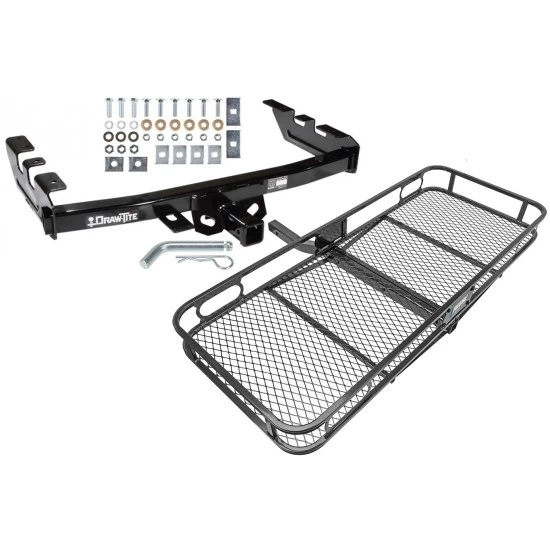

Trailer Tow Hitch For 99‑07 Chevy Silverado GMC Sierra 1500 2500 Basket Cargo Carrier Platform w/ Hitch Pin
Model: 41534 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2001 - 2002 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, All Styles
Trailer Hitch Specs:
| Part Number | 41534 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
$542 01 $868.10 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$868.10 $542 01
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $135.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41534 63153 63240
- Includes: Class 4 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2001 - 2002 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, All Styles
Trailer Hitch Specs:
| Part Number | 41534 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 99-07 Chevy Silverado GMC Sierra 1500 2500 Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Chevrolet Silverado Pickup and GMC Sierra Pickup (Vehicles with Amber Turn Signals)
Part Numbers:
- 41534
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 13/16", 7/8", 15/16", 21mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the M14 bolts from the end of each frame rail.
-
Lift Receiver into Position:
- Lift the hitch receiver into position, aligning the rearmost slots in the receiver under the existing weldnuts in the vehicle frame.
- For vehicles without a bumper, align the slots in the receiver over the fore/aft slot near the end of the frame.
-
Reinstall Existing Bolts:
- Reinstall the M14 bolts through the receiver and frame into the existing weldnuts.
- For vehicles without a bumper, ensure slots align correctly as shown in the instructions.
-
Install Additional Fasteners:
- Attach the remaining fasteners as shown in the instructions.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 115 Lb.-Ft. (156 N*M).
- Tighten all 9/16 GR5 fasteners to 110 Lb.-Ft. (149 N*M).
- Tighten all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (6) 1/2-13 x 1.75 GR5 Carriage Bolts
- (6) 1/2" Conical Washers
- (6) 1/2"-13 GR5 Hex Nuts
- (2) 9/16-12 x 1.75 Bolts
- (2) 9/16-12 Hex Nuts
- (2) Lock Washers
- (4) Spacers
- (2) .25 x 1.50 x 3.00 Spacers
- (2) Flat Washers
Safety Notes:
- Regularly check that all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering the vehicle.
- Replace any damaged hitch or ball.
- Always wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type:
- Weight Carrying: 6,000 lb. (2,724 kg) Max Gross Trailer Weight, 600 lb. (272 kg) Max Tongue Weight
- Weight Distributing: 12,000 lb. (5,448 kg) Max Gross Trailer Weight, 1,200 lb. (545 kg) Max Tongue Weight
- This product complies with SAE J684 and New York V.E.S.C. Regulation V-5.
