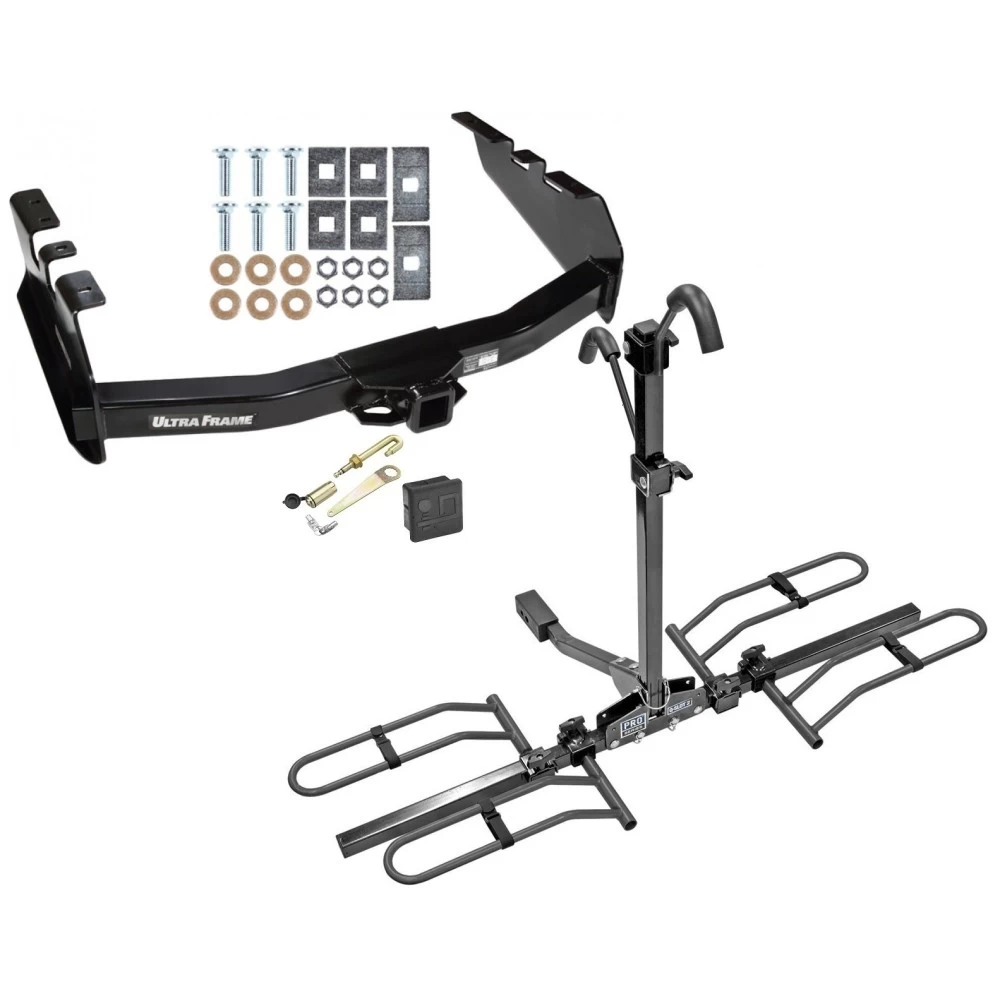

Trailer Tow Hitch For 99-07 Chevy Silverado GMC Sierra 1500 2500 Platform Style 2 Bike Rack Hitch Lock and Cover
$527.70
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41932 63134 63201 7010
Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2002 GMC, Sierra 1500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
Trailer Hitch Specs:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2002 GMC, Sierra 1500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
Trailer Hitch Specs:
| Part Number | 41932 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
