Trailer Tow Hitch For 99‑16 Ford F‑250 F‑350 Super Duty Except Cab & Chassis
Model: 419311999 - 2016 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2016 Ford, F-350 Super Duty, Except Cab & Chassis
Trailer Hitch Specs:
| Part Number | 41931 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
$299 96 $468.45 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$468.45 $299 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41931
- UPC: 742512419313

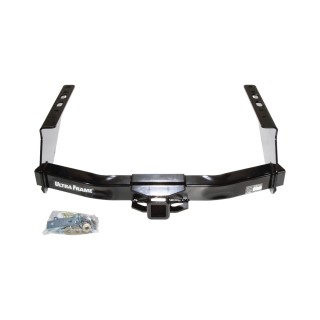

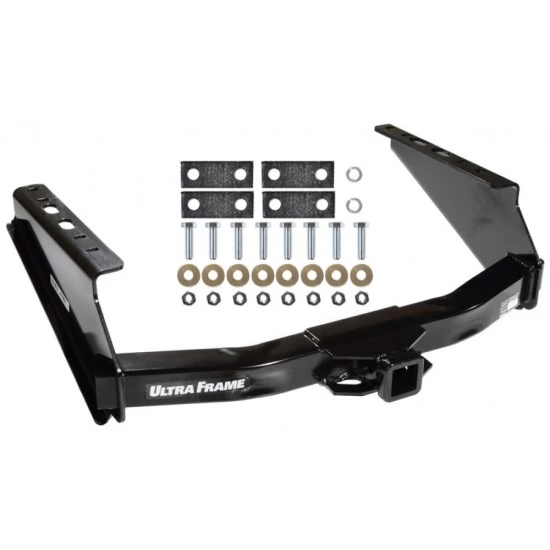

- Includes: Ultra Frame Class 5 Trailer Tow Hitch
Compatibility Chart
1999 - 2016 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2016 Ford, F-350 Super Duty, Except Cab & Chassis
Trailer Hitch Specs:
| Part Number | 41931 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch For 99-16 Ford F-250 F-350 Super Duty Except Cab & Chassis Install Notes
Installation Instructions for Ford Super Duty F-Series Trucks
Part Numbers:
- 41931
- 96931
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire to provide access to existing slots in the vehicle frame rails.
-
Remove Electrical Bracket:
- If an electrical bracket is present, remove it from the vehicle and relocate it as necessary to allow for hitch installation.
-
Position Hitch:
- Raise the hitch into position, aligning it with the slots in the frame rails.
-
Install Fasteners:
- Secure the hitch using the following hardware:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
- Secure the hitch using the following hardware:
-
Raise Spare Tire:
- Reposition the spare tire to ensure clearance between the receiver tube and the hex bolts coming through the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)

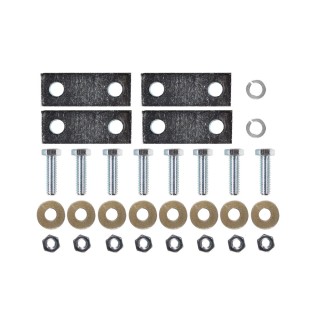

Hardware List:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Observe the manufacturer's towing capacity limits for your vehicle.
