Trailer Tow Hitch For 99-17 Honda Odyssey w/ 4 Bike Carrier Rack

Trailer Tow Hitch For 99‑17 Honda Odyssey w/ 4 Bike Carrier Rack

Model: 75270 59401

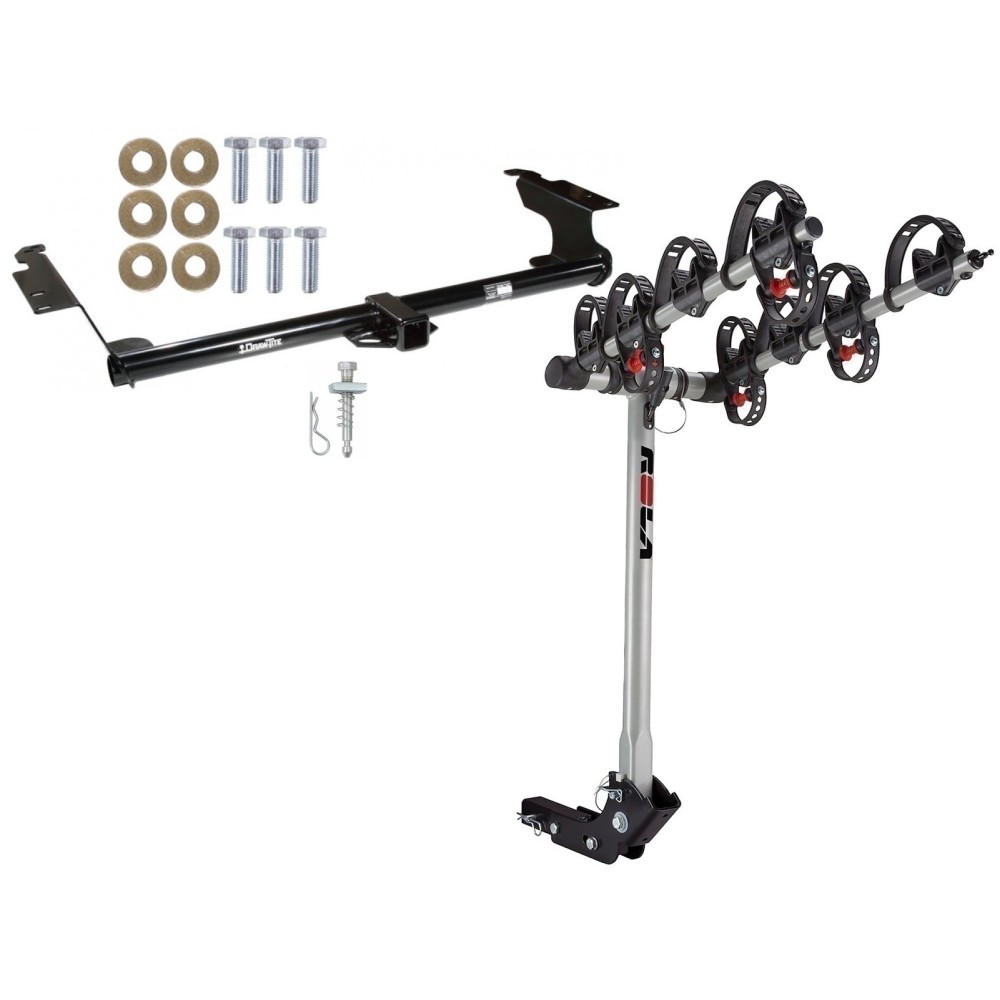

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1999 - 2017 Honda, Odyssey, All Styles

Trailer Hitch Specs:

Part Number	75270
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	59401
Brand	Rola
Finish	Black Powdercoat
Number of Bikes	4
Capacity	100 lbs
Application	Fits 2" receivers
Weight	33 lbs.
Warranty	5 Year Warranty
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017

See Full Description

$326 ²² $679.48 52% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$679.48 $326 ²²

Pay in 4 interest-free installments of $81.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $81.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75270 59401
Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	5,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	675 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	675 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75270
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	59401
Brand	Rola
Finish	Black Powdercoat
Number of Bikes	4
Capacity	100 lbs
Application	Fits 2" receivers
Weight	33 lbs.
Warranty	5 Year Warranty
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75270 , 59401 , Draw-Tite , Trailer , Tow , Hitch , 99-17 , Honda , Odyssey , 4 , Bike , Carrier , Rack , 99 , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017

Get Expert Help

Trailer Tow Hitch For 99-17 Honda Odyssey w/ 4 Bike Carrier Rack Install Notes

Installation Instructions for Honda Odyssey
(1999-2004 and 2005 & Later Models)

Part Numbers:

75270
44174
CQT75270

Applications:

Honda Odyssey (1999-2004 and 2005 & Later Models)

Tools Required:

Wrenches: 19mm
Drill Bits: None

Wiring Access Location:

SUV3

Step-by-Step Instructions:

For 1999-2004 Models:

Remove Appearance Panel:
- If present, remove the plastic appearance panel covering the driver’s side frame rail.
- Return the appearance panel and fasteners to the vehicle owner.
Lower Exhaust:
- Lower the vehicle exhaust to allow for hitch installation.
Install Hitch:
- Raise the hitch into position.
- Install the six (6) M12 fasteners and blocks using the forward slots on the hitch side brackets.
Reinstall Exhaust:
- Reinstall the vehicle exhaust to its original position.

For 2005 & Later Models:

Lower Exhaust:
- Lower the vehicle exhaust to allow for hitch installation.
Install Hitch:
- Raise the hitch into position.
- Install the six (6) M12 fasteners and blocks as shown in the diagram.
Reinstall Exhaust:
- Reinstall the vehicle exhaust to its original position.

Hardware List:

(6) M12 x 1.25 x 35mm CL8.8 Bolts
(6) 1/4” x 1-1/2” x 3” Blocks
(6) 1/2” Conical Washers

Torque Specifications:

Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
