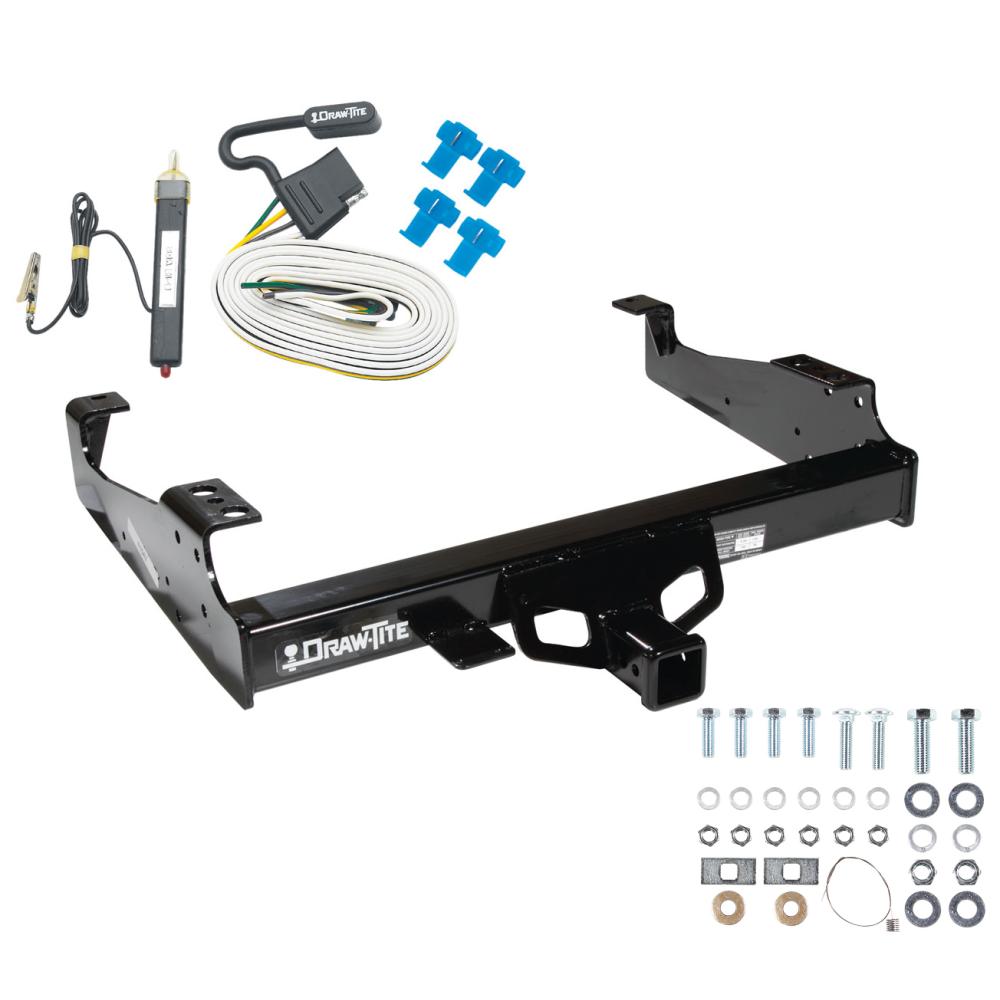

- Includes: Class 4 Trailer Tow Hitch, Wiring Connector
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 99-23 F-450 F-550 99-00 F-350 Super Duty Cab and Chassis w/ Wiring Harness Kit Install Notes
Installation Instructions for Ford F-350, F-450, & F-550 with 34" Frame
Part Numbers:
- 41547
Wiring Access Location:
- Not specified
Tools Required:
- 3/4” Socket
- 15/16” Socket
- 15/16” Wrench
- 5/8” Drill
- 2 Clamps
- Torque Wrench
Step-by-Step Instructions:
-
Position Hitch:
- Hold the hitch up under the frame.
- Position the holes in the brackets over the rivet heads at the rear of the frame.
- Clamp the hitch in place to prevent movement.
-
Install Carriage Bolts:
- Insert 1/2” carriage bolts with bolt plates through the holes in the frame beside the spring hangers.
- Use 1/2” serrated washers, 1/2” lock washers, and 1/2” nuts to secure the bolts.
- If access is limited due to gas tank placement, screw the bolt onto the pull wire and guide it through a more open area in the frame to the hole.
-
Drill Rear Holes:
- Using the rear holes in the bracket as a guide, drill 5/8” holes into the bottom of the frame.
- Install 5/8” bolts with 5/8” flat washers through the drilled holes and secure them with 5/8” flat washers, 5/8” lock washers, and 5/8” nuts.
-
Tighten Fasteners:
- Torque 1/2” nuts to 70 lb-ft.
- Torque 5/8” nuts to 115 lb-ft.
Torque Specifications:
- 1/2” nuts: 70 lb-ft
- 5/8” nuts: 115 lb-ft

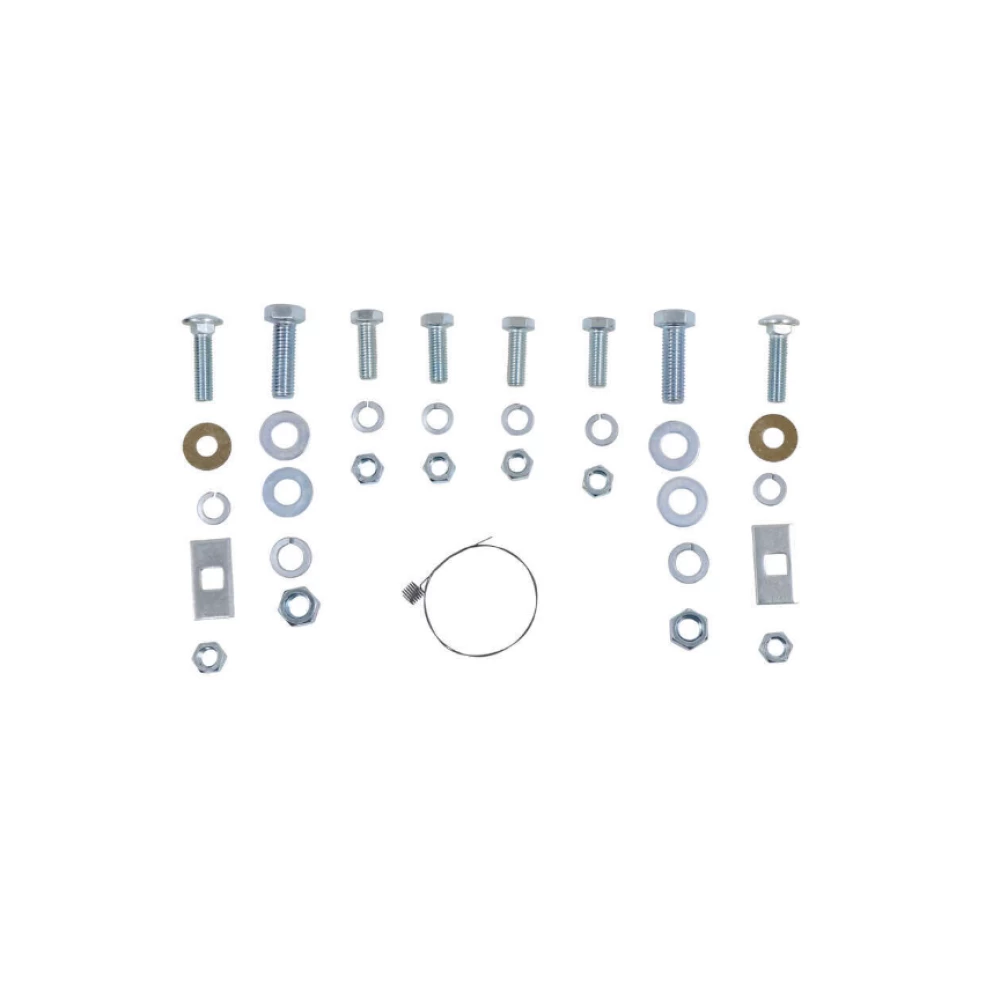

Hardware List:
- (4) 1/2” Carriage Bolts
- (4) Bolt Plates
- (4) 1/2” Serrated Washers
- (4) 1/2” Lock Washers
- (4) 1/2” Nuts
- (2) 5/8” Hex Bolts
- (2) 5/8” Flat Washers
- (2) 5/8” Lock Washers
- (2) 5/8” Nuts
- (1) 1/2” Pull Wire (Part# 55392)
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld the hitch for modifications.
- Frequently check the hitch to ensure all fasteners are securely tightened.
- If the hitch is removed, plug all holes in the vehicle’s body panels to prevent water or exhaust fumes from entering.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb
- Max Tongue Weight: 1,200 lb
Additional Notes:
- Complies with VESC Regulation V-5 and New York State safety standards.
- For warranty issues, refer to Towing Products at the provided address.
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
