Trailer Tow Hitch Hardware Bolt Fastener Kit For 07‑14 Toyota FJ Cruiser
Model: HWKIT3(75461F)2007 - 2014 Toyota, FJ Cruiser, All Styles
(Hardware kits ship from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75461 44545 87412
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$89.21 $56 48
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75461F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Be the first to ask a question.
Description
2007 - 2014 Toyota, FJ Cruiser, All Styles
(Hardware kits ship from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75461 44545 87412
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch Hardware Bolt Fastener Kit For 07-14 Toyota FJ Cruiser Install Notes
Installation Instructions for Toyota FJ Cruiser
Part Numbers:
- 44545
- 75461
- 87412
Tools Required:
- Wrenches: 19mm, 3/4"
- Torque Wrench
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- If present, remove the tie-down bracket from the vehicle frame rail.
- Discard the original bolts but retain the tie-down bracket for reinstallation with new hardware.
-
Install Carriage Bolt and Block:
- Use the provided pull wire to feed the carriage bolt and block through the slots in the side of the frame rails.
-
Position Hitch:
- Raise the hitch into position.
- If necessary, lift the bumper mounting bracket over the fascia for proper alignment.
- Secure the hitch with M12 bolts and conical washers into the existing weldnuts, ensuring that bolts are not pushed into the frame.
-
Hand-Tighten Bolts:
- Hand-tighten all bolts to hold the hitch in place.
-
Torque Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- 1/2-13 GR5 fasteners: 75 lb-ft
- M12 CL10.9 fasteners: 75 lb-ft
- Use a torque wrench to tighten all fasteners to the following specifications:

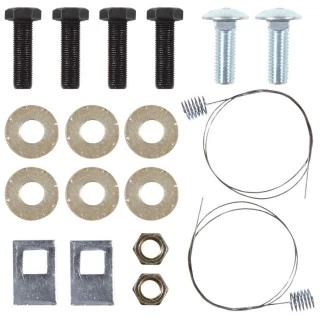

Hardware List:
- (4) M12 Hex Bolts
- (6) Conical Washers
- (2) 1/2-13 Carriage Bolts
- (2) 1/2-13 Hex Nuts
- (2) 1” x 1.5” Spacer Blocks
- (2) Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 6,000 lbs, Max Tongue Weight 600 lbs
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
