Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75492F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 00-06 BMW X5 All Styles 2" Towing Receiver Class 3 Install Notes
Installation Instructions for BMW X5
Part Numbers:
- 75492
- 87405
- 44178
Tools Required:
- Wrenches: 8mm, 13mm, 17mm, T50, T55, 3/4"
- Drill Bits: 1/2", 11/16"
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Bumper and Fascia:
- Detach the bumper and fascia by removing six (6) fasteners as shown in Figure 2.
- For vehicles with a fascia door, remove or trim the door as per the template provided. Get approval from the vehicle owner before trimming.
-
Remove Rear Crossmember Bolts:
- Remove the six (6) M10 fasteners from the rear attachment crossmember. Return the bolts to the vehicle owner.
-
Mark Crossmember for Drilling:
- Measure 1-1/8" forward from the rear edge of the forward attachment crossmember and mark a line near the center (not centered on the crossmember). Refer to Figure 3.
-
Install Hitch Temporarily:
- Raise the hitch into position and install the two (2) outer M10 fasteners finger-tight. Do not torque at this stage.
-
Drill Mounting Holes:
- Using the hitch as a template, drill a 1/2" hole in the crossmember at the marked line. Then, expand the hole to 11/16" with a larger drill bit.
-
Install Rivet Nut:
- Use a rivet nut tool or the supplied hardware to install the rivet nut into the drilled hole. Tighten the 1/2-13 hex bolt to 45 lb-ft to seat the rivet nut securely. Then remove the bolt, flat washer, and lock washer.
-
Reinstall Hitch and Secure Fasteners:
- Raise the hitch back into position and loosely install the six (6) M10 fasteners into the crossmember as shown in Figure 1.
- Loosely install the forward attachment fasteners.
-
Tighten All Fasteners:
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m).
-
Reinstall Bumper and Fascia:
- Reattach the bumper and fascia. Trim the fascia as required around the hitch using the provided template.

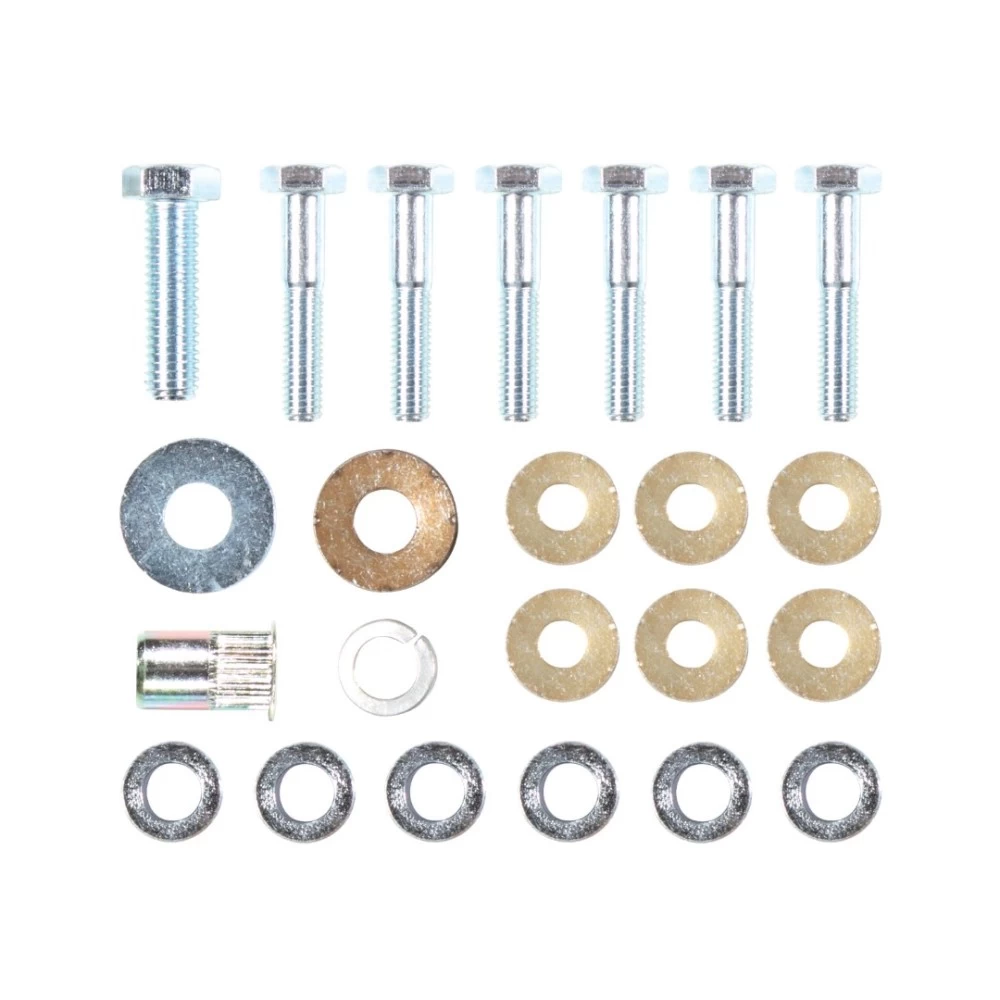

Hardware List:
- (6) M10 x 1.50 x 50mm CL8.8 Hex Bolts
- (6) 3/8" Conical Toothed Washers
- (1) 1/2-13 x 1.75" Hex Bolt
- (1) 1/2" Conical Toothed Washer
- (1) 1/2" Flat Washer
- (1) 1/2" Lock Washer
- (1) 1/2" Rivet Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
