Trailer Tow Hitch Hardware Fastener Kit For 00‑09 LeSabre Lucerne Aurora Bonneville 1‑1/4" Receiver
Model: HWKIT2(36309F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2000 - 2005 Buick, LeSabre, All Styles
2000 - 2005 Pontiac, Bonneville, All Styles
2001 - 2003 Oldsmobile, Aurora, All Styles
2006 - 2009 Buick, Lucerne, Except Super & Special Edition
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36309 06976 90140
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
$46 55 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36309F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2000 - 2005 Buick, LeSabre, All Styles
2000 - 2005 Pontiac, Bonneville, All Styles
2001 - 2003 Oldsmobile, Aurora, All Styles
2006 - 2009 Buick, Lucerne, Except Super & Special Edition
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36309 06976 90140
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 00-09 LeSabre Lucerne Aurora Bonneville 1-1/4" Receiver Install Notes
Installation Instructions for Pontiac Bonneville, Buick LeSabre, Buick Lucerne (Excluding Super & Special Edition), and Oldsmobile Aurora
Part Numbers:
- 06976
- 36309
- 90140
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 15mm, 17mm, 9/16", 3/4"
- Drill with 1/2" Drill Bit
- Tin Snips
Step-by-Step Instructions:
-
Remove Exhaust Hanger Bracket:
- Detach the exhaust hanger bracket from the bottom of the frame rail.
- Disconnect the bracket from the rubber hanger attached to the exhaust tailpipe.
- Return the factory exhaust brackets to the vehicle owner.
- Replacement brackets will be installed later.
-
Raise Hitch and Drill Holes:
- Raise the hitch into position and use it as a template to drill two (2) 1/2" holes in the frame rail.
-
Trim Heat Shield (if applicable):
- If the vehicle is equipped with a heat shield:
- Remove and discard the rearmost fastener securing the heat shield to the frame rail.
- Trim the heat shield around the drilled hole as shown in Figure 2.
- If the vehicle is equipped with a heat shield:
-
Trim Load Leveling Control Housing (if applicable):
- For vehicles with automatic load leveling control:
- Remove the rearmost fastener securing the load leveling control housing to the frame rail and discard.
- Trim the load leveling control housing as shown in Figure 3.
- For vehicles with automatic load leveling control:
-
Install Hardware:
- Lower the hitch and fishwire the carriage bolts and blocks through the drilled holes and into position.
- Raise the hitch back into position and install the remaining fasteners as shown in Figure 1.
- If equipped with a heat shield, ensure it is sandwiched between the frame and the hitch side bracket during installation.
-
Attach Replacement Hanger Brackets:
- Install the replacement exhaust hanger brackets:
- Insert a 3/8-16 x 2" carriage bolt through the square hole in the hanger bracket to the bottom of the frame rail.
- Slide the rubber hanger onto the 3/8" carriage bolt and secure it with a flanged locknut.
- Tighten the nut against the rubber hanger, allowing the hanger to rotate freely (do not overtighten).
- Install the replacement exhaust hanger brackets:
-
Tighten Fasteners:
- Torque all 1/2" GR5 fasteners to 75 lb-ft (102 N*m).
- Torque all M10 CL9.8 fasteners to 53 lb-ft (72 N*m).
- Torque all 3/8" GR5 fasteners to 31 lb-ft (41 N*m).

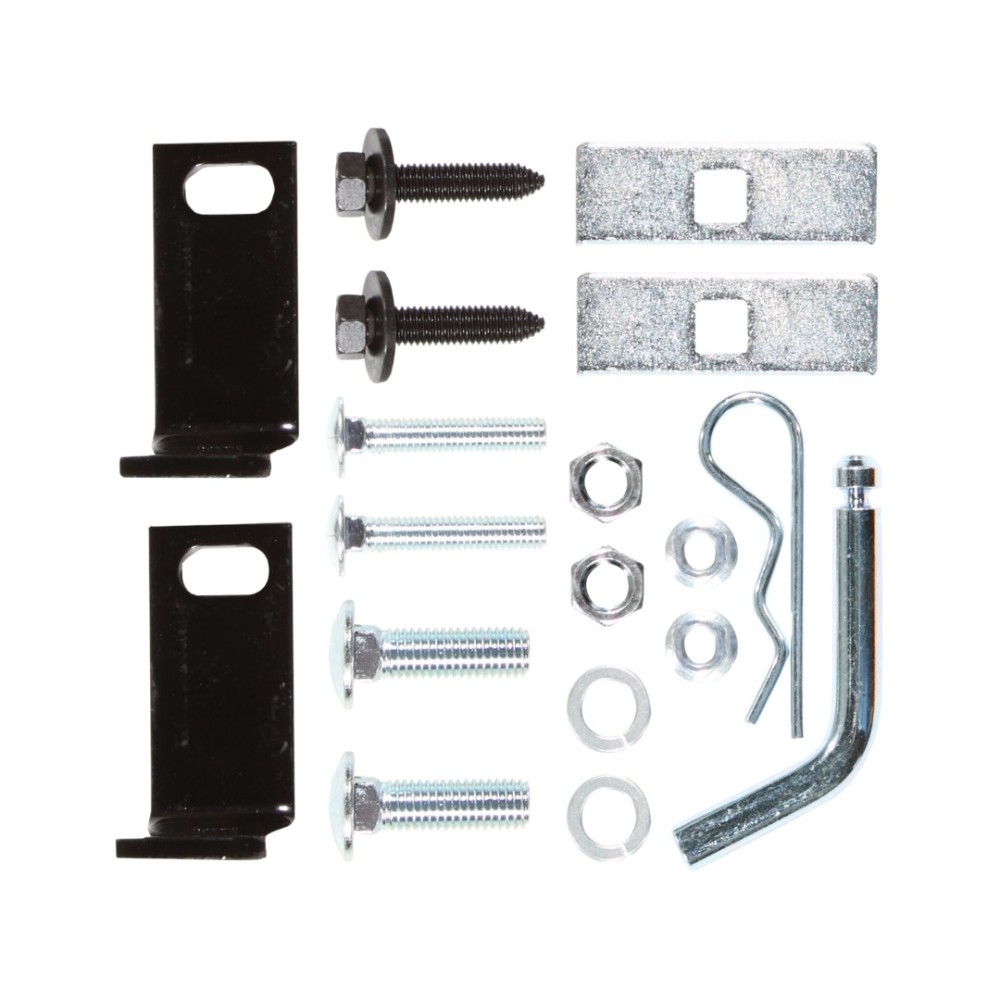

Hardware List:
- (2) M10 x 1.50 x 45mm Bolts (CL9.8)
- (2) Carriage Bolt, 1/2"-13 x 1.75" (GR5)
- (2) Carriage Bolt, 3/8"-16 x 2" (GR5)
- (2) Spacer Block, 1/4" x 1" x 3"
- (2) Lock Washer, 1/2"
- (2) Flanged Locknut, 3/8"-16
- (2) Hex Nut, 1/2"-13
- (2) Replacement Exhaust Hanger Brackets
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- Wear eye protection and observe safety precautions when working beneath the vehicle.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Additional Notes:
- Drawbar Kit: 36063 (sold separately)
- Fastener Kit: F36309
