Trailer Tow Hitch Hardware Fastener Kit For 01‑06 Acura MDX 03‑08 Honda Pilot Class 3 2" Receiver
Model: HWKIT3(75599F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2006 Acura, MDX, Except w/Full Size Spare Tire
2003 - 2008 Honda, Pilot, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75599 44589 87454
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 2001 2002 2003 2004 2005 2006 2007 2008
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75599F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2006 Acura, MDX, Except w/Full Size Spare Tire
2003 - 2008 Honda, Pilot, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75599 44589 87454
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 2001 2002 2003 2004 2005 2006 2007 2008
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 01-06 Acura MDX 03-08 Honda Pilot Class 3 2" Receiver Install Notes
Installation Instructions for Acura MDX and Honda Pilot
(Fits with mini spare tire. Will not fit with full-size spare.)
Part Numbers:
- 44589
- 75599
- 87454
Tools Required:
- Wrenches: 10mm, 14mm, 17mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV3
Notes:
- A transmission cooler and power steering cooler are required for maximum towing capacity. Refer to the vehicle owner’s manual for details.
Step-by-Step Instructions:
For 2001-2003 Acura MDX and 2001+ Honda Pilot:
-
Remove Tow Hook:
- Remove the tow hook from the driver’s side of the vehicle.
- Return the hook and fasteners to the vehicle owner.
-
Lower the Exhaust:
- Detach three (3) rubber muffler hangers to lower the exhaust.
-
Position the Hitch:
- Raise the hitch into position and align it with the existing weldnuts on the frame.
- Secure the hitch using the provided fasteners.
-
Reinstall Exhaust:
- Reattach the muffler hangers.
-
Adjust Heat Shield (if needed):
- If an exhaust rattle occurs, trim the rearward exhaust heat shield between the cross tube and muffler.
For 2004 Acura MDX:
-
Remove Tow Hook:
- Follow the same steps as outlined above.
-
Remove Fascia Covering:
- Remove the fascia under-covering by detaching bolts and clips.
- Return the cover and fasteners to the vehicle owner.
-
Lower the Exhaust:
- Detach four (4) rubber muffler hangers to lower the exhaust.
-
Position the Hitch:
- Raise the hitch into position and secure it using the provided fasteners.
-
Reinstall Exhaust:
- Reattach the muffler hangers.

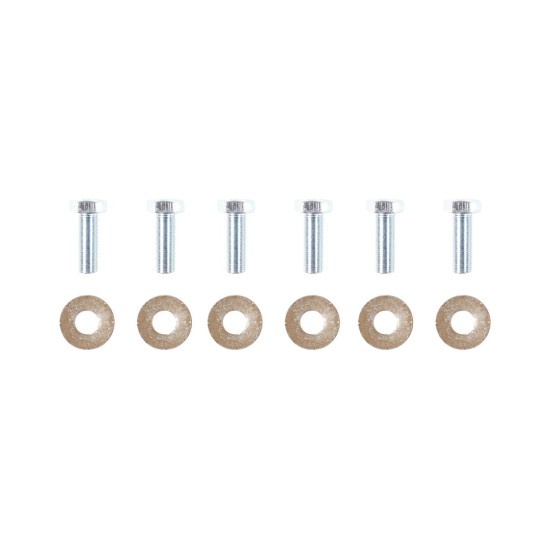

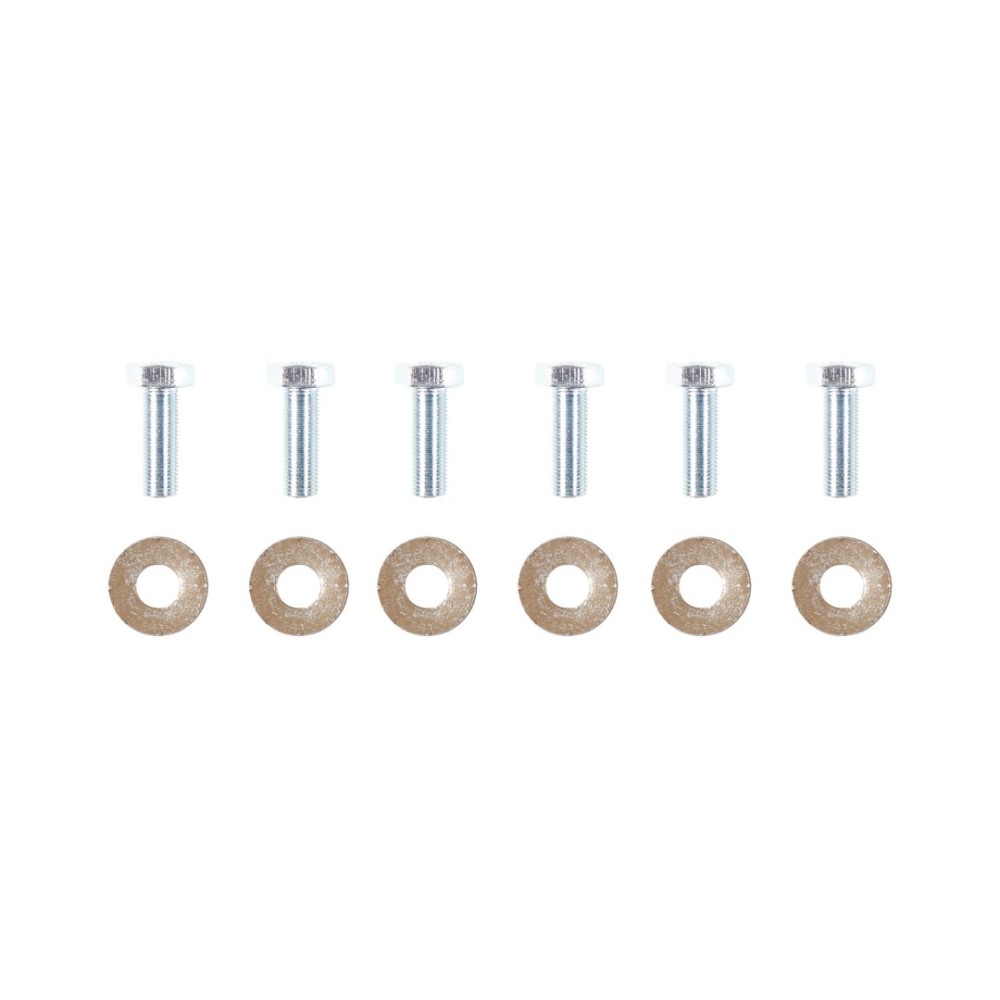

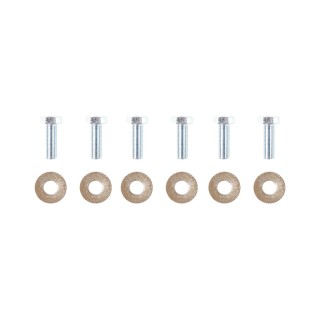

Hardware List:
- (6) M12 x 1.25 x 35mm CL8.8 Hex Bolts
- (6) 1/2" Conical Washers
Torque Specifications:
- Tighten all M12 x 1.25 CL8.8 fasteners to 68 lb-ft (92 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
