Trailer Tow Hitch Hardware Fastener Kit For 03‑11 Honda Element 2" Towing Receiver
Model: HWKIT3(75659F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2003 - 2011 Honda, Element, All Styles, Including SC
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75659 87506 44612
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 2003 2004 2005 2006 2007 2008 2009 2010 2011
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75659F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2003 - 2011 Honda, Element, All Styles, Including SC
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75659 87506 44612
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 2003 2004 2005 2006 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 03-11 Honda Element 2" Towing Receiver Install Notes
Installation Instructions for Honda Element (2003-2008, including SC model)
Part Numbers:
- 75659
- 87506
- 44612
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Wiring Access Location:
- 2003-2004: SUV2
- 2005 and later: SUV1-2
Step-by-Step Instructions:
-
Install 1/2" Bolts and Washers:
- Insert 1/2"-13 x 5-1/2" Grade 5 hex bolts and 1/2" flat washers from the outside of the vehicle frame.
- Place tube spacers and 3/4" flat washers inside the frame.
- Ensure bolts barely stick through; repeat on both sides of the vehicle.
-
Raise the Hitch:
- Carefully lift the hitch into position without dislodging washers installed in Step 1.
- Alternatively, slide the 3/4" flat washers into place after raising the hitch. Washers should go over tube spacers between the vehicle frame and hitch brackets.
-
Secure Hitch Bolts:
- Push 1/2" bolts through the hitch brackets on both sides.
- Ensure 3/4" flat washers are correctly positioned over the tube spacers and between the inside of the frame and outside of the hitch bracket.
- Install 1/2" conical toothed washers and hex nuts. Loosely tighten.
-
Install U-Bolt:
- Place the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket.
- Install 3/8" flanged hex locknuts on the U-bolt, ensuring even tightening.
-
Torque Fasteners:
- Tighten the U-bolt first to 30 lb-ft (41 N·m).
- Torque all 1/2"-13 Grade 5 bolts to 75 lb-ft (102 N·m).

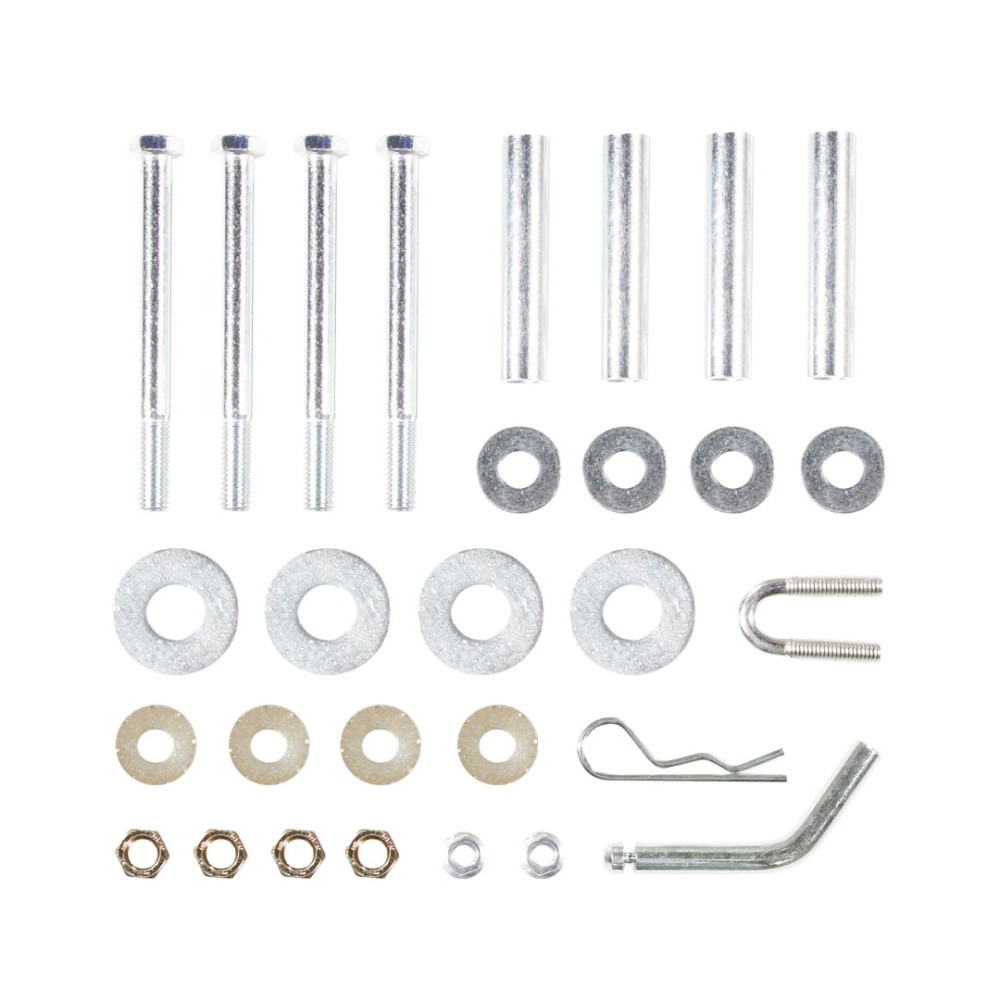

Hardware List:
- (4) 1/2"-13 x 5-1/2" Grade 5 Hex Bolts
- (4) Tube Spacers
- (4) 1/2" Flat Washers
- (4) 1/2" Conical Toothed Washers
- (4) 1/2" Hex Nuts
- (1) 3/8" U-Bolt
- (2) 3/8" Flanged Hex Locknuts
- (4) 3/4" Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- SC model requires trimming of the plastic bumper fascia.
