Trailer Tow Hitch Hardware Fastener Kit For 06‑11 Hyundai Accent Elantra KIA Rio5 1‑1/4" Receiver
Model: HWKIT1(24795F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2006 - 2011 KIA, Rio5, 5 Dr. Hatchback
2007 - 2011 Hyundai, Accent, 3 Dr. Hatchback
2007 - 2010 Hyundai, Elantra, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24795 60872 77167
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 2006 2007 2008 2009 2010 2011
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24795F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2006 - 2011 KIA, Rio5, 5 Dr. Hatchback
2007 - 2011 Hyundai, Accent, 3 Dr. Hatchback
2007 - 2010 Hyundai, Elantra, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24795 60872 77167
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 2006 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 06-11 Hyundai Accent Elantra KIA Rio5 1-1/4" Receiver Install Notes
Installation Instructions for Hyundai Elantra, Hyundai Accent 3-Door, and Kia Rio 5
Part Numbers:
- 60872
- 24795
- 77167
Wiring Access Location:
- Hyundai Elantra and Kia Rio 5: PC3, PC4
- Hyundai Accent: PC1, PC2
Tools Required:
- Wrenches: 17mm, 19mm
- Small Phillips Tip Screwdriver
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Plastic Supports:
- Use a Phillips screwdriver to unscrew plastic screws while applying pressure on the opposite side. Remove both pieces of plastic from the support straps.
-
Trim Fascia Tab (Elantra and Rio 5 only):
- Trim the center fascia tab as shown in Figure 2. Obtain vehicle owner’s approval before cutting.
-
Lower Exhaust:
- Remove the rubber exhaust hanger to lower the vehicle’s exhaust system.
-
Position Hitch (Passenger Side First):
- Lift the passenger side of the hitch into position, placing the crosstube over the tailpipe. Rotate the side bracket into place on the outside of the frame rail. Gently pull the fascia out of the way to assist installation (refer to Figure 2).
-
Position Hitch (Driver’s Side):
- Lift the driver’s side of the hitch into position on the outside of the frame rail and in front of the bulkhead. Pull the fascia out of the way to assist installation.
-
Install Fasteners:
- Install the fasteners as shown in Figure 1. Hand-tighten all bolts before fully securing.
-
Align and Tighten Hitch:
- Push the hitch toward the rear of the vehicle to align it properly. Tighten all fasteners to the specified torque settings:
- M10 CL8.8 bolts: 42 Lb.-Ft. (57 N*M)
- M12 CL8.8 bolts: 76 Lb.-Ft. (103 N*M)
- Push the hitch toward the rear of the vehicle to align it properly. Tighten all fasteners to the specified torque settings:
-
Reattach Exhaust:
- Secure the rubber muffler hanger back into place.
-
Reattach Fascia Tabs:
- Replace any removed fascia tabs.

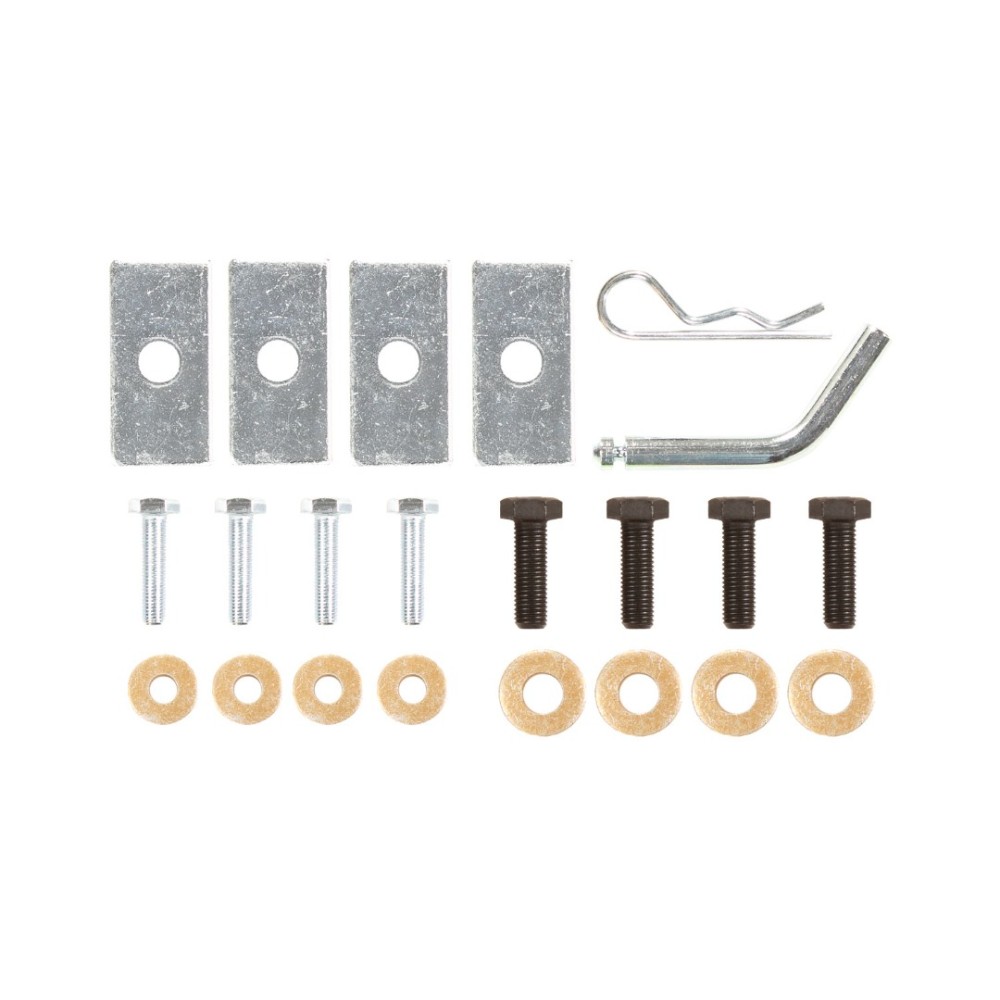

Hardware List:
- (4) M12 x 1.25 x 40mm CL8.8 Bolts
- (4) Conical Washers: 3/8”
- (4) Conical Washers: 1/2”
- (4) Spacers: 3/8” x 1-1/2” x 3”
- (4) M10 x 1.25 x 40mm CL8.8 Bolts (Rio 5 and Accent only)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Minor fascia trimming is required for Elantra and Rio 5. Obtain vehicle owner’s approval before making modifications.
- Check the hitch frequently to ensure all fasteners remain tight.
