Trailer Tow Hitch Hardware Fastener Kit For 06‑15 Honda Civic Coupe Sedan Si Hybrid 1‑1/4" Receiver
Model: HWKIT1(24763F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2006 - 2015 Honda, Civic, 2 Dr. Coupe, Except Si
2006 - 2015 Honda, Civic, 4 Dr. Sedan, Except Hybrid & Si
2006 - 2015 Honda, Civic, Hybrid
2006 - 2011 Honda, Civic, Si, 2 Dr. Coupe
2006 - 2011 Honda, Civic, Si, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24763 77139 60882
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
$38 00 $44.64 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $38 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24763F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2006 - 2015 Honda, Civic, 2 Dr. Coupe, Except Si
2006 - 2015 Honda, Civic, 4 Dr. Sedan, Except Hybrid & Si
2006 - 2015 Honda, Civic, Hybrid
2006 - 2011 Honda, Civic, Si, 2 Dr. Coupe
2006 - 2011 Honda, Civic, Si, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24763 77139 60882
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 06-15 Honda Civic Coupe Sedan Si Hybrid 1-1/4" Receiver Install Notes
Installation Instructions for Honda Civic (Including SI & Hybrid Models)
Part Numbers:
- 77139
- 24763
- 60822
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 9/16", 10mm
- Drill Bits: 1/2” (Required for some models)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.
-
Remove Heat Shield (Passenger Side):
- Detach the four (4) bolts securing the exhaust heat shield to the vehicle. Retain the bolts for reinstallation.
-
Remove Plastic Shroud (Driver Side):
- Remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain for reinstallation.
-
Position Hitch:
- Raise the hitch into position with the frame bracket flanges positioned:
- Between the frame rail and plastic shroud on the driver’s side.
- Between the frame rail and exhaust heat shield on the passenger’s side.
- Ensure tailpipe tangs are above the hitch bar. For some vehicles, remove the chrome decorative ring from the tailpipe to slide the muffler toward the vehicle center for better wrench access.
- Raise the hitch into position with the frame bracket flanges positioned:
-
Install Handle Nuts and Fasteners:
- Insert 1/2”-13 handle nuts through the large holes in the frame rails.
- Install the provided fasteners as shown in the instructions.
-
Install U-Bolt:
- Insert the 3/8”-16 U-bolt through the tow hook and mount it to the hitch using the provided fasteners.
-
Tighten Fasteners:
- Torque all 1/2”-13 fasteners to 50 Lb.-Ft. (68 N*M).
- Torque all 3/8”-16 fasteners to 20 Lb.-Ft. (27 N*M).
-
Reinstall Components:
- Reinstall the exhaust heat shield over the hitch.
- Reattach the exhaust to its hanger.
- Replace the plastic rivet and nut securing the plastic shroud on the driver’s side.
- Trim the heat shield if required to fit around the hitch.
- Reinstall the chrome decorative ring to the tailpipe, if removed.

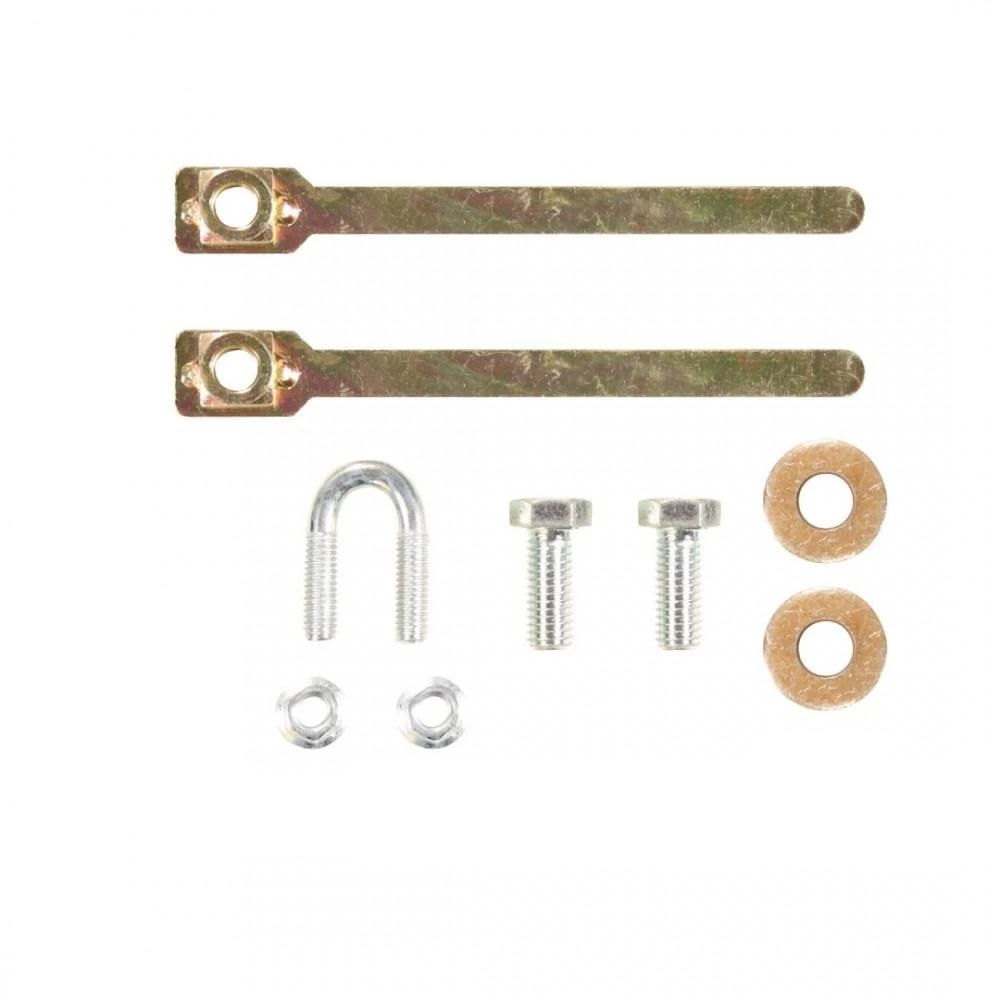

Hardware List:
- (2) 1/2”-13 GR5 Hex Bolts
- (1) 3/8”-16 GR2 U-Bolt
- (2) 1/2” Conical Toothed Washers
- (2) 3/8”-16 Flanged Lock Nuts
- (2) 1/2”-13 Handle Nuts
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
