Trailer Tow Hitch Hardware Fastener Kit For 07‑12 Nissan Sentra 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24794F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2007 - 2012 Nissan, Sentra, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24794 60871 77166
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24794F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2007 - 2012 Nissan, Sentra, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24794 60871 77166
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 07-12 Nissan Sentra 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Nissan Sentra
Part Numbers:
- 24794
- 60871
- 77166
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4”
- Drill Bits: 1/2”
- Pull Wire (Provided)
- Sealant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Spare Tire and Jack:
- Take out the spare tire and jack from the trunk.
-
Remove Plastic Rivets:
- Detach the two plastic rivets securing the fascia tabs to the vehicle. Use a screwdriver to remove the center of each rivet. Save the rivets for reinstallation.
-
Scrape Undercoating:
- Remove the undercoating from the bottom surface of the trunk reinforcement to ensure proper contact with the hardware.
-
Fishwire Carriage Bolt and Spacer:
- Attach the pull wire to a 1/2”-13 x 2” carriage bolt and a square hole spacer.
- Insert the assembly through the slot located behind the trunk reinforcement and pull it through to ensure the bolt and spacer are flat against the bottom.
-
Position Reinforcement Plate:
- Place the reinforcement plate inside the spare tire well, aligning the 1-1/2” length with the bottom of the trunk. Position it between the ribs as shown in the diagram.
-
Drill Holes:
- Drill two 1/2” holes through the trunk pan, using the reinforcement plate as a guide.
-
Install Carriage Bolts:
- Insert two carriage bolts through the reinforcement plate and the drilled holes.
- Place round hole spacers over the bolts on the opposite side of the bulkhead.
-
Attach Hitch:
- Lift the hitch into position, ensuring the spacers are sandwiched between the bulkhead and the hitch.
- Loosely secure the hitch with conical washers and hex nuts.
-
Attach to Trunk Reinforcement:
- Secure the hitch’s crossbar to the trunk reinforcement using conical washers and hex nuts.
-
Tighten Fasteners:
- Center the hitch on the vehicle.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Apply Sealant:
- Seal the carriage bolt attachment points inside the spare tire well to prevent water or exhaust fumes from entering the vehicle.
-
Reattach Components:
- Reinstall the plastic rivets to the fascia tabs.
- Replace the spare tire and jack in the trunk.

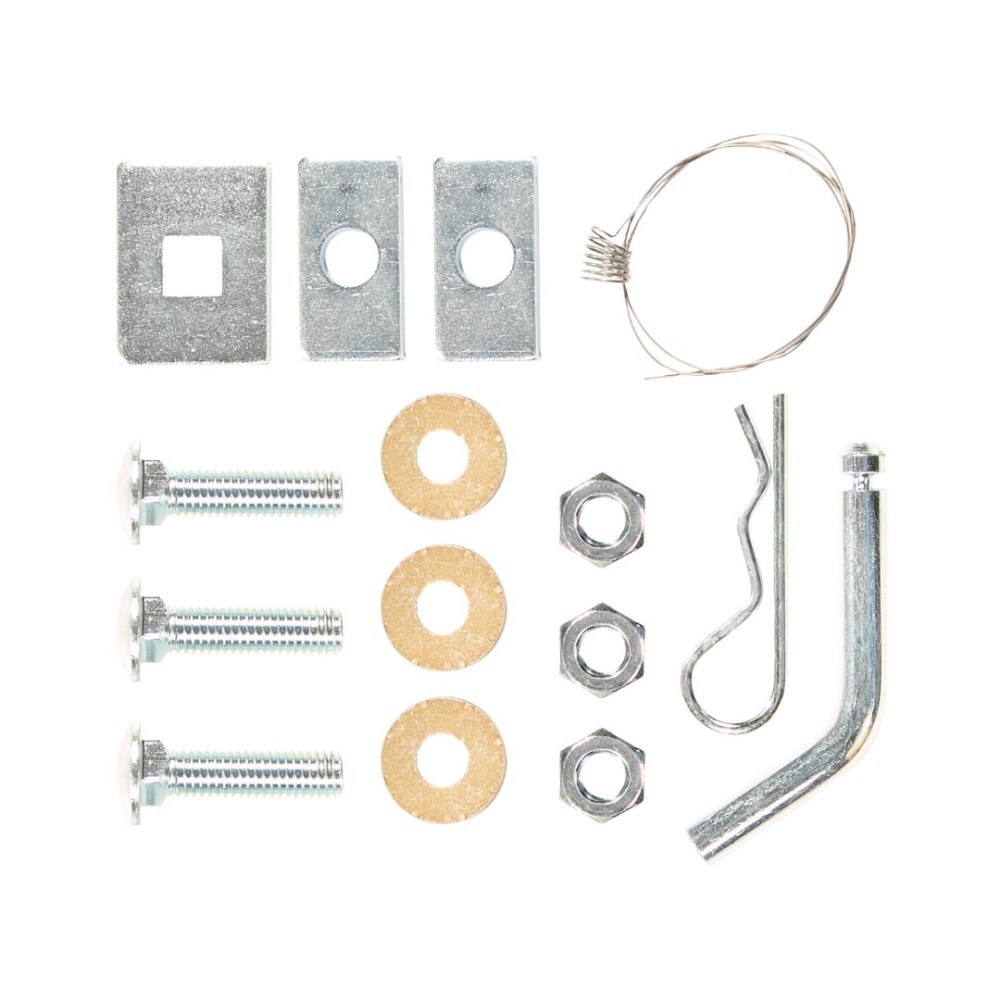

Hardware List:
- (3) Carriage Bolts: 1/2”-13 x 2” GR5
- (1) Spacer: 1/4” x 1-1/2” x 2” (Square Hole)
- (2) Spacers: 1/4” x 1” x 2” (Round Hole)
- (3) Conical Washers
- (3) Hex Nuts: 1/2”-13
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
