Trailer Tow Hitch Hardware Fastener Kit For 07‑14 Chrysler 200 Sebring Dodge Avenger 1‑1/4" Receiver
Model: HWKIT1(24871F)2007 - 2010 Chrysler, Sebring, All Styles
2011 - 2014 Chrysler, 200, 4 Dr. Sedan & Convertible
2008 - 2014 Dodge, Avenger, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24871 60288 77254
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24871F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2007 - 2010 Chrysler, Sebring, All Styles
2011 - 2014 Chrysler, 200, 4 Dr. Sedan & Convertible
2008 - 2014 Dodge, Avenger, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24871 60288 77254
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 07-14 Chrysler 200 Sebring Dodge Avenger 1-1/4" Receiver Install Notes
Installation Instructions for Chrysler Sebring, Dodge Avenger, and Chrysler 200 (Including Convertible Models)
Part Numbers:
- 24871
- 60288
- 77254
Wiring Access Location:
- Sebring: PC3, PC4
- Avenger: PC1, PC2
- Chrysler 200: PC1, PC2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Exhaust Hangers:
- Detach exhaust hangers on both sides. Apply lubricant to the metal hanger rod and rubber isolator to ease removal.
-
Position Hitch:
- Raise the hitch into position.
- Insert two (2) 4-1/2” hex bolts and blocks through the frame and hitch on both sides.
- Install conical washers and 1/2” hex nuts. Hand-tighten only.
-
Install Carriage Bolts and Blocks:
- Use the provided fishwire to guide the carriage bolt and block through the square hole forward on the frame. Keep the bolt and block separate until they are inside the frame.
- Install conical washers and 1/2” nuts. Hand-tighten only.
-
Tighten Fasteners:
- Tighten all (4) 1/2” fasteners to the specified torque:
- Hex bolts: 40 Lb.-Ft.
- Carriage bolts: 75 Lb.-Ft.
- Tighten all (4) 1/2” fasteners to the specified torque:

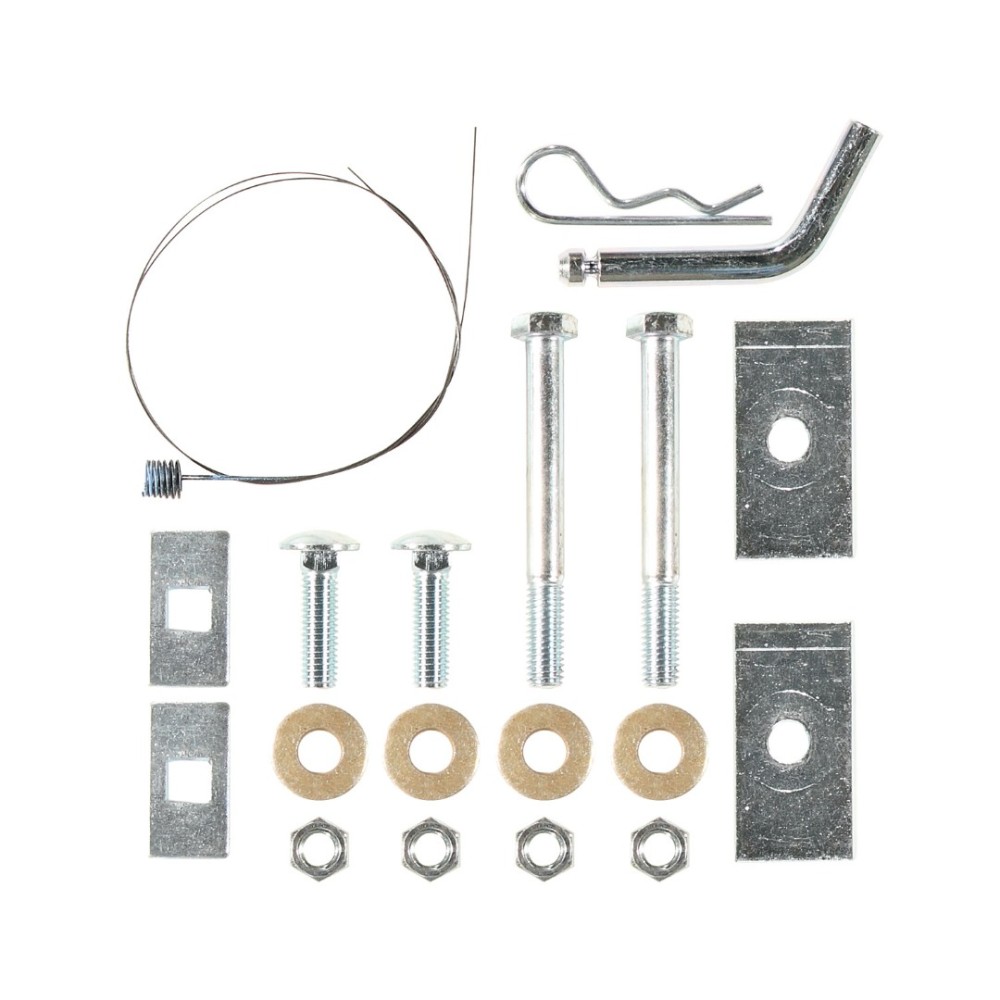

Hardware List:
- (2) 1/2”-13 x 4-1/2” Gr. 5 Hex Bolts
- (2) 1/2”-13 x 1-3/4” Gr. 5 Carriage Bolts
- (4) 1/2” Conical Washers
- (4) 1/2” Hex Nuts
- (2) 1/4” x 1-1/2” x 3” Blocks
- (2) 1/4” x 1” x 2” Blocks
- Fishwire (provided)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Verify alignment of all components before final tightening.
