Trailer Tow Hitch Hardware Fastener Kit For 09‑13 Mazda 6 Sedan 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24832F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2009 - 2013 Mazda, 6, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24832 60222 77205
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 2009 2010 2011 2012 2013
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24832F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2009 - 2013 Mazda, 6, 4 Dr. Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24832 60222 77205
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 2009 2010 2011 2012 2013
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 09-13 Mazda 6 Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 6
Part Numbers:
- 77205
- 60222
- 24832
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”
- Hole Saw: 1-1/8”
- Fish Wire (Provided)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Vehicle:
- Use ramps or a hoist to safely raise the vehicle.
-
Lower Exhaust System:
- Remove the rubber isolators at the muffler(s) and one isolator near the rear suspension.
- Support the exhaust to prevent damage.
-
Remove Fascia Fasteners (for 6-cylinder models):
- If equipped with rear fascia exhaust trim, remove the two black plastic fasteners near the center of the rear panel to allow the fascia to be gently pulled back.
-
Position and Mark Hitch:
- Raise the hitch into position and temporarily install fasteners in the rear panel to locate the hitch.
- Mark the forward-most hole on the frame.
-
Drill Access Hole:
- Lower the hitch and drill a 1-1/8” access hole in the frame at the marked location.
- Paint all bare metal to prevent corrosion.
-
Install Fasteners:
- Fishwire the frame rail fasteners (carriage bolts and blocks) into place through the access hole.
- Leave the fish wires attached.
-
Raise Hitch:
- Lift the hitch into position, routing the fish wires through the hitch mounting holes.
- Carefully remove the fish wires, install the remaining fasteners, and tighten to specifications.
-
Reattach Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
-
Reinstall Fascia Fasteners (if removed):
- Reinstall the black plastic fascia fasteners removed in Step 3.

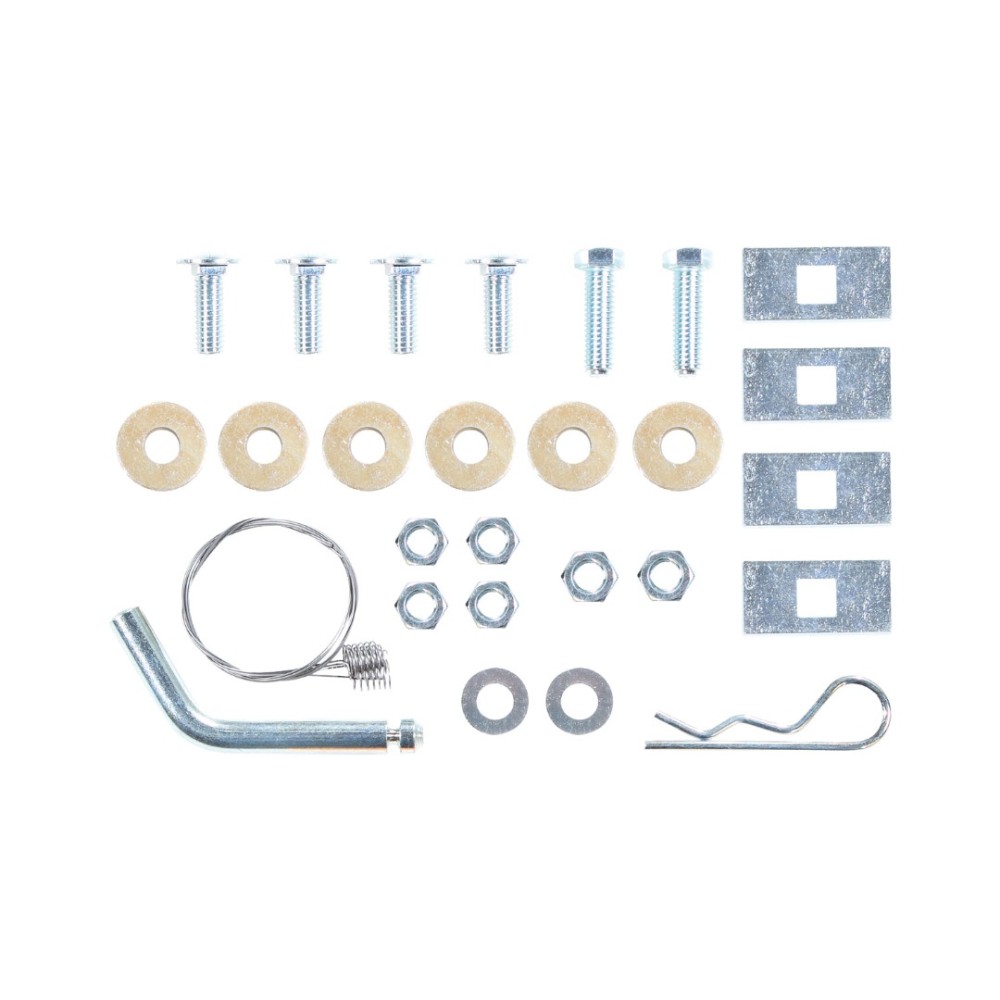

Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (2) Hex Head Bolts: 7/16”-14 x 1-1/2” GR5
- (4) Blocks: 1” x 2” x 3/16”
- (6) Conical Washers: 7/16”
- (2) Flat Washers: 7/16”
- (6) Hex Nuts: 7/16”-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
- Check the hitch frequently to ensure all fasteners remain tight.
