Trailer Tow Hitch Hardware Fastener Kit For 10‑13 Mazda 3 Hatchback 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24843F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2013 Mazda, 3, 5 Dr. Hatchback, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24843 77245 60259
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24843F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2013 Mazda, 3, 5 Dr. Hatchback, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24843 77245 60259
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 10-13 Mazda 3 Hatchback 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 3 5-Door
Part Numbers:
- 24843
- 60259
- 77245
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wire (Provided)
- Wrenches: 11/16", 9/16"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Fishwire Carriage Bolts and Blocks:
- Use the provided pull wires to feed the carriage bolts and spacer blocks into the frame rails through the access holes.
- Leave the pull wires attached for alignment when raising the hitch into position.
-
Position Hitch:
- Raise the hitch into position.
- Thread the pull wires through the adjacent holes in the hitch and remove them.
- Attach flat washers, lock washers, and hex nuts finger-tight only. Ensure fasteners are not pushed back into the frame rail.
-
Install Remaining Fasteners:
- Attach the remaining fasteners as shown in the diagram.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
- Torque all 3/8"-16 GR5 fasteners to 30 Lb.-Ft. (41 N*M).
Hardware List:

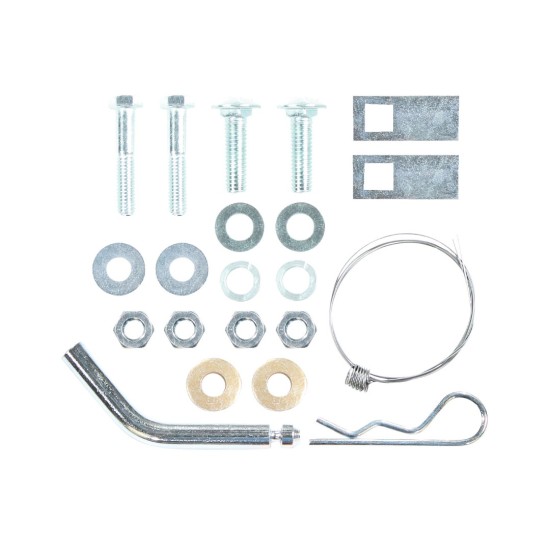

- (2) Carriage Bolts: 7/16"-14 x 1-1/2” GR5
- (2) Hex Bolts: 3/8"-16 x 2.00” GR5
- (2) Spacer Blocks
- (2) Flat Washers: 7/16”
- (2) Lock Washers: 7/16”
- (2) Conical Washers: 3/8”
- (2) Hex Nuts: 7/16”-14
- (2) Hex Nuts: 3/8”-16
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Verify that all bolts and components are properly aligned before final tightening.
