Trailer Tow Hitch Hardware Fastener Kit For 10‑14 VW Volkswagen GTI Hatchback 1‑1/4" Receiver
Model: HWKIT1(24904F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2014 Volkswagen, GTI, Hatchback
2010 - 2012 Volkswagen, GTI, Hatchback (Canada Only)
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24904 60330 77291
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 2010 2011 2012 2013 2014
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24904F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2014 Volkswagen, GTI, Hatchback
2010 - 2012 Volkswagen, GTI, Hatchback (Canada Only)
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24904 60330 77291
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 10-14 VW Volkswagen GTI Hatchback 1-1/4" Receiver Install Notes
Installation Instructions for Volkswagen GTI and Volkswagen Golf GTI (Canada Only)
Part Numbers:
- 24904
- 60330
- 77291
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches/Sockets: 13mm, 18mm, 3/4"
- Drill Bits: None
- Lubricating Spray (recommended)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- On the driver’s side, disconnect the rubber exhaust hanger forward of the muffler using lubricating spray.
- On the passenger side, remove the exhaust hanger bracket by detaching the two M8 fasteners. Discard the M8 fasteners.
-
Modify Heat Shield:
- On the driver’s side, bend or cut the heat shield to expose the hole in the frame rail.
-
Fishwire Carriage Bolts and Spacer Blocks:
- Use the provided pull wire to fish the carriage bolts and spacer blocks through the large access holes in the frame rails and into the attachment holes.
- Follow the reverse fishwire procedure (Figure 2) to guide the bolt and block through the large slot and back down through the same slot.
-
Remove Existing Bolt:
- On the driver’s side, remove the existing M12 bolt at the forward-most attachment point. Retain this bolt for hitch installation. Do not clean threads.
-
Position Hitch:
- Raise the hitch into position, ensuring that the bolts remain in place. Loosely attach the hitch using conical toothed washers and nuts.
-
Install Remaining Fasteners:
- Align the holes in the hitch with the holes in the vehicle. Install the remaining fasteners as shown and tighten them.
-
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all M8 x 1.25 CL9.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all M12 x 1.50 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M).
Hardware List:

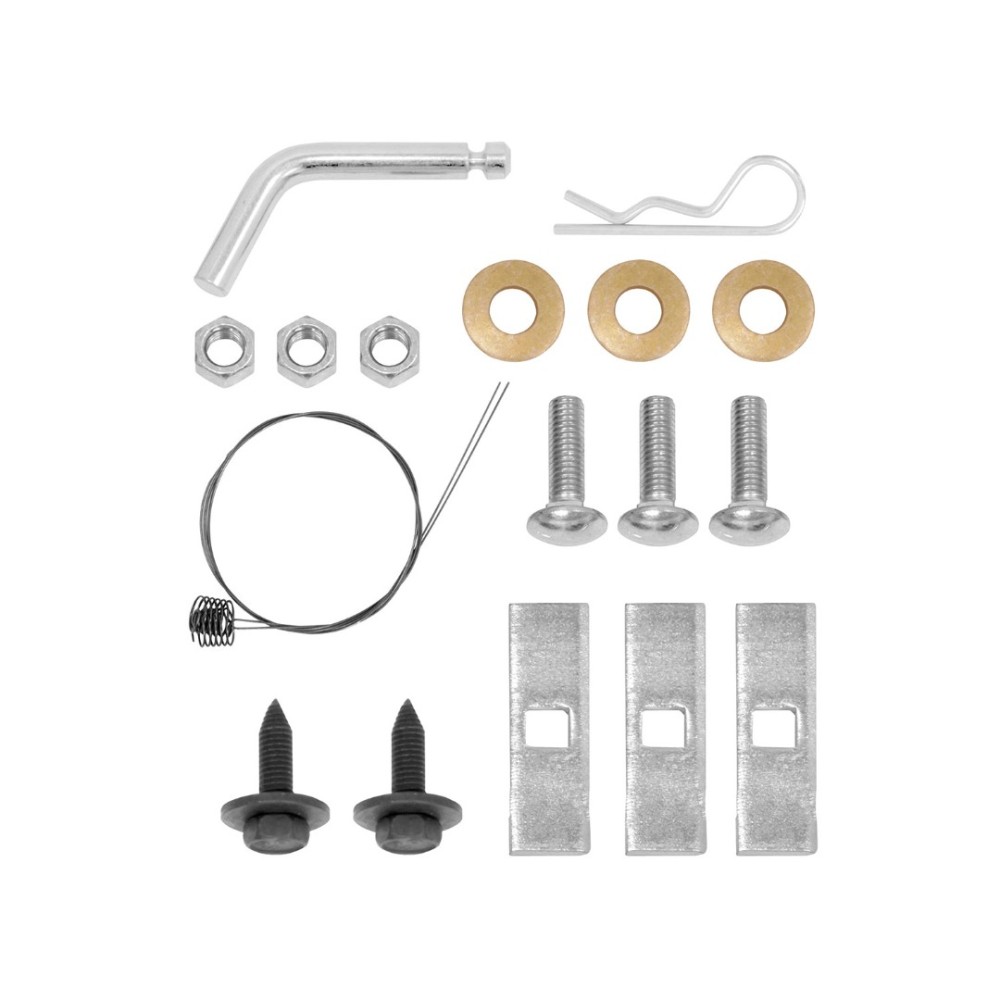

- (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
- (3) Spacer Blocks: 1/4” x 1.00” x 3.00”
- (3) Conical Toothed Washers: 1/2”
- (3) Hex Nuts: 1/2”-13
- (2) Hex Bolts: M8 x 1.25 x 35mm CL9.8
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Observe all torque specifications during installation.
