Trailer Tow Hitch Hardware Fastener Kit For 10‑20 Subaru Legacy Sedan Outback Wagon Tow Receiver
Model: HWKIT3(75673F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2019 Subaru, Legacy, Sedan
2010 - 2019 Subaru, Outback, Wagon, Except Sport
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75673 44631 87568 75159
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 20 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75673F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2019 Subaru, Legacy, Sedan
2010 - 2019 Subaru, Outback, Wagon, Except Sport
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75673 44631 87568 75159
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 20 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 10-20 Subaru Legacy Sedan Outback Wagon Tow Receiver Install Notes
Installation Instructions for Subaru Legacy and Outback
(All Models)
Part Numbers:
- 75673
- 44631
- 87568
- 75159 (U-Haul)
Tools Required:
- Tin Snips
- Spray Lubricant
- Wrenches: 10mm, 11/16”
- Drill Bits: 1-1/8” Hole Saw
Wiring Access Location:
- PC3
Step-by-Step Instructions:
-
Lower the Exhaust:
- Temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one below the rear axle.
- Note: Spray hangers with lubricant to ease removal. For dual exhaust systems, repeat on both sides.
-
Lower Heat Shields:
- Temporarily lower the heat shields by removing four (4) M6 bolts.
- Save the bolts for reinstallation.
-
Remove Rubber Plugs:
- Remove the rubber plugs from the holes in the bottom of the frame.
-
Drill Access Hole:
- Drill a 1-1/8” access hole in the bottom of the frame approximately 2” from the forward heat shield attachment point (see Figure 1).
-
Fishwire Carriage Bolts:
- Fishwire a 7/16”-14 x 1.5” carriage bolt and a 1” x 2” spacer block through the access hole and down through the rearmost hole in the frame.
- Repeat with a 1” x 3” spacer block for the forward hole.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the carriage bolts. Be careful not to push bolts back into the frame.
-
Install Rear Fasteners:
- Loosely install conical toothed washers and hex nuts onto the rearmost carriage bolts.
-
Install Forward Fasteners:
- Place a flat washer between the forward carriage bolt and the hitch bracket.
- Install conical toothed washers and hex nuts onto the forward carriage bolts.
- Tighten all fasteners to the specified torque (50 lb-ft or 68 N·m).
-
Trim Heat Shields:
- Trim the heat shields around the forward attachment bolt area to ensure they sit flat against the hitch bracket.
-
Reinstall Heat Shields:
- Reattach the heat shields on top of the hitch brackets using the four (4) M6 bolts removed earlier.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators, including the one under the axle.

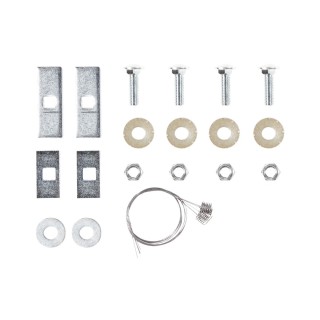

Hardware List:
- (4) Carriage Bolts, 7/16”-14 x 1.5”
- (2) Flat Washers, 7/16”
- (2) Spacer Blocks, 3/16” x 1” x 2”
- (2) Spacer Blocks, 1/4” x 1” x 3”
- (4) Conical Toothed Washers, 7/16”
- (4) Fish Wires, 7/16”
- (4) Hex Nuts, 7/16”-14
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Not for use with spring bars.
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
