Trailer Tow Hitch Hardware Fastener Kit For 11-14 Chevy Silverado GMC Sierra 2500HD 3500HD Receiver
- Stock: In Stock
- Brand: Draw-Tite
- Model: HWKIT3(75707F)
Verify Product Fitment
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2011 - 2014 Chevrolet, Silverado 2500 HD, All Styles
2011 - 2014 Chevrolet, Silverado 3500 HD, All Styles
2011 - 2014 GMC, Sierra 2500 HD, All Styles
2011 - 2014 GMC, Sierra 3500 HD, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75707 87602 44653 75501
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 2011 2012 2013 2014
Compatibility Chart:
Get Expert Help
Install Notes
Installation Instructions for GMC Sierra/Chevrolet Silverado 2500 & 3500 HD Pickups
(Includes Regular, Crew, Extended, Dually, 2WD & 4WD - Long & Short Bed Models)
Part Numbers:
- 75707
- 87602
- 44653
- 75501
Tools Required:
- Wrenches: 13mm, 21mm, 22mm, 3/4”, 7/8”
- Drill Bits: None
- Additional Tools: Plastic cutting tool (short-bed trucks as needed)
Wiring Access Location:
- PU3
Step-by-Step Instructions:
General:
-
Lower Spare Tire:
- For ease of installation, lower the spare tire and set aside.
-
Remove Existing Bolts:
- Remove the existing 14mm bolts from the end of the truck’s frame rails. Return the bolts to the vehicle owner.
- If the truck has an existing hitch, remove the bumper bolts as well.
Short-Bed Trucks:
-
Remove Heat Shield Bolt:
- Remove the rearmost 8mm bolt securing the plastic heat shield to the passenger side frame.
-
Attach Bolt-On Brackets:
- Attach the supplied bolt-on brackets to the hitch brackets. Torque the fasteners as specified below.
-
Sandwich Plastic Heat Shield:
- Position the heat shield tab between the hitch and the frame on the passenger side. Trim the heat shield gusset if necessary to ensure it remains in place.
Long-Bed Trucks:
- Discard Bolt-On Brackets:
- Discard the bolt-on brackets or return them to the vehicle owner, as they are unnecessary for long-bed applications.
All Models:
-
Position Hitch:
- Raise the hitch into position. Align the hitch slots with the weldnuts in the truck bumper and frame rails.
-
Install Fasteners:
- Use the supplied M14 bolts and conical washers for the bumper weldnuts.
- For forward attachments, insert carriage bolts and blocks through the access holes and down through the frame slots.
-
Torque Fasteners:
- Torque 1/2”-13 GR5 bolts to 75 lb-ft (102 N·m).
- Torque M14 x 2.0 CL10.9 bolts to 115 lb-ft (156 N·m).
-
Reinstall Spare Tire:
- Reinstall the spare tire, ensuring it does not interfere with the hitch or fasteners.

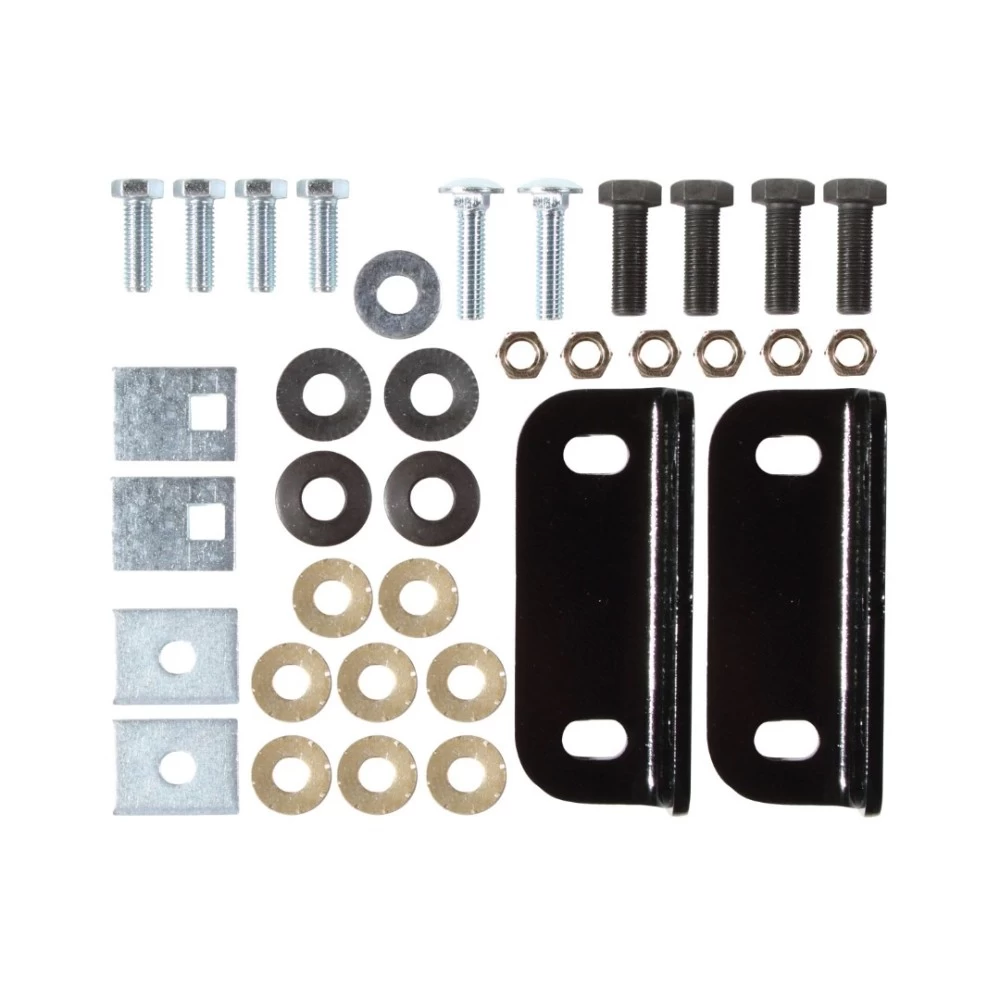

Hardware List:
- (4) Hex Bolts, M14 x 2.0 x 45mm CL10.9
- (6) 1/2”-13 Hex Nuts
- (4) Conical Toothed Washers, 5/8” (black)
- (2) Carriage Bolts, 1/2”-13 x 2” GR5
- (2) Spacer Blocks, 1-1/2” x 2” (short-bed only)
- (10) Conical Toothed Washers, 1/2” (gold)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 12,000 lbs (5,448 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
