Trailer Tow Hitch Hardware Fastener Kit For 12‑20 Toyota Prius C 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24971F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2012 - 2020 Toyota, Prius C, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24971 77971 24971
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 2012 2013 2014 2015 2016 2017 2018 2019 2020
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24971F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2012 - 2020 Toyota, Prius C, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24971 77971 24971
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 2012 2013 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 12-20 Toyota Prius C 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Toyota Prius C (2012-Current)
Part Numbers:
- 24971
- 77971
- CQT24971
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 13mm
- 6" Socket Extension
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Appearance Panels:
- Remove 2 plastic appearance panels on the driver side using a flat head screwdriver.
- Detach 4 push pins per panel (8 total).
- Remove 5 push pins from the center appearance panel and detach the remaining 2 push pins from the fascia tabs.
- Return the center appearance panel and 5 push pins to the vehicle owner. Retain other panels and pins for reinstallation in Step 5.
-
Remove Bumper Bolts:
- Using a 12mm socket, remove the lower bolt and the inboard bolt from the bumper on each side (4 bolts total).
- Leave the outer bolts attached to the vehicle and return the removed bolts to the vehicle owner.
-
Install Hitch:
- Rotate the passenger side of the hitch over the exhaust and raise it into position.
- Attach the provided M8 bolts and conical washers on each side.
-
Torque Fasteners:
- Tighten all 8mm fasteners to 27 ft-lb (37 N*m) using a torque wrench and a 13mm socket.
-
Reinstall Appearance Panels:
- Reattach the 2 driver-side appearance panels removed in Step 1.
- Reinstall the fascia tabs.

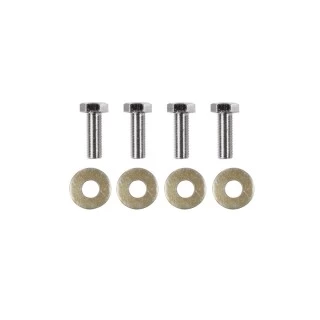

Hardware List:
- (4) Hex Bolt, M8 x 1.25 x 30mm, CL10.9
- (4) Conical Washer, 3/8" (Part No. 01292006)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch regularly to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access holes with a torch.
- Follow proper safety precautions when working beneath a vehicle.
Specifications:
- Installation Time: 20 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
