Trailer Tow Hitch Hardware Fastener Kit For 13‑19 Nissan Sentra S SL SV 20‑23 S 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24907F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2013 - 2019 Nissan, Sentra, S, SL, and SV
2020 - 2023 Nissan, Sentra, S models
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24907 60338 77294
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24907F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2013 - 2019 Nissan, Sentra, S, SL, and SV
2020 - 2023 Nissan, Sentra, S models
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24907 60338 77294
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 13-19 Nissan Sentra S SL SV 20-23 S 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Nissan Sentra (Will Not Fit SR Model)
Part Numbers:
- 24907
- 60338
- 77294
Wiring Access Location:
- PC3, PC4
Tools Required:
- Power Drill
- Wrenches: 9/16", 11/16"
- Drill Bits: 1", 7/16"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (907 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Mark and Drill Holes:
- Hold the hitch in place and use it as a template to mark the holes to be drilled in the driver-side frame rail.
- If needed, secure the hitch in position using the tow hook mount and the 3/8” bolts. Remove the hitch after marking the holes in the correct locations.
-
Fishwire Bolts and Washers:
- Use the provided pull wire to guide bolts and square-hole washers through the middle access hole in the frame and out the two attachment holes.
-
Position and Attach Hitch:
- Raise the hitch into position over the bolts in the frame.
- Attach the 7/16” conical washers and nuts to secure the frame bolts.
- Push the 3/8” bolts through the passenger-side end panel holes that align with the hitch at the frame rail.
- Attach the 3/8” conical washers and nuts using a 9/16” socket and box-end wrench on the panel side.
-
Install Tow Hook Bolt and Block:
- Insert the 7/16” carriage bolt and block through the vehicle tow hook and hitch bracket.
- Secure the bolt using an 11/16” socket or box-end wrench.
-
Tighten Fasteners:
- Torque all 3/8” fasteners to 35 Lb.-Ft. (47 N*M).
- Torque all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).

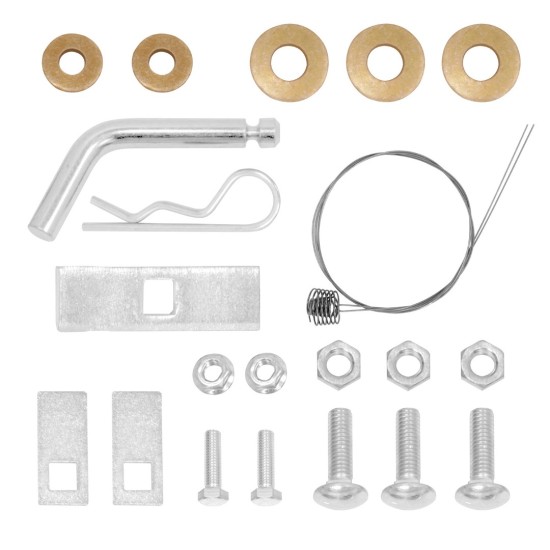

Hardware List:
- (3) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (3) Hex Nuts: 7/16”-14
- (3) Conical Washers: 7/16”
- (2) Square-Hole Washers: 7/16”
- (2) Pull Wires: 7/16”
- (2) Carriage Bolts: 3/8”-16 x 1.25” GR5
- (2) Locknuts: 3/8”-16
- (2) Conical Washers: 3/8”
- (1) Block: 0.25” x 1.00” x 3.00”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
