Trailer Tow Hitch Hardware Fastener Kit For 14‑21 Land Rover Range Rover Sport Except Diesel 2" Receiver
Model: HWKIT3(75229F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2014 - 2021 Land Rover, Range Rover Sport, Except Diesel
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75229 87693 44781
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75229F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2014 - 2021 Land Rover, Range Rover Sport, Except Diesel
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75229 87693 44781
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 14-21 Land Rover Range Rover Sport Except Diesel 2" Receiver Install Notes
Installation Instructions for Land Rover Range Rover Sport
Part Numbers:
- 75229
- 87693
- 44781
Applications:
- 2015-Current Land Rover Range Rover Sport (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 19mm
- Flat Head Screwdriver
- Philips Screwdriver
- Utility Knife
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Bottom Appearance Panel Removal:
- Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
- Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.
-
Hitch Installation:
- Raise the hitch into position and loosely install:
- M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
- M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
- Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.
- Raise the hitch into position and loosely install:
-
Torque Fasteners:
- Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Lower Panel Trimming:
- Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
- Perform additional trimming if necessary.
-
Reinstall Appearance Panels:
- Reinstall the upper and lower appearance panels removed in Step 1.

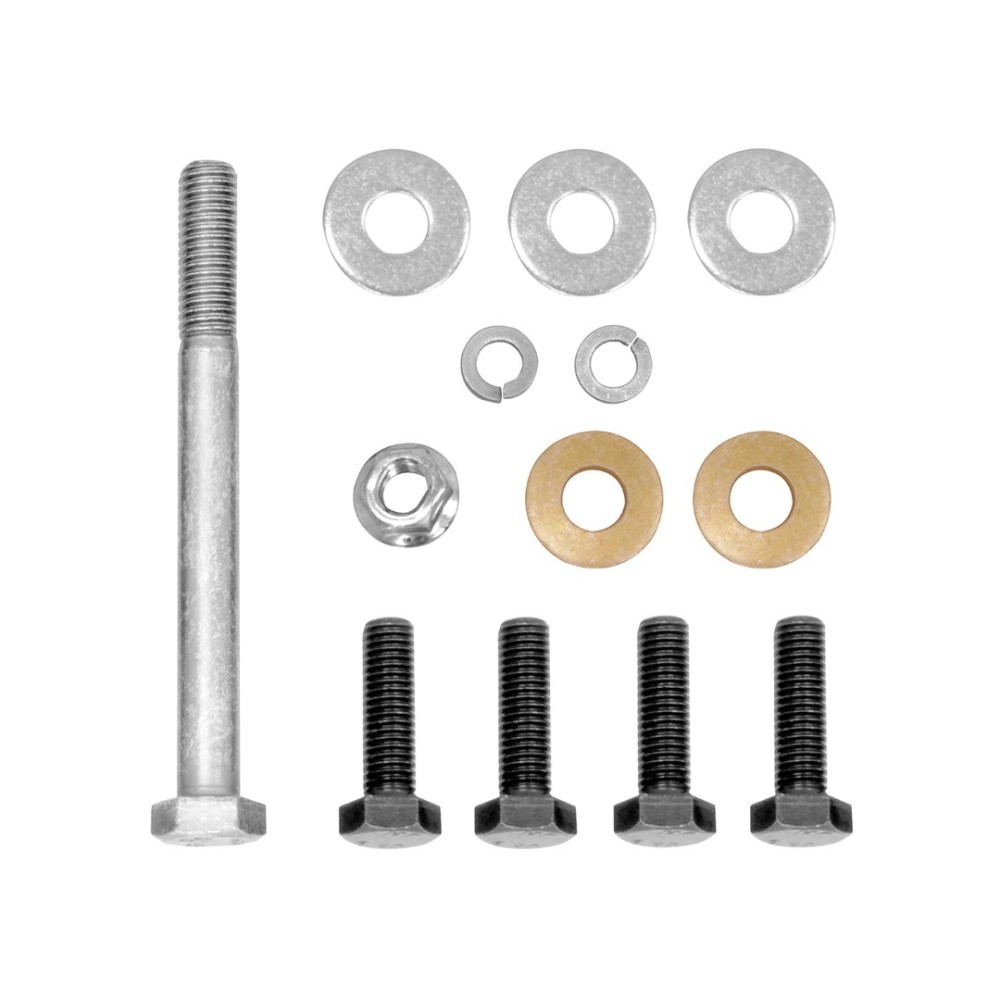

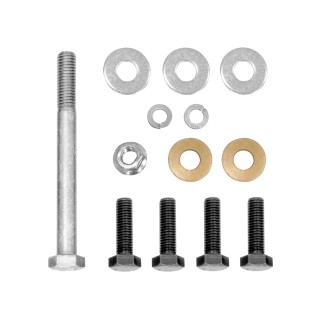

Hardware List:
- (4) M12 x 1.75 x 35mm CL10.9 Bolts
- (2) 1/2" Conical Washers
- (3) 1/2" Flat Washers
- (2) 1/2" Lock Washers
- (1) 1/2-13 x 5" GR5 Bolt
- (1) 1/2-13 GR5 Flange Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
