Trailer Tow Hitch Hardware Fastener Kit For 19‑20 Buick Envision 2" Towing Receiver Class 3
Model: HWKIT3(76300F)2019 - 2020 Buick, Envision, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76300 84300 76300
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 2019 20 2020
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76300F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
2019 - 2020 Buick, Envision, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76300 84300 76300
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 2019 20 2020
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 19-20 Buick Envision 2" Towing Receiver Class 3 Install Notes
Installation Instructions for 2019-Current Buick Envision
Part Numbers:
- 76300
- 84300
- CQT76300
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 15 mm Socket
- 11/16" Socket
- T15 Torxbit Socket
- 8-inch Socket Extension
- Crows Foot (11/16")
Step-by-Step Instructions:
-
Remove Fascia Screws:
- Use a T15 Torxbit socket to remove two screws from the bottom edge of the fascia.
- Keep the screws for reinstallation.
-
Remove Existing M10 Nut/Washer Assembly:
- Using a 15 mm deep well socket, remove two M10 nut-washer assemblies (one per side) from the bottom of the bumper beam attachment.
-
Install Fasteners:
- Attach the 7/16” carriage bolt and ¼” spacer block to the coiled end of the pull wire.
- Feed the other end of the pull wire through the middle access hole and bring it out through the rearmost hole in the bottom of the frame.
- Pull the fasteners inside the vehicle frame on both sides. Keep spacer blocks and bolts inside the vehicle frame during hitch installation.
-
Install Hitch:
- Gently pull the fascia down and raise the hitch into position while guiding the pull wires through the bracket mounting forward holes.
- Push the hitch onto existing studs in the vehicle on both sides.
- Using the pull wire, pull carriage bolts and spacer blocks into position.
- Remove the pull wires and loosely install the 7/16 conical washers and 7/16-14 hex nuts onto the carriage bolts.
- Install the M10 nut-washer assembly onto the existing studs on the bumper beam/end panel.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M10 fasteners to 38 lb-ft (52 Nm).
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 Nm).
- Use a socket extension and crows foot to tighten the 7/16 nut on the driver side.
-
Reinstall Fascia Screws:
- Reinstall the fascia screws using a T15 Torxbit socket.

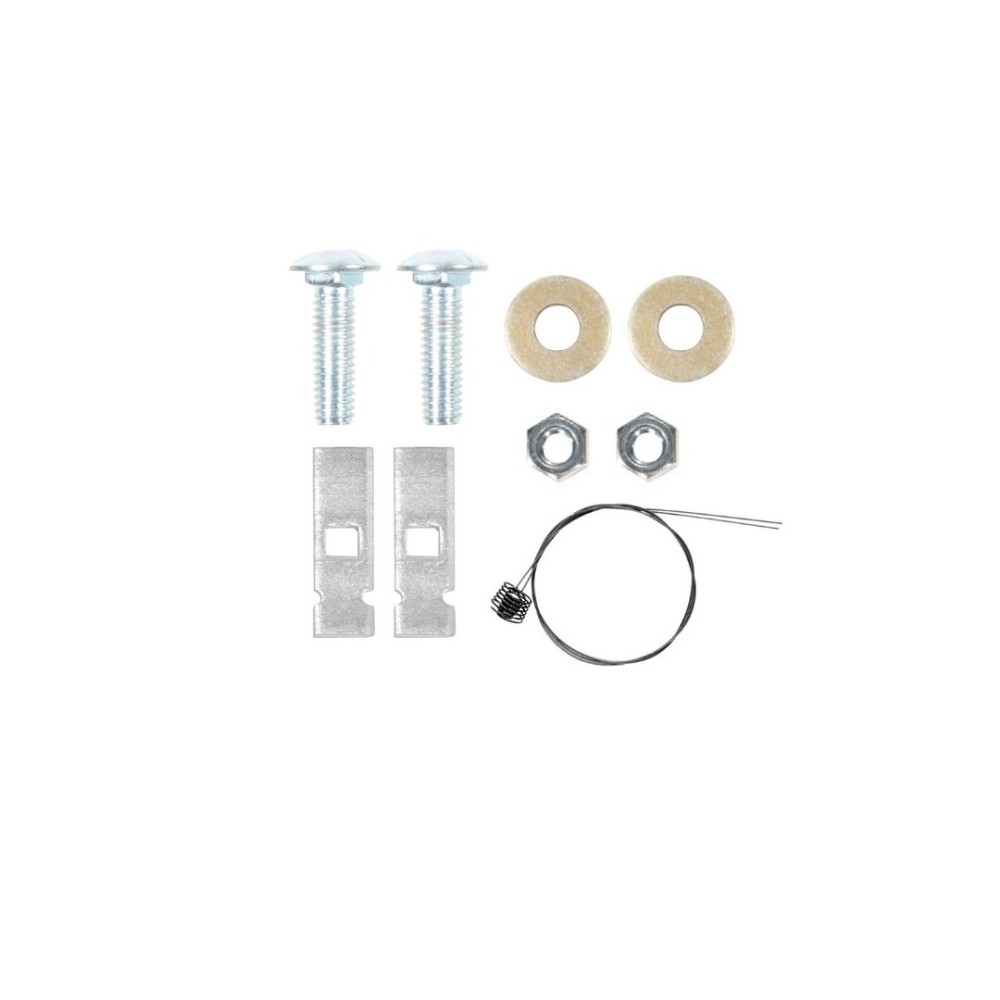

Hardware List:
- (2) Carriage Bolt 7/16-14 X 1.50 GR5
- (2) Spacer Block 1/4 X 7/8 X 3.00
- (2) Conical Washer 7/16
- (2) Hex Nut 7/16-14
- (2) Pull Wire 7/16
Safety Notes:
- Always wear safety glasses when installing the hitch.
- Ensure proper torque is applied to keep the hitch secure.
- Check the hitch frequently for proper tightness of fasteners and the ball.
- Damaged hitch or ball should be removed and replaced.
- Do not cut access or attachment holes with a torch.
- Observe all safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
