Trailer Tow Hitch Hardware Fastener Kit For 19‑24 Audi Q3 (Except w/Hands‑Free Liftgate Sensor) 2" Receiver Class 3
Model: HWKIT3(76364F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2019 - 2024 Audi, Q3, Except w/Hands-Free Liftgate Sensor
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76364 84364 76364
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76364F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2019 - 2024 Audi, Q3, Except w/Hands-Free Liftgate Sensor
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76364 84364 76364
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 19-24 Audi Q3 (Except w/Hands-Free Liftgate Sensor) 2" Receiver Class 3 Install Notes
Installation Instructions for 2019-Current Audi Q3
Part Numbers:
- 76364
- 84364
- CQT76364
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 13 mm, 7/8"
- Tape Measure
- Marker
- Tin Snips
- Utility Knife
- Exhaust Removal Pliers
- 6-inch Socket Extension
Step-by-Step Instructions:
-
Trim Bumper Fascia:
- Measure to find the center of the fascia. Mark a centerline on the bottom of the fascia and trim as shown in Figure 2.
- Mark a centerline on the vertical portion of the fascia and trim as shown in Figure 3. Do not trim away the bottom edge.
- If not using trailer wiring, the trimmed area can be 3.25” on each side of the centerline. Dimensions are approximate and can be adjusted for fit and aesthetics.
-
Remove Excess Caulk:
- Remove excess caulk from the frame rails in the hitch installation area.
-
Lower Exhaust:
- Lower the exhaust by removing two bolts from each rear exhaust hanger bracket (one per side) using a 13 mm socket.
- Support the exhaust to avoid damage.
-
Install Hardware:
- Using the provided fish wire, install carriage bolts and spacers (items 1 and 2) through the access holes in the vehicle frame. Repeat on both sides.
- Keep the hardware inside the frame until the hitch is in position. Keep the fish wire attached to the hardware.
-
Install Hitch:
- Raise the hitch into position over the exhaust and move it forward so the receiver clears the bottom edge of the fascia.
- Align the holes in the hitch with the holes in the vehicle frame and pull bolts through the attachment holes.
- Install conical washers (teeth side toward hitch) and nuts onto the bolts.
-
Tighten Fasteners:
- Tighten all 7/16” fasteners with a torque wrench to 50 ft-lbs (68 Nm).
-
Reinstall Exhaust:
- Reinstall the rubber hangers and exhaust muffler.

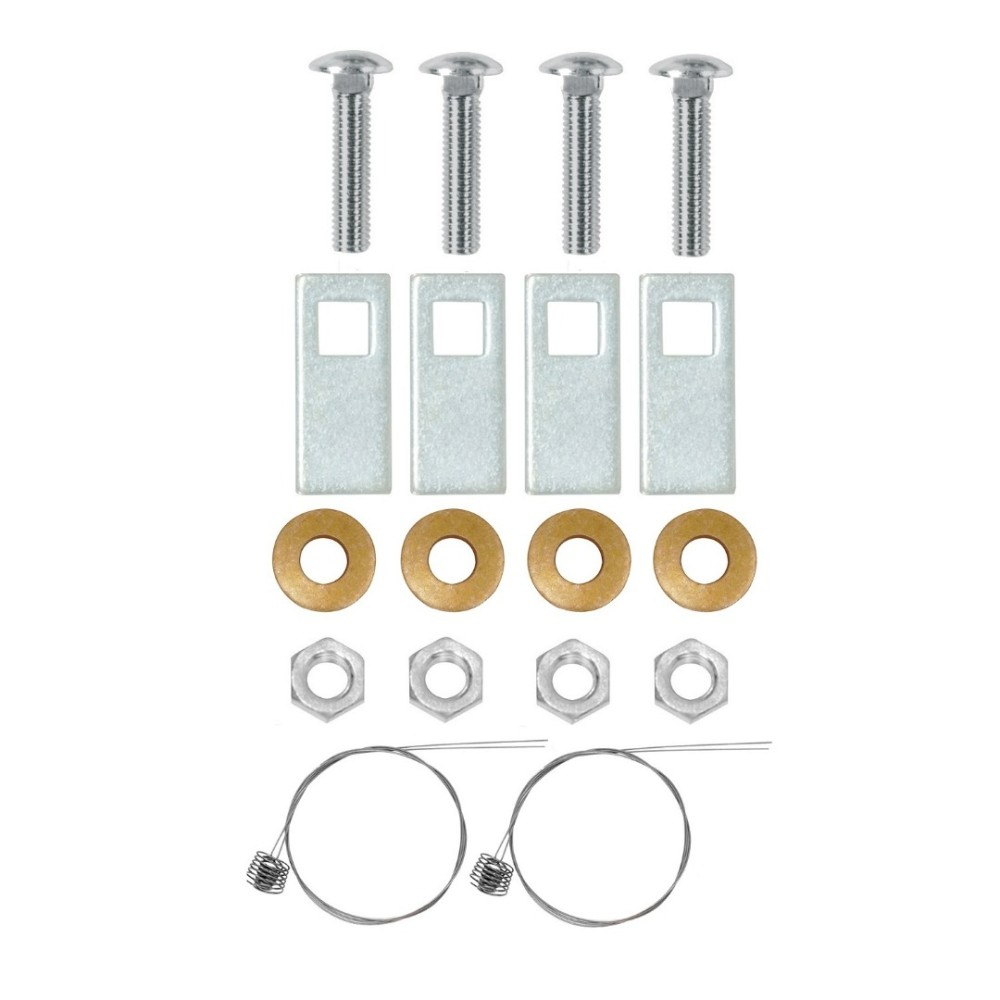

Hardware List:
- (4) Carriage Bolt 7/16”-14 x 1.5” GR5
- (4) Spacer .109” x .88” x 2” (Part #: 1204)
- (4) Conical Washer 7/16” (Part #: 01292007)
- (4) Hex Nut 7/16” GR2
- (4) Fish Wire 7/16”-14 (Part #: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted to the vehicle.
- Check hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace damaged hitches or balls immediately.
- Do not cut access or attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
