Name: Trailer Tow Hitch w/ Tekonsha Prodigy P3 Brake Control For 07-13 Chevy Silverado GMC Sierra 1500 w/ Dual 2" and 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller
Brand: Draw-Tite
Price: 402.63 USD
Availability: InStock

Trailer Tow Hitch w/ Tekonsha Prodigy P3 Brake Control For 07-13 Chevy Silverado GMC Sierra 1500 w/ Dual 2" and 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller

0 reviews - Write a review

$402.63

Stock: In Stock
Brand: Draw-Tite
Model: 75362 74682 23 63845 63847 90195

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

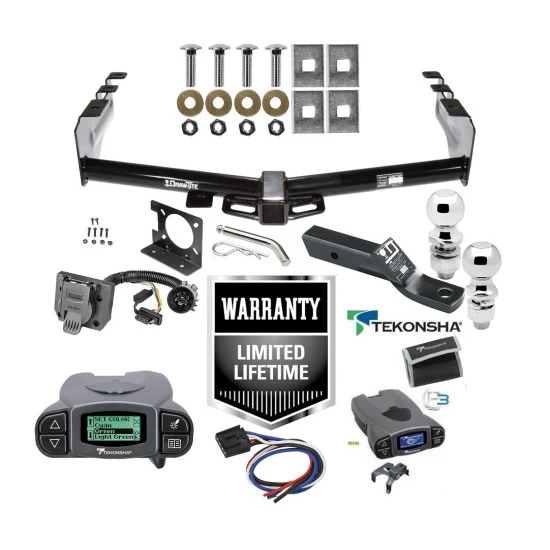

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
2" Drop Ball-Mount w/ Pin/Clip
2" and 2-5/16" Chrome Balls
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2007 - 2007 Chevrolet, Silverado 1500, (New Body Style)
2008 - 2013 Chevrolet, Silverado 1500, All Styles
2007 - 2007 GMC, Sierra 1500, (New Body Style)
2008 - 2013 GMC, Sierra 1500, All Styles

Tekonsha Prodigy P3 is the most advanced electric trailer brake control. P3 has several added features, making it the new standard for electric trailer brake controls. A true proportional braking system, In an emergency stop the proportional controller will match the braking power instantly instead of ramping up.

Trailer Hitch Specs:

Part Number	75362
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	900/900lbs
Warranty	Lifetime
Installation Instructions

Direct Plug & Play Wiring Kit

Part Number	74682
Brand	Reese
Features	7-Way Flat Pin Connector/4-Flat Combo Adapter Harness For quick connection to 4-Flat or 7-Way trailer connectors Includes mounting bracket and hardware Easily adapts to existing vehicle 7-Way plug Ability to tow trailers with different style trailer connectors Durable plastic shell Weather tight seal Attractive point-of-purchase packaging
Warranty	1 Year
Installation Instructions

Brake Control Unit Specs:

Part Number	90195
Brand	Tekonsha
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Features:	5 storable setting options for pulling different trailers or preferences of multiple drivers. A distinct, easy-to-read LCD display with multiple screen color options. Up-Front controls provide easy access to all P3 features. Easy to understand diagnostics show output current, battery, brake, and output voltage. A flashing red warning system alerts user to No Trailer Brake situations. Select Electric over Hydraulic or Electric trailer brake mode. Screen information display in English, French or Spanish. The Original Boost feature allows for different levels of customized braking. Compact, dash-hugging design.
Installation Instructions
Warranty	Lifetime

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

2" Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

2-5/16" Hitch Ball Specs:

Part Number	63847
Brand	Draw-Tite
Size	2-5/16" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years:
07 08 09 10 11 12 13 2007 2008 2009 2010 2011 2012 2013

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	900 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Tags: 75362 , 74682 , 23 , 63845 , 63847 , 90195 , Draw-Tite , Trailer , Tow , Hitch , Tekonsha , Prodigy , P3 , Brake , Control , 07-13 , Chevy , Silverado , GMC , Sierra , 1500 , Dual , 2" , and , 2- , 5/16" , Ball , 2" , Drop , Mount , 7-Way , Pin , Blade , RV , Controller , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013
