Trailer Wiring and Bracket For 07‑09 Hyundai Entourage 06‑14 KIA Sedona Plug & Play 4‑Flat Harness
Model: 118410 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2006 - 2014 KIA, Sedona, All Styles
Wiring Kit Specs:
Part Number | 118410 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2010 2011 2012 2013 2014
$87 08 $117.77 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$117.77 $87 08
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $21.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118410 118144

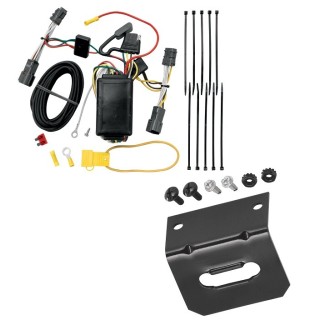

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Circuit Protected | Yes |
Hardware Included | Yes |
Harness Type | 4-Way Flat (Vehicle Side) |
Terminal Quantity | 4 |
Universal Or Specific Fit | Specific Fit |
Wire Colors | Brown, Green, Yellow, White |
Wire Quantity | 4 Wires |
Be the first to ask a question.
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2006 - 2014 KIA, Sedona, All Styles
Wiring Kit Specs:
Part Number | 118410 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Wiring and Bracket For 07-09 Hyundai Entourage 06-14 KIA Sedona Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118410
Tools Required:
- Drill with 3/32" Drill Bit
- Phillips Head Screwdriver
- Wire Crimpers
- Wire Cutters
Step-by-Step Instructions:
-
Remove the Rear Taillight Assemblies:
- Open the rear door and remove both taillight housing assemblies by removing three screws for each light.
- Carefully pry the taillight housing assembly away from the vehicle, avoiding damage to alignment tabs.
-
Driver’s Side Connection:
- Disconnect the vehicle wiring harness from the taillight socket.
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
-
Route the Wiring:
- On the driver’s side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Route the green wire to the passenger side, being careful to avoid hot pipes, heat shields, the fuel tank, or other points that may damage the wire.
- Bring the green wire up through the opening on the passenger side and repeat Step 2 for the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
- Route the black 12-gauge wire along the frame rail from the front of the vehicle to the rear driver’s side taillight area.
- Connect the black wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Reconnect the Battery and Install the Fuse:
- Reconnect the vehicle's negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Mount the Black Box and Secure Wiring:
- Clean a flat area behind the driver’s side taillight assembly with rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the T-Connector harness with cable ties to prevent damage or rattling, avoiding areas that could cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Position the vehicle wiring harness between the housing and the vehicle body.
- Reinstall the taillight housing assemblies.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Store the 4-flat connector in a suitable location under the vehicle when not in use.
- Refer to the vehicle owner’s manual for additional information.
