Trailer Wiring and Bracket For 11-14 Dodge Charger Plug & Play 4-Flat Harness

Trailer Wiring and Bracket For 11‑14 Dodge Charger Plug & Play 4‑Flat Harness

Name: Trailer Wiring and Bracket For 11-14 Dodge Charger Plug & Play 4-Flat Harness
Brand: Tekonsha
Price: 87.08 USD
Availability: InStock

Model: 118560 118144

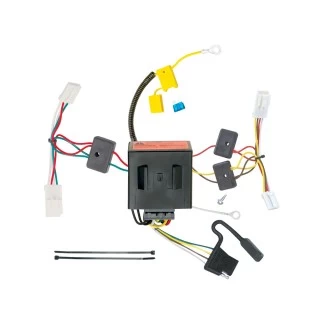

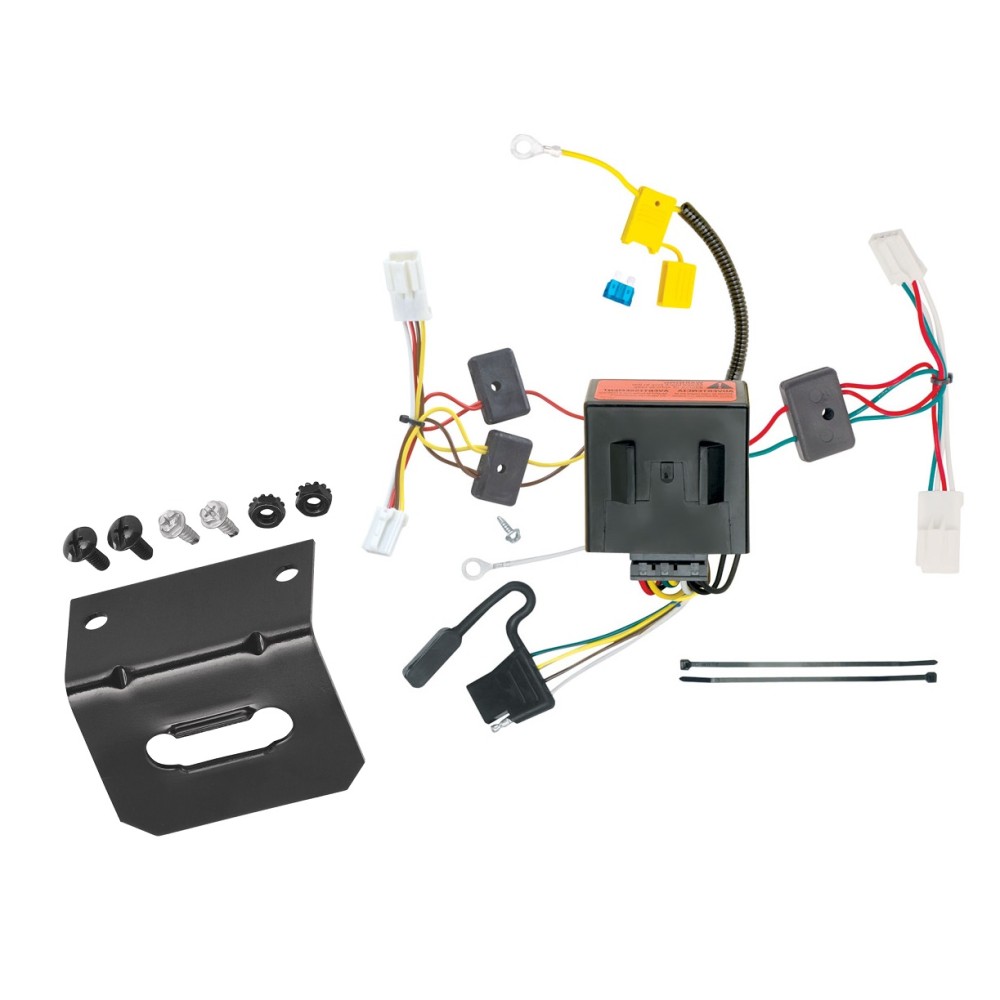

Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket

Installation Instructions

Fits The Following Vehicles:

2011 - 2014 Dodge, Charger, All Styles

Wiring Kit Specs:

Part Number	118560
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
11 12 13 14 2011 2012 2013 2014

See Full Description

$87 ⁰⁸ $117.77 26% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$117.77 $87 ⁰⁸

Pay in 4 interest-free installments of $21.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $21.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118560 118144
Includes: T-One T-Connector Custom Harness, Mounting Bracket

Compatibility Chart

Specification
Circuit Protected	Yes
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

Description

Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket

Installation Instructions

Fits The Following Vehicles:

2011 - 2014 Dodge, Charger, All Styles

Wiring Kit Specs:

Part Number	118560
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Tags: 118560 , 118144 , Tekonsha , Trailer , Wiring , and , Bracket , 11-14 , Dodge , Charger , Plug , Play , 4-Flat , Harness , 11 , 12 , 13 , 14 , 2011 , 2012 , 2013 , 2014

Get Expert Help

Trailer Wiring and Bracket For 11-14 Dodge Charger Plug & Play 4-Flat Harness Install Notes

Installation Instructions for T-Connector Adapter for Charger

Part Numbers:

118560

Tools Required:

Trim Panel Remover
10mm Socket & Ratchet or 10mm Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Wire Crimpers
Wire Cutters
Phillips Head Screwdriver
Test Probe

Step-by-Step Instructions:

Open the Trunk and Remove Panels:
- Remove the threshold panel and partially remove the corner felt trunk liner on both sides to expose the taillight wiring harness.
- Remove two Torx-20 screws and cargo loops on both the driver’s and passenger’s sides.
Install the Driver-Side T-Connector:
- Behind the taillights, locate the connection points matching the T-Connector adapter ends.
- Separate the vehicle’s wiring connectors and insert the T-Connector end with the yellow wire between the connectors. Ensure the locking tabs are secure.
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
- Repeat step 2 for the T-Connector end with the green wire.
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
Connect the Grey 12-Pin Connector:
- Insert the T-Connector’s grey 12-pin connector into the mating connector on the black box module.
- Ensure all connector surfaces are clean and fully inserted with locking tabs in place.
Mount the Black Box:
- Find a flat, out-of-the-way surface inside the vehicle and mount the black box using the provided double-sided tape.
- Ensure the area is dry and not exposed to moisture.
Warning:
- The black box module must be mounted only inside the vehicle. Exterior mounting can cause serious damage.
Connect to the Vehicle Battery:
- Locate the positive (+) battery cable in the fuse box on the passenger side.
- Remove the nut, place the ring terminal with the yellow wire on the stud, and replace the nut. Tighten securely.
- Install the 10-amp fuse into the fuse holder.
Warning:
- Follow all warnings and precautions printed on the vehicle battery.
Secure and Reassemble:
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling.
- Reinstall the carpet, panels, and any clips removed during installation, ensuring no wires are pinched or cut.
Test the Installation:
- Test the T-Connector installation with a test light or trailer to ensure proper functionality.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)

Safety Notes:

Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
Always follow installation instructions and safety precautions.

Manufacturer Notes:

Store the 4-flat connector in the rear cargo area when not in use.
Refer to the vehicle owner’s manual for additional guidance.
