Trailer Wiring and Bracket For 13‑18 Hyundai Santa Fe 2019 XL 07‑12 Veracruz 15‑21 KIA Sedona 11‑24 Sorento Plug & Play 4‑Flat Harness
Model: 118269 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2007 - 2012 Hyundai, Veracruz, All Styles
2013 - 2018 Hyundai Santa Fe, All Styles
2013 - 2018 Hyundai Santa Fe Sport
2019 Hyundai Santa Fe, XL, with factory tow package
2011 - 2024 Kia, Sorento, V6 models, with Factory Tow Prep Package
Wiring Kit Specs:
| Part Number | 118269 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$72 49 $86.60 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$86.60 $72 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $18.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118269 118144

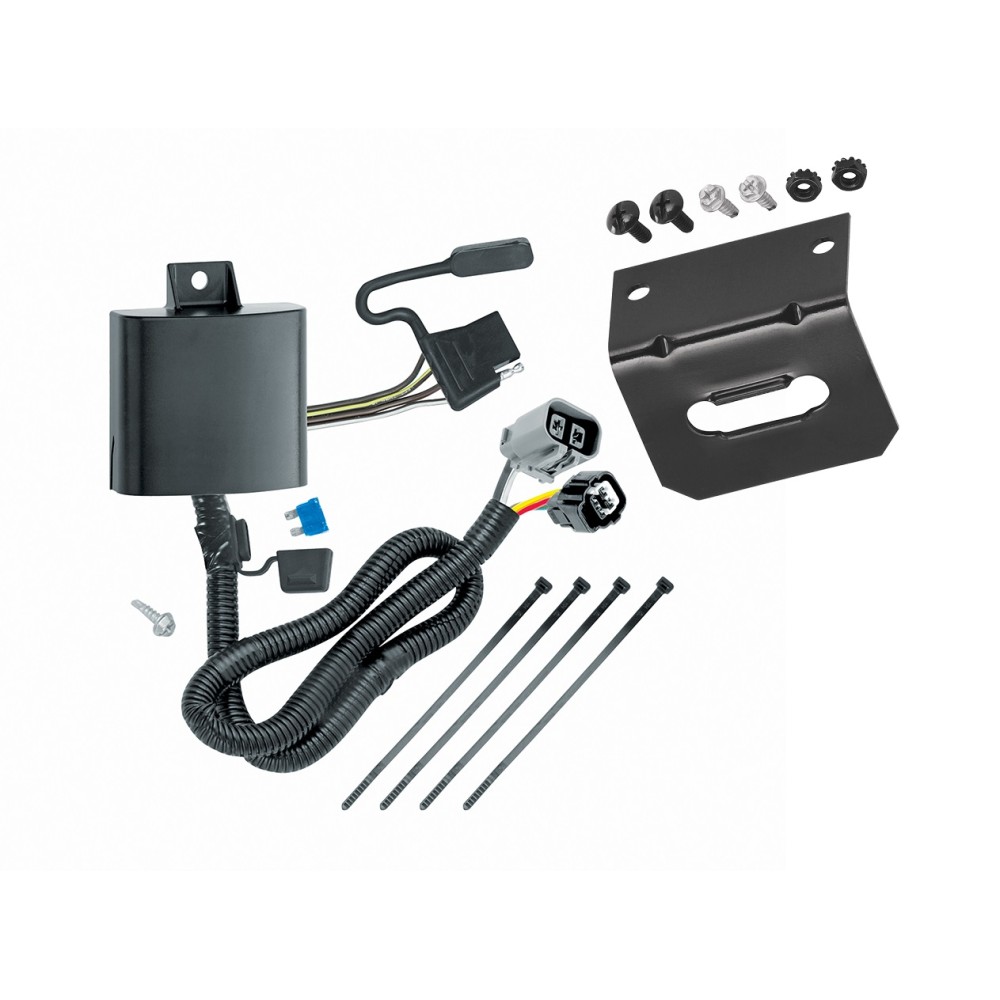

- Includes: Tow Custom Harness, Mounting Bracket
Compatibility Chart
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2007 - 2012 Hyundai, Veracruz, All Styles
2013 - 2018 Hyundai Santa Fe, All Styles
2013 - 2018 Hyundai Santa Fe Sport
2019 Hyundai Santa Fe, XL, with factory tow package
2011 - 2024 Kia, Sorento, V6 models, with Factory Tow Prep Package
Wiring Kit Specs:
| Part Number | 118269 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Wiring and Bracket For 13-18 Hyundai Santa Fe 2019 XL 07-12 Veracruz 15-21 KIA Sedona 11-24 Sorento Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter for Kia Sorento and Hyundai Veracruz
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Manufacturer Notes:
- Ensure all connections are clean and secure.
- Follow all installation warnings and guidelines carefully.
