Trailer Wiring and Bracket For 17-23 Buick Encore All Styles 4-Flat Harness Plug Play

Trailer Wiring and Bracket For 17‑23 Buick Encore All Styles 4‑Flat Harness Plug Play

Model: 118745 118144

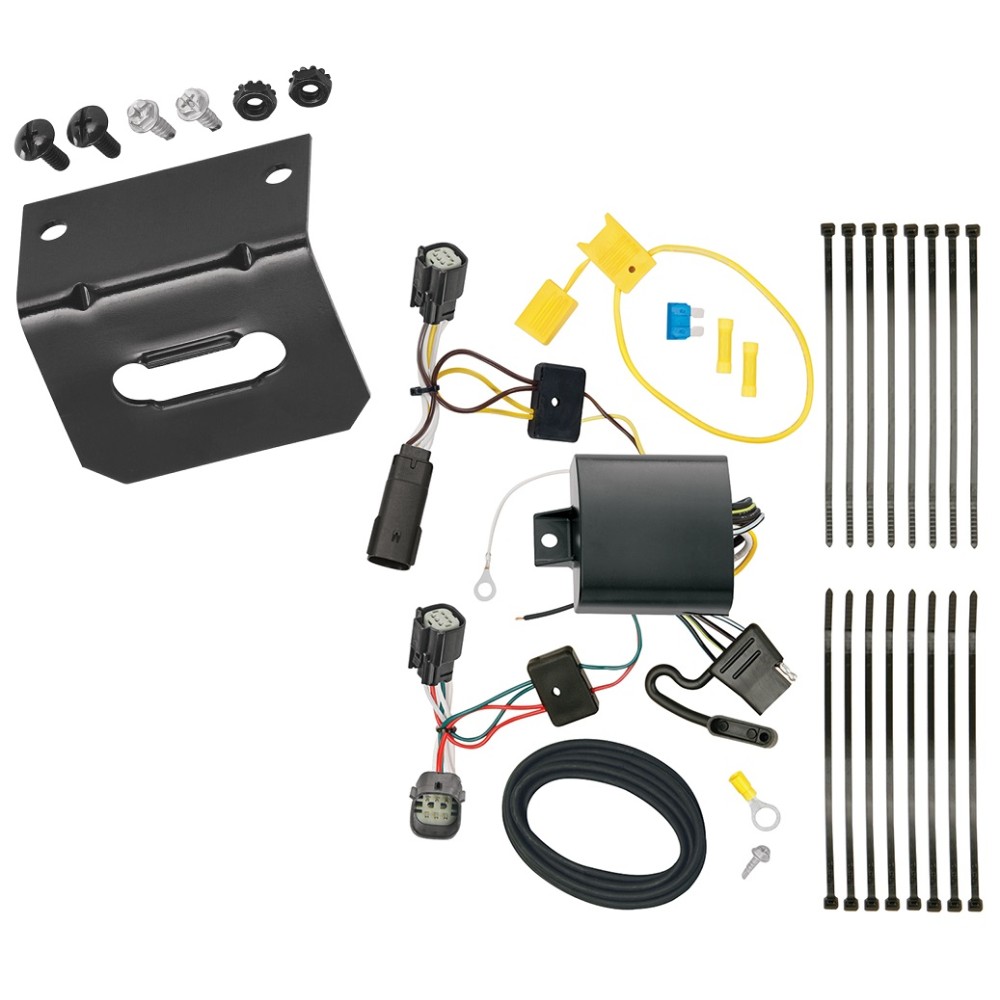

Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket

Fits The Following Vehicles

2017 - 2023 Buick, Encore, All Styles

Wiring Kit Specs:

Part Number	118745
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
17 18 19 20 21 22 23 2017 2018 2019 2020 2021 2022 2023

See Full Description

$76 ⁹³ $99.08 22% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$99.08 $76 ⁹³

Pay in 4 interest-free installments of $19.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $19.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118745 118144
Includes: T-One T-Connector Custom Harness, Mounting Bracket

Compatibility Chart

Specification
Circuit Protected	Yes
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

Description

Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket

Fits The Following Vehicles

2017 - 2023 Buick, Encore, All Styles

Wiring Kit Specs:

Part Number	118745
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 118745 , 118144 , Tekonsha , Trailer , Wiring , and , Bracket , 17-23 , Buick , Encore , All , Styles , 4-Flat , Harness , Plug , Play , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023

Get Expert Help

Trailer Wiring and Bracket For 17-23 Buick Encore All Styles 4-Flat Harness Plug Play Install Notes

Installation Instructions for T-One® T-Connector for Chevrolet Trax

Part Numbers:

118745

Tools Required:

Trim Panel Remover
10mm Socket & Ratchet or 10mm Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Wire Crimpers
Wire Cutters
Phillips Head Screwdriver
Test Probe

Step-by-Step Instructions:

Prepare the Vehicle:
- Open the tailgate and remove the cargo door on the floor.
- Carefully remove the floor trim panels and access panels on each side of the vehicle.
- Set aside all items removed, ensuring no parts are damaged.
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides of the vehicle, locate the vehicle’s taillight wiring harness inside the access panel area.
- Disconnect the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
- Ensure connectors are fully inserted and the locking tabs are secure.
Route the Passenger-Side T-Connector:
- Route the T-One® Connector end with the green wire through the trim panel access hole, across the threshold, and into the passenger-side trim panel access hole.
- Repeat Step 3 using the T-One® Connector harness end with the green wire.
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean dirt and rustproofing from the area. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-One® Connector box on the driver’s side.
- Attach the provided black wire and route it along the exterior frame or follow existing wiring to the engine compartment.
- Avoid areas that may pinch, cut, or break the wire.
Warning: Avoid routing near hot pipes, heat shields, or the fuel tank.
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Store these instructions for future reference.
