Trailer Wiring and Bracket For 17‑24 Jeep Compass Plug & Play 4‑Flat Harness
Model: 118752 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2017 - 2024 Jeep, Compass, (New Body Style)
Wiring Kit Specs:
| Part Number | 118752 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$90 89 $136.12 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$136.12 $90 89
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118752 118144

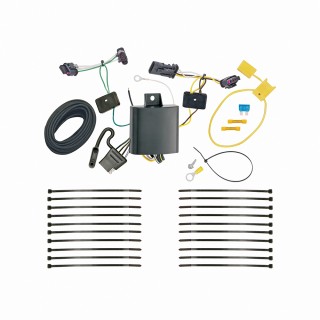

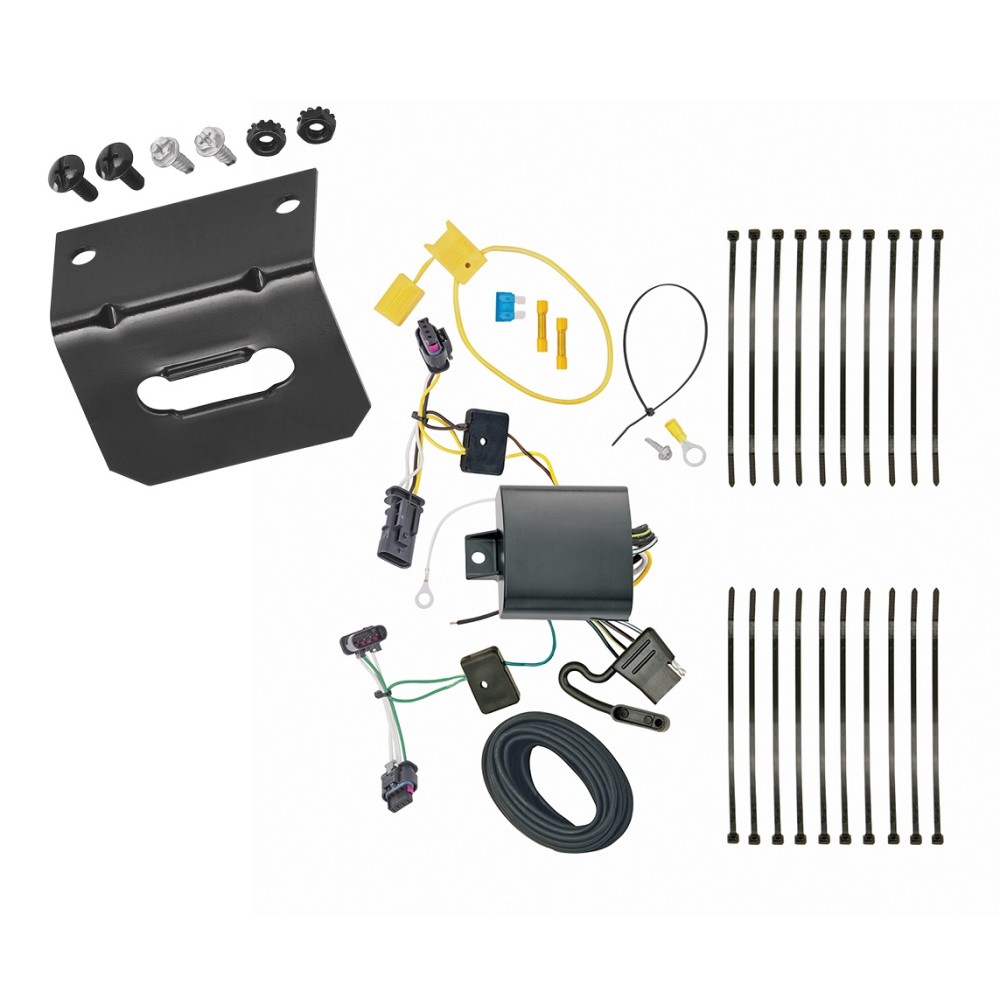

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2017 - 2024 Jeep, Compass, (New Body Style)
Wiring Kit Specs:
| Part Number | 118752 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Wiring and Bracket For 17-24 Jeep Compass Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-One® T-Connector for Jeep Compass
Part Numbers:
- 118752
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Torx 30 Driver
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two T30 Torx bolts on each side.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides of the vehicle, locate the taillight wiring harness with a connection point matching the T-One® Connector ends.
- Carefully separate the connectors, ensuring not to break the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Route the T-One® Connector end with the yellow and brown wires behind the fascia supports and along the existing wire harness to the taillight pocket.
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place.
-
Mount the Black Box Module:
- Mount the T-One® Connector black box using the provided double-sided tape.
- Secure the remainder of the T-One® Connector harness with the provided cable ties to prevent damage or rattling, avoiding areas that may cut or pinch the wire.
Warning: Ensure the epoxy side of the module faces downward to prevent water accumulation.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw, cleaning dirt and rustproofing from the area beforehand.
Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Route the Passenger-Side T-Connector:
- Route the harness containing the green wire underneath the vehicle and up through the opening between the bumper and body to the passenger’s taillight pocket.
- Repeat Step 3 for the passenger side using the T-One® Connector end with the green wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housings, positioning the vehicle wiring harness between the housing and the body.
-
Route the Power Wire:
- Starting at the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, the fuel tank, or areas that may pinch or damage the wire.
Warning: If routing through a grommet and along the exterior, avoid hot pipes, heat shields, or other hazardous points.
-
Connect the Power Wire to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder and attach the ring terminal to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the remainder of the harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall all panels, thresholds, storage covers, and other items removed during installation, ensuring no wires are pinched or damaged.
-
Mount the 4-Flat Connector:
- Route the 4-flat harness underneath and to the center of the vehicle.
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
