Trailer Wiring and Bracket w/ Light Tester For 05‑07 Chrysler 300 08‑14 Challenger 06‑10 Charger Plug & Play 4‑Flat Harness

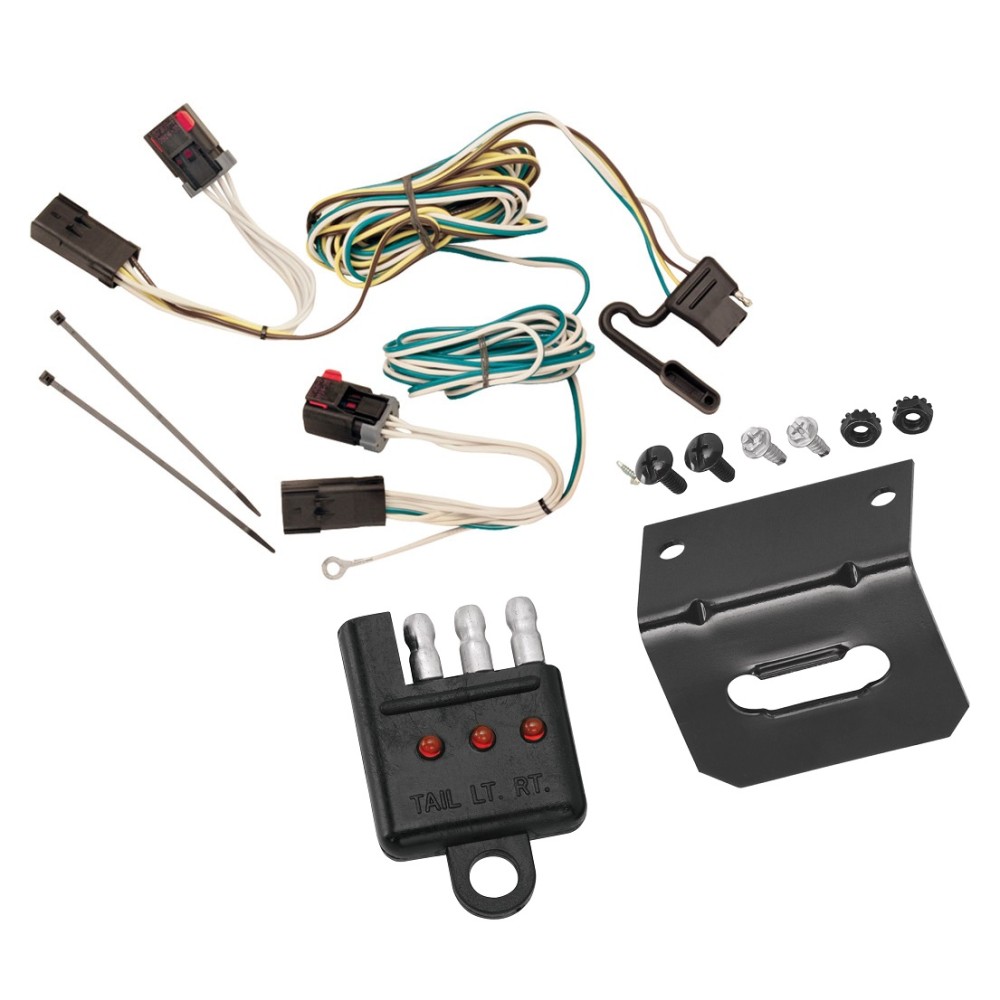

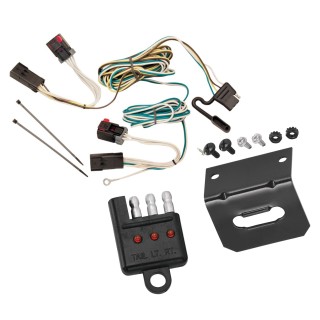

Model: 118404 118144 20114Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2005 - 2007 Chrysler, 300, Except 300 C2008 - 2014 Dodge, Challenger, All Styles
2006 - 2010 Dodge, Charger, All Styles
Wiring Kit Specs:
| Part Number | 118404 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
$56 88 $61.23 7% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$61.23 $56 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118404 118144 20114
- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Description
Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2005 - 2007 Chrysler, 300, Except 300 C2008 - 2014 Dodge, Challenger, All Styles
2006 - 2010 Dodge, Charger, All Styles
Wiring Kit Specs:
| Part Number | 118404 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
07 08 09 10 11 12 13 14 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 05-07 Chrysler 300 08-14 Challenger 06-10 Charger Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118404
Tools Required:
- Drill with a 3/32” drill bit
- Phillips head screwdriver
Step-by-Step Instructions:
-
Locate the Vehicle Wiring:
- Open the trunk and remove the plastic wing nuts located behind each taillight.
- Pull back the carpet to expose the vehicle's taillight wiring.
-
Driver’s Side Connection:
- Disconnect the vehicle's wire harness from the driver’s side taillight socket by sliding the red locking tab to the unlocked position.
- Plug the T-Connector with the yellow wire between the vehicle's wiring harness and taillight socket.
- Ensure all connectors are fully inserted and the locking tabs are secure.
-
Passenger’s Side Connection:
- Route the T-Connector with the green wire along the threshold to the passenger’s side of the vehicle.
- Push the wiring between the vehicle body and the carpet.
- Repeat the connection process for the passenger’s side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Reassembly:
- Reinstall the carpet, plastic wing nuts, and any other clips or panels removed during installation.
- Be careful not to cut or pinch the wires during reassembly.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
Specifications:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Do not exceed the towing manufacturer’s rating or the unit specifications.
- Overloading circuits can cause fires.
- Ensure all connections are secure and properly tested.
Manufacturer Notes:
- Read and follow all warnings and instructions provided.
- Refer to the vehicle owner’s manual for additional guidance.
