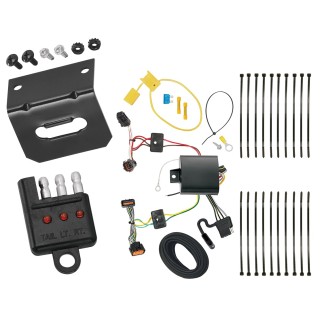

Trailer Wiring and Bracket w/ Light Tester For 17‑22 KIA Sportage All Styles Plug & Play 4‑Flat Harness
Model: 118698 118144 20114Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2017- 2022 KIA, Sportage, All Styles
Direct Plug & Play Wiring Kit
Wiring Kit Specs:
Part Number | 118698 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Part Number | 20114 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
Warranty | 1 Year |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 19 20 21 22 2017 2018 2019 2020 2021 2022
$105 88 $158.80 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$158.80 $105 88
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $26.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118698 118144 20114
- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Circuit Protected | Yes |
Hardware Included | Yes |
Harness Type | 4-Way Flat (Vehicle Side) |
Terminal Quantity | 4 |
Universal Or Specific Fit | Specific Fit |
Wire Colors | Brown, Green, Yellow, White |
Wire Quantity | 4 Wires |
Be the first to ask a question.
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2017- 2022 KIA, Sportage, All Styles
Direct Plug & Play Wiring Kit
Wiring Kit Specs:
Part Number | 118698 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Part Number | 20114 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
Warranty | 1 Year |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 19 20 21 22 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 17-22 KIA Sportage All Styles Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-One® T-Connector for Kia Sportage
Part Numbers:
- 118698
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Driver-Side Taillight:
- Open the rear hatch.
- Remove the two screws holding the driver-side taillight assembly.
- Pull the taillight housing directly rearward to remove it.
- Set the taillight housing aside.
-
Access the Underbody Panel:
- Underneath the rear of the vehicle on the driver’s side, locate the plastic appearance panel.
- Use a trim panel puller to remove the clips holding it in place.
- Remove the plastic nuts to take off the panel and set it aside.
-
Locate the Vehicle’s Wiring Harness:
- Underneath the rear of the vehicle on the driver’s side, locate the wiring harness.
- Disconnect the connector carefully to avoid damaging the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-One® Harness:
- Plug the T-Connector with the yellow and green wires into the vehicle’s matching connector.
- Ensure all connections are fully inserted and the locking tabs are secure.
-
Ground the White Wire:
- Find a suitable grounding point near the connector.
- Clean the area to remove dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the T-Connector to the Taillight Pocket:
- Route the T-Connector with the red and brown wires up to the driver’s side taillight pocket.
- Plug the T-Connector into the vehicle’s mating connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
- Reassemble the taillight assembly.
-
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
- Attach the provided black wire and route it along the vehicle’s frame to the engine compartment, avoiding areas that may pinch or damage the wire.
Warning: Avoid routing near hot pipes, heat shields, or the fuel tank.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
-
Mount the Black Box Module:
- Find a flat surface in an out-of-the-way location and mount the black box to prevent damage or rattling.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.
-
Replace the Appearance Panel:
- Reinstall the appearance panel and any clips removed during installation.
-
Route the 4-Flat Connector:
- Route the 4-flat harness to the center of the vehicle.
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
