Trailer Wiring Harness Kit For 11‑20 Dodge Grand Caravan 11‑16 Chrysler Town & Country 21‑23 Grand Caravan 12‑15 RAM C/V Tradesman Plug & Play

Name: Trailer Wiring Harness for Chrysler Town & Country, Dodge Grand Caravan, RAM C/V
Brand: Tekonsha
Price: 75.08 USD
Availability: InStock
Rating: 5 (1 reviews)

Model: 118534

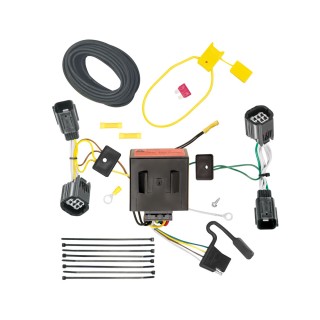

Includes Everything Pictured:
Wiring Harness (Plug & Play)
Installation Instructions

Fits The Following Vehicles

2011 - 2016   Chrysler, Town & Country, All Styles
2011 - 2020    Dodge, Grand Caravan, All Styles
2021 - 2023 Chrysler, Grand Caravan, All Styles
2012 - 2015   RAM, C/V, Tradesman

Wiring Kit Specs:

Part Number	118534
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:

11 12 13 14 15 16 17 18 19 20 21 22 23 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023

See Full Description

$75 ⁰⁸ $112.03 33% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$112.03 $75 ⁰⁸

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $18.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118534
UPC: 016118109610
Includes: T-One T-Connector Custom Harness

Compatibility Chart

Specification
Circuit Protected	Yes
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

File	Size
Trailer Hitch Wiring Instructions	888.77KB	Download

Description

Includes Everything Pictured:
Wiring Harness (Plug & Play)
Installation Instructions

Fits The Following Vehicles

2011 - 2016   Chrysler, Town & Country, All Styles
2011 - 2020    Dodge, Grand Caravan, All Styles
2021 - 2023 Chrysler, Grand Caravan, All Styles
2012 - 2015   RAM, C/V, Tradesman

Wiring Kit Specs:

Part Number	118534
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Tags: 118534 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , Chrysler , Town , Country , Tekonsha , Trailer , Wiring , Harness

Get Expert Help

Trailer Wiring Harness Kit For 11-20 Dodge Grand Caravan 11-16 Chrysler Town & Country 21-23 Grand Caravan 12-15 RAM C/V Tradesman Plug & Play Install Notes

Installation Instructions for T-Connector Adapter for Chrysler Town & Country

Part Numbers:

118534

Tools Required:

Torx-30
Trim Panel Remover
10mm Socket & Ratchet or 10mm Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Wire Crimpers
Wire Cutters
Phillips Head Screwdriver
Test Probe

Step-by-Step Instructions:

Remove the Taillight Assemblies:
- Open the rear tailgate to access the screws securing the taillights.
- Remove the T-30 Torx screws and carefully pry the taillight housings rearward, avoiding damage to the alignment tabs.
Disconnect the Wiring Harness:
- Behind each taillight housing, locate the connection points matching the T-Connector adapter ends.
- Separate the vehicle’s wiring connectors, being careful not to damage the locking tabs.
- Insert the T-Connector end with the yellow wire on the driver’s side between the vehicle wiring connectors and lock into place.
Route the Harness:
- On the driver’s side, route the T-Connector harness containing the green wire and the 4-flat connector down the opening behind the taillight.
- Route the 4-flat connector to the center of the vehicle and the green wire underneath to the passenger side.
Warning:
- Avoid routing near hot pipes, heat shields, the fuel tank, or areas where the wire could be pinched or broken.
Install the Passenger-Side T-Connector:
- Repeat Step 2 on the passenger side using the T-Connector with the green wire.
Ground the White Wire:
- Locate a suitable grounding point near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle or personal damage.
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-Connector box and attach it to the supplied black wire.
- Route the black wire through the taillight socket, behind the bumper, and along the frame to the engine compartment.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched or damaged.
Connect to the Vehicle Battery:
- Disconnect the negative (-) battery terminal.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
Mount the Black Box:
- Mount the T-Connector’s black box using the provided double-sided tape.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
- Secure the remaining harness with cable ties.
Test the Installation:
- Test the T-Connector with a test light or trailer. Ensure all connections are complete for proper functionality.
Reinstall the Taillights:
- Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)

Safety Notes:

Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
Always wear safety glasses and follow all safety precautions.

Manufacturer Notes:

Refer to the vehicle owner’s manual and instruction sheet for additional details.
