Ultimate Class 5 10K Tow Package For 00-02 Chevy Express GMC Savana Van Trailer Hitch w/ Wiring Dual 2" and 2-5/16" Ball 2" Drop Mount Lock Bracket Cover 2" Receiver

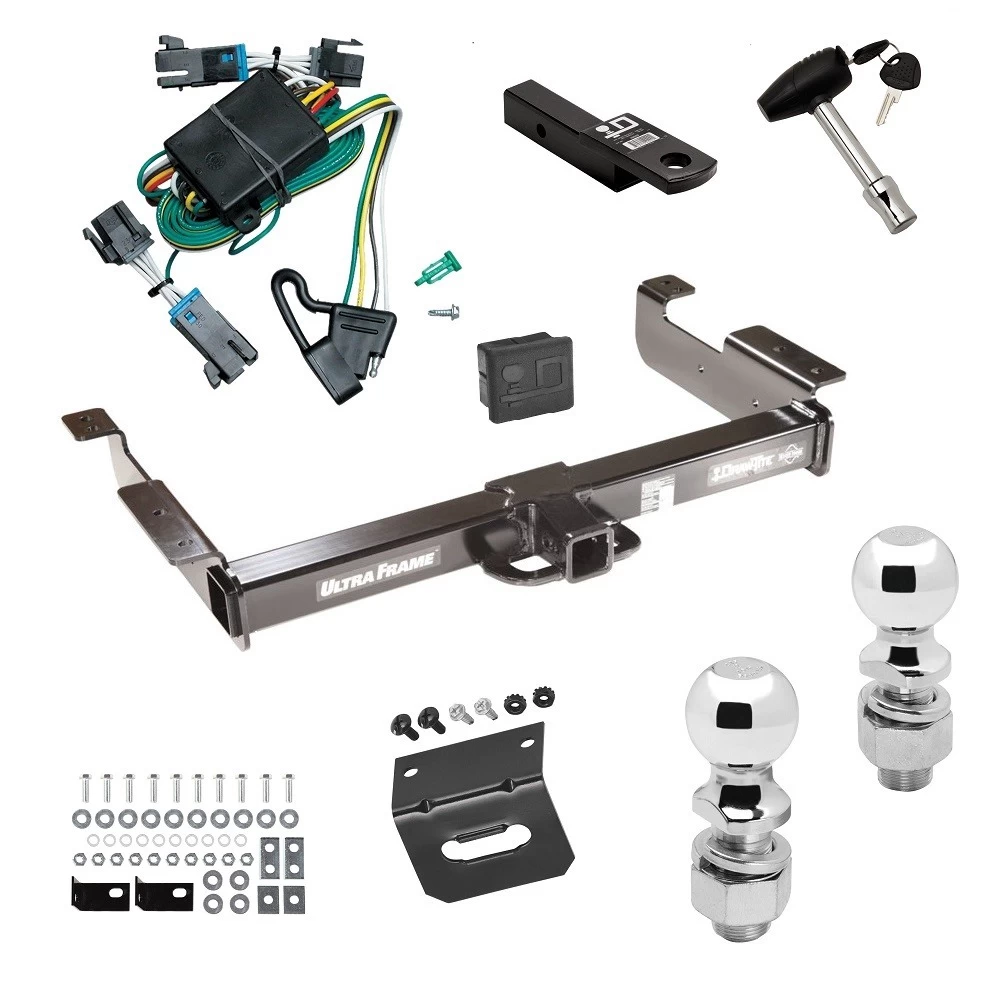

Includes Everything Pictured:

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
Security Lock Pin & Key
2-5/16" and 2" Chrome Ball
4-Flat Mounting Bracket
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2000 - 2002     Chevrolet, Express 1500, All Styles
2000 - 2002     Chevrolet, Express 2500, All Styles
2000 - 2002     Chevrolet, Express 3500, All Styles
2000 - 2002     GMC, Savana 1500, All Styles
2000 - 2002     GMC, Savana 2500, All Styles
2000 - 2002     GMC, Savana 3500, All Styles

Trailer Hitch Specs:





Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	8-1/2" From Center of Pin Hole to Center of Ball Hole
Towing Capacity in Rise Position	10,000 lb Gross Towing Weight 1,000 lb Tongue Weight
Drop	2" From inside top of hitch opening
Towing Capacity in Drop Position	10,000 lb Gross Towing Weight 1,000 lb Tongue Weight
Ball Hole Diameter	1-1/4"
Rise	3/4"
Warranty	Limited Lifetime



Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime



Hitch Ball Specs:

Part Number	63836
Brand	Draw-Tite
Size	2-5/16" x 1-1/4" x 2-3/4"
Towing Capacity	14,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 450 ft. lbs
Ball Hole Diameter	1-1/4"
Warranty	Lifetime



Hitch Ball Specs:

Part Number	63830
Brand	Draw-Tite
Size	2" x 1-1/4" x 2-3/4"
Towing Capacity	8,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 450 ft. lbs
Ball Hole Diameter	1-1/4"
Warranty	Lifetime



4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year



Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 00 01 02 2000 2001 2002
