Ultimate Class V 10K Tow Package For 00-02 Chevy Express GMC Savana Van Trailer Hitch w/ Wiring Dual 2" and 2-5/16" Ball 2" Drop Mount Lock Bracket Cover 2" Receiver Reese
$415.54
- Stock: In Stock
- Brand: Reese
- Model: 96946 118377 21330 580407 63836 63830 118144 7000600

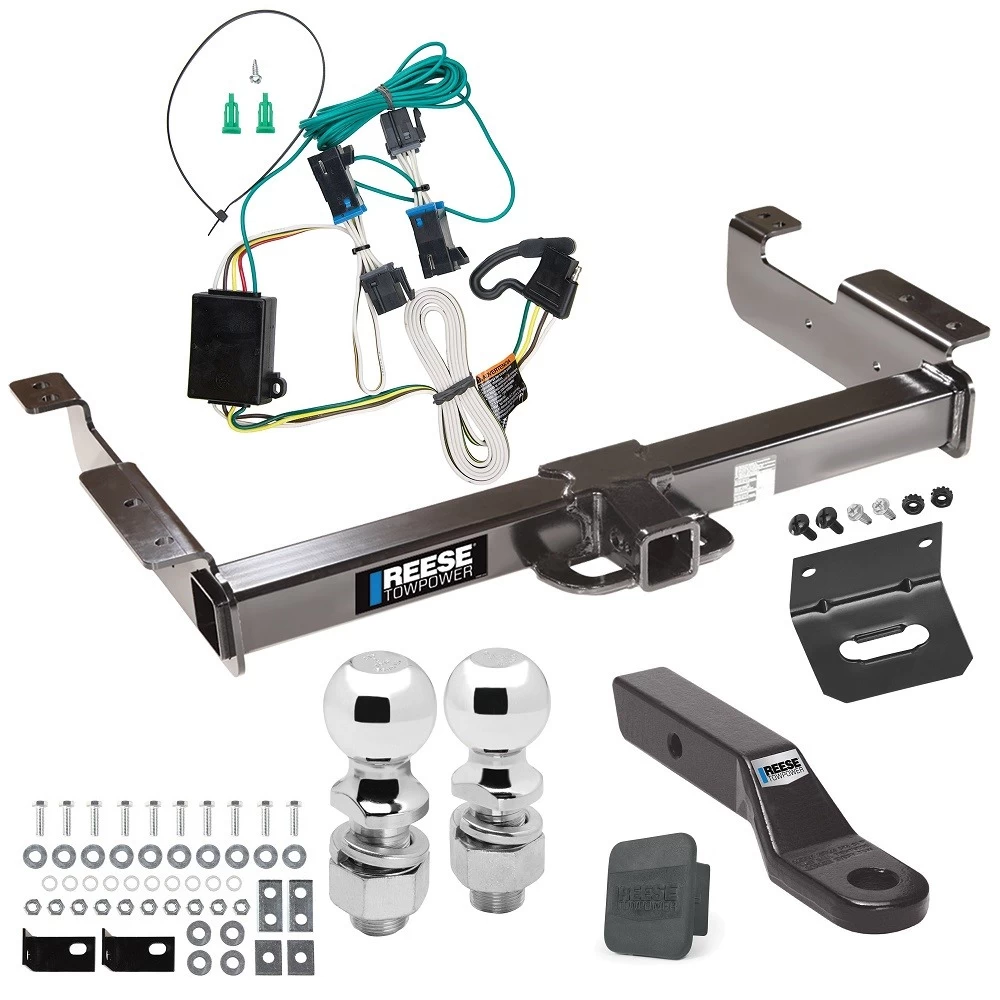

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
Security Lock Pin & Key
2-5/16" and 2" Chrome Ball
4-Flat Mounting Bracket
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
Security Lock Pin & Key
2-5/16" and 2" Chrome Ball
4-Flat Mounting Bracket
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2002 Chevrolet, Express 1500, All Styles
2000 - 2002 Chevrolet, Express 2500, All Styles
2000 - 2002 Chevrolet, Express 3500, All Styles
2000 - 2002 GMC, Savana 1500, All Styles
2000 - 2002 GMC, Savana 2500, All Styles
2000 - 2002 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 96946 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,500/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118377 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
REESE Towpower heavy duty forged ball mounts are designed and manufactured as a solid weld free solution for heavy duty applications where high gross towing weight capacity is required.
Ball Mount Specs:
| Part Number | 21330 |
| Brand |
Reese Towpower |
| Class | 5 |
| Finish | Black powder coat |
| Towing Capacity |
16000 lbs |
| Fits | 2" Reciever |
| Drop |
2" |
| Rise | 4" |
| Ball Hole Size | 1-1/4" |
| Shank Length | 8-1/2" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63830 |
| Brand | Draw-Tite |
| Size | 2" x 1-1/4" x 2-3/4" |
| Towing Capacity | 8,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
4-Flat Mounting Bracket
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Rubber Hitch Plug Specs:
| Part Number | 7000600 |
| Fits | 2" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
